Caixa de válvulas Gardena V3

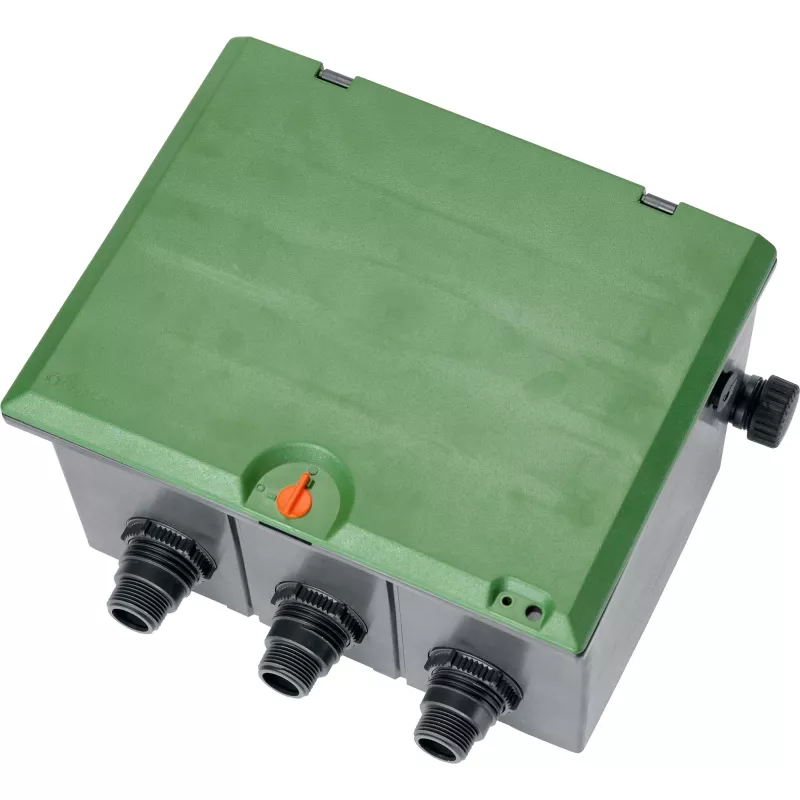

The GARDENA Valve Box V3 is an underground junction box designed to house up to three irrigation valves (either three 24 V valves or three 9 V valves). Made in GARDENA’s typical black, green and grey design, the box provides a compact and weather-resistant solution for organizing valve installations and cable connections in an irrigation system.

Advantages

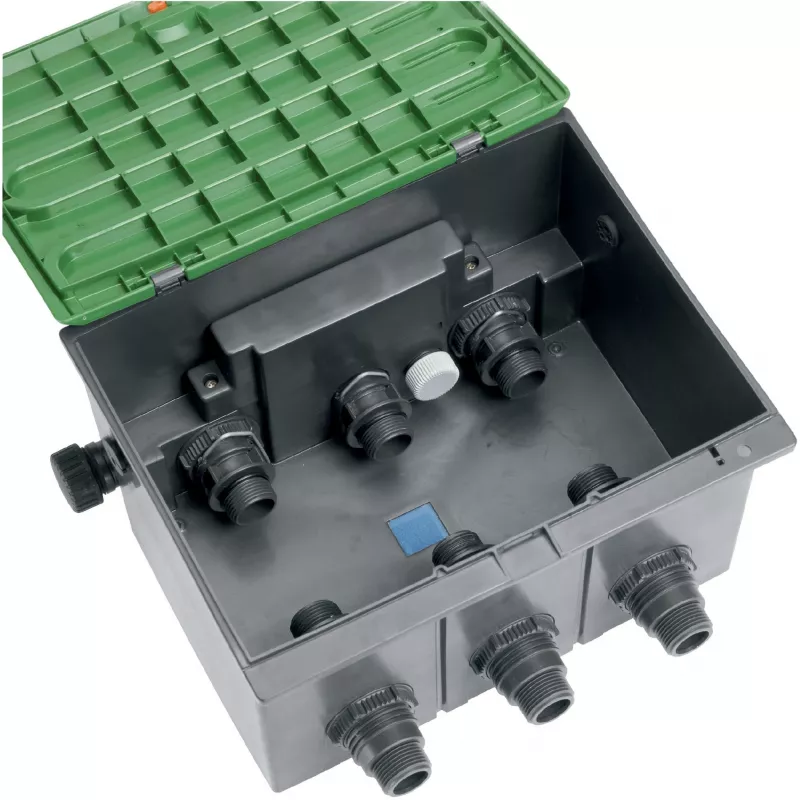

The valve box allows water supply from three different sides, offering flexible plumbing options during installation. A telescopic screwed connection simplifies mounting and removal of the irrigation valves. The junction box is waterproof and enables tidy, safe 24 V cable connections. A central drain cap permits emptying the supply line before frost to protect the system. The cover can be locked for child safety.

Suitable for

• Underground installation of up to three irrigation valves (24 V or 9 V)
• Organizing valve locations in domestic garden irrigation systems
• Situations requiring flexible water inlet positions

Key specifications

• Brand: GARDENA
• Model: Valve Box V3
• MPN: 1255-20
• EAN: 4078500125505
• Capacity: up to three irrigation valves (three 24 V or three 9 V)
• Features: waterproof junction box, telescopic screwed connection, central drain cap, lockable cover

How to use

Place the Valve Box V3 in the prepared underground location and connect the water supply from one of the three available sides. Mount the irrigation valves using the telescopic screwed connection and route the 24 V cables into the waterproof junction area for tidy connection. Use the central drain cap to empty the supply line before freezing temperatures. Close and lock the cover for child safety.

Recommendations

Drain the supply line using the central drain cap before the first frost; ensure cable connections are made while power is off and use the lock to prevent unauthorized access.
