Caixa para conector Harting HAN 16 A-gs-M25 19200160546 IP65

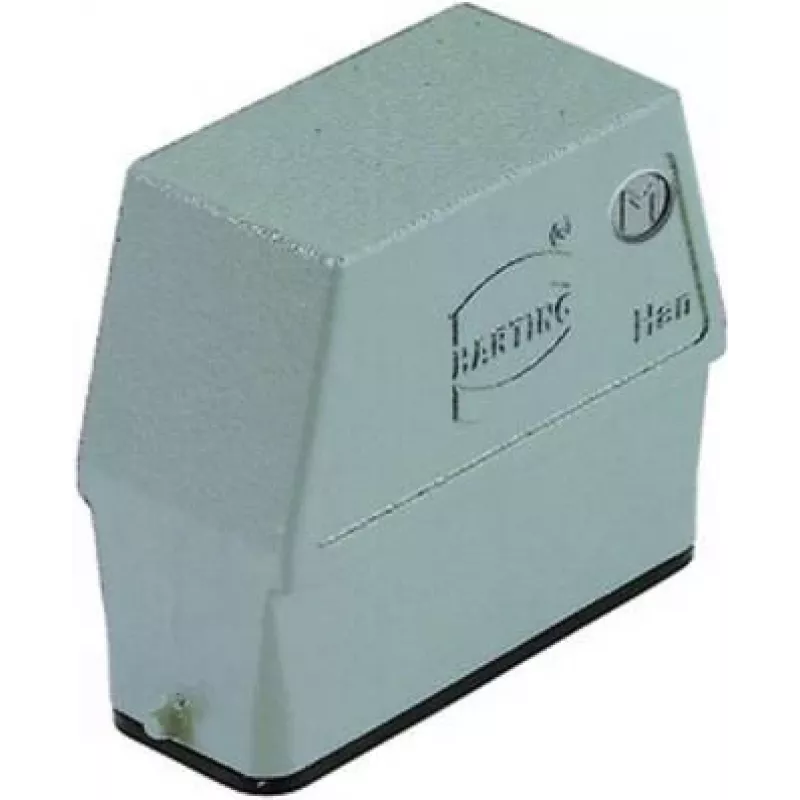

Connector housing Harting HAN 16 A-gs-M25 19200160546 IP65 is a protective enclosure designed to accommodate HAN 16 A rectangular connector inserts and to provide a secure housing for cable entry via an M25 interface. Built for industrial applications, this housing offers dust-tight and water-resistant protection to preserve connector contacts and internal wiring when mounted on panels or equipment enclosures.

Advantages

The housing delivers IP65 ingress protection, ensuring resistance to dust and low-pressure water jets. Its form factor matches HAN 16 A series inserts and supports a standard M25 cable gland, simplifying cable routing and strain relief. The robust construction provides mechanical stability for connector contacts and helps streamline maintenance by allowing straightforward access to wiring and inserts.

Suitable for

• Industrial automation cabinets and control panels
• Machine tool and production line equipment
• Field junction boxes and mounted equipment requiring sealed connections
• Applications needing easy access to connector inserts for maintenance

Key specifications

• Ingress protection: IP65 (dust-tight, water-resistant against low-pressure jets)
• Compatible connector series: HAN 16 A rectangular inserts
• Cable gland interface: M25 for cable entry and strain relief
• Mounting type: panel or equipment front mounting
• Material characteristics: durable industrial-grade housing suitable for routine industrial environments

How to use

Mount the housing to the panel or equipment front using the designated cutout and fasteners. Install the appropriate HAN 16 A insert into the housing, route cables through an M25 cable gland and secure the gland to ensure correct strain relief and sealing. Connect wiring to the insert according to the electrical diagrams, then close and secure the housing to restore the IP65 protection rating.

Recommendations

Verify cable diameter compatibility with an M25 gland and tighten the gland according to the manufacturer’s torque guidance. Ensure correct alignment and seating of the connector insert before securing the housing to maintain contact reliability and sealing performance.
