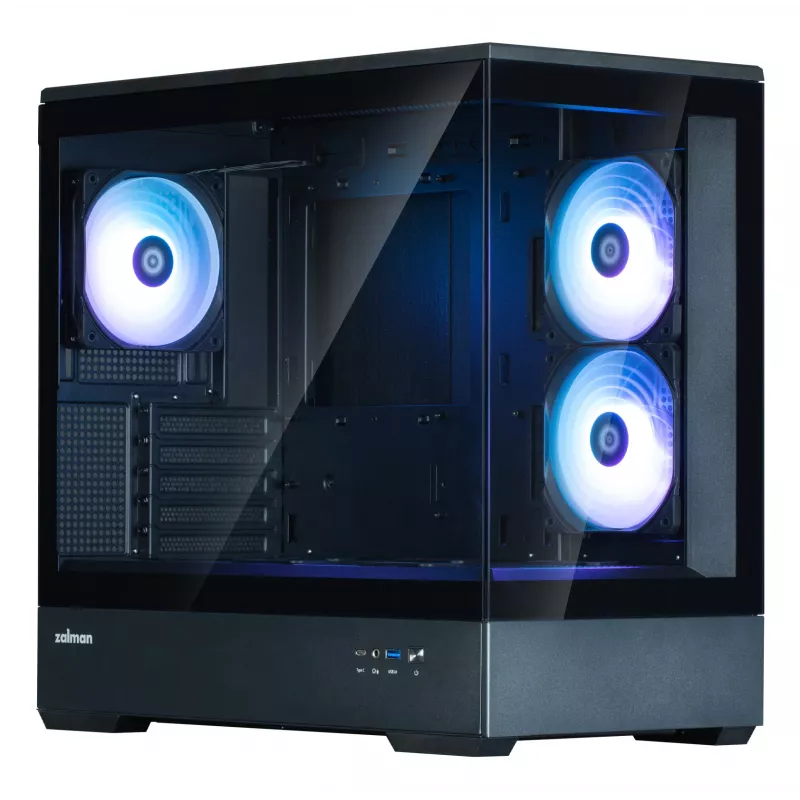

Caixa para PC Zalman P30 preta V2 Mini Tower

Modern and Clean Asethetic

Designed for maximum desk appeal showcasing components

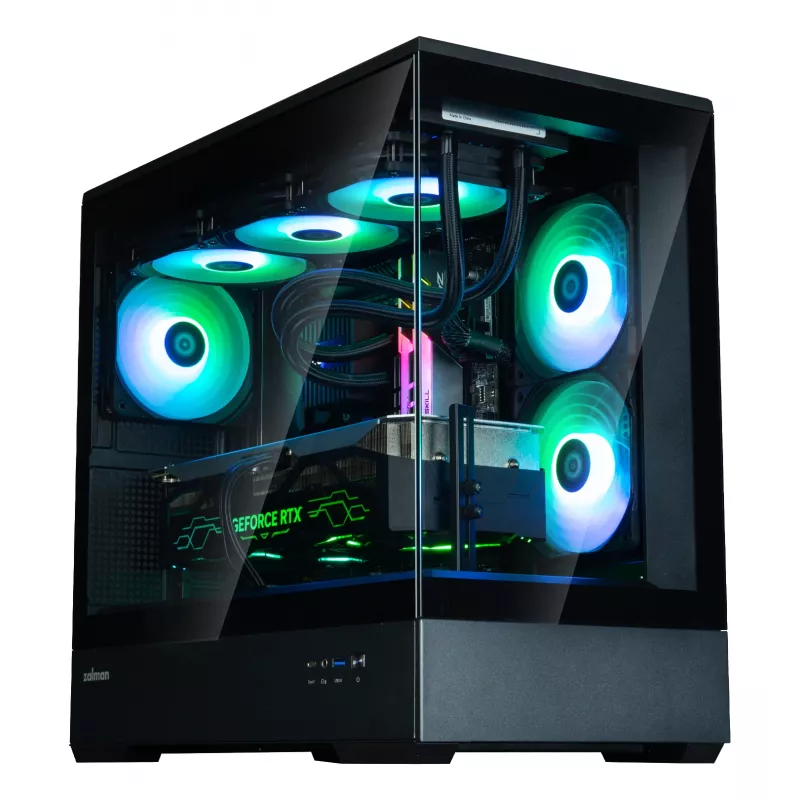

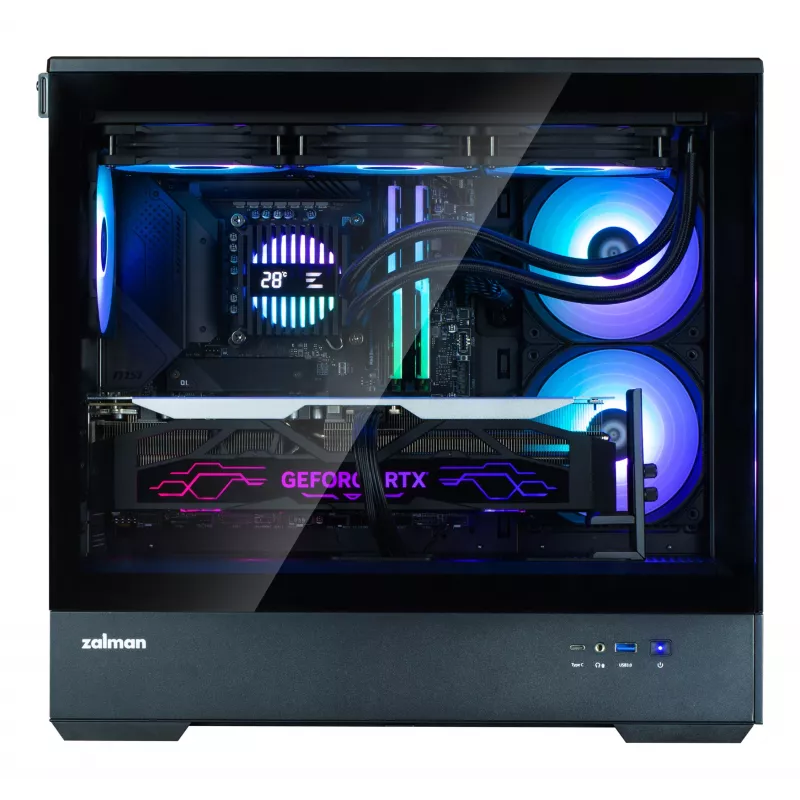

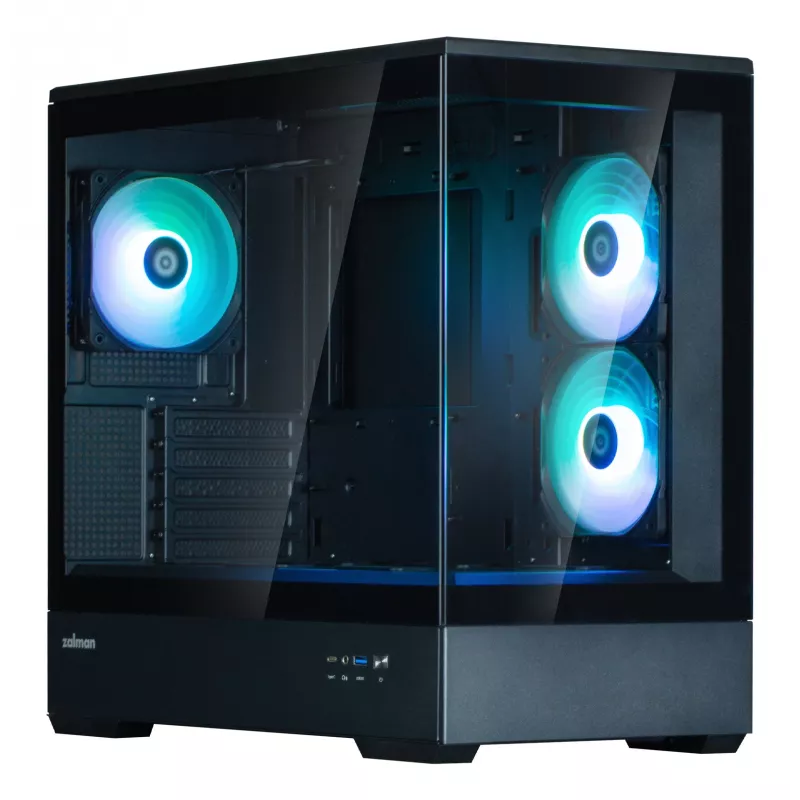

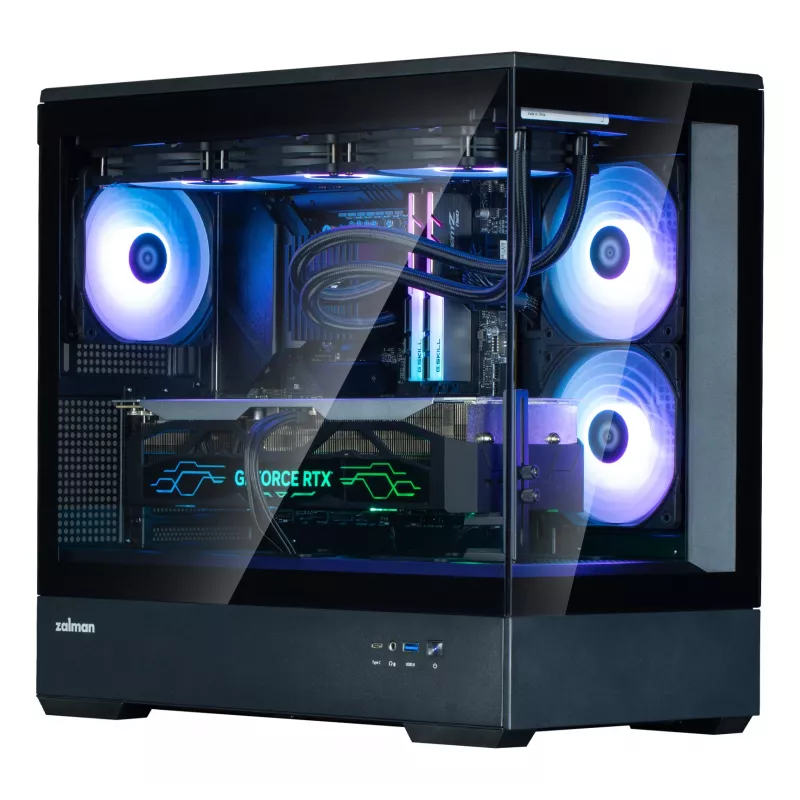

Panoramic View with Seamless Tempered Glasses
Two frameless front and side tempered glasses showing unique PC build

Tool-Free Tempered Glasses
The front and side panels can be easily and completely removed for convenient access to PC components
- Tool-free ball head structured front and side tempered glass enhances user's convenince
- Easy panel management with groove fixing structure at the bottom of the tempered glass

Easy accessible I/O ports
- USB Type-C
- Microphone / Headphone
- USB 3.0
- Power

Maximized Ventilation and Airflow
- Pre-installed ZM-AF120 3 x 120mm addressable RGB fans provide full customization via a 3-pin header connection.
Rear (ZM-AF120)/Side (ZM-AF120R)
- Dimensions : 120 x 120 x 26(T)mm
- Rated Voltage : 12V DC (LED : 5V)
- Fan Speed : 600~1,500RPM±10%
- ZM-AF120 Max Air Flow : 53.72CFM±10%
- ZM-AF120R Max Air Flow : 46.6CFM±10%
- Bearing Type : Hydro Bearing
- Connector : 4-Pin (12V) / LED 3-Pin (5V)

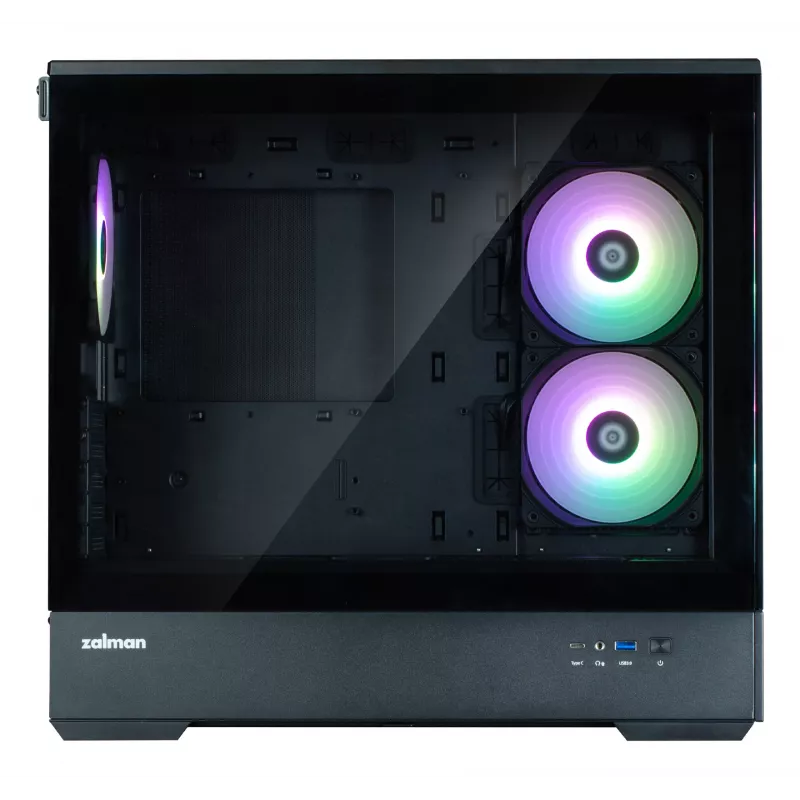

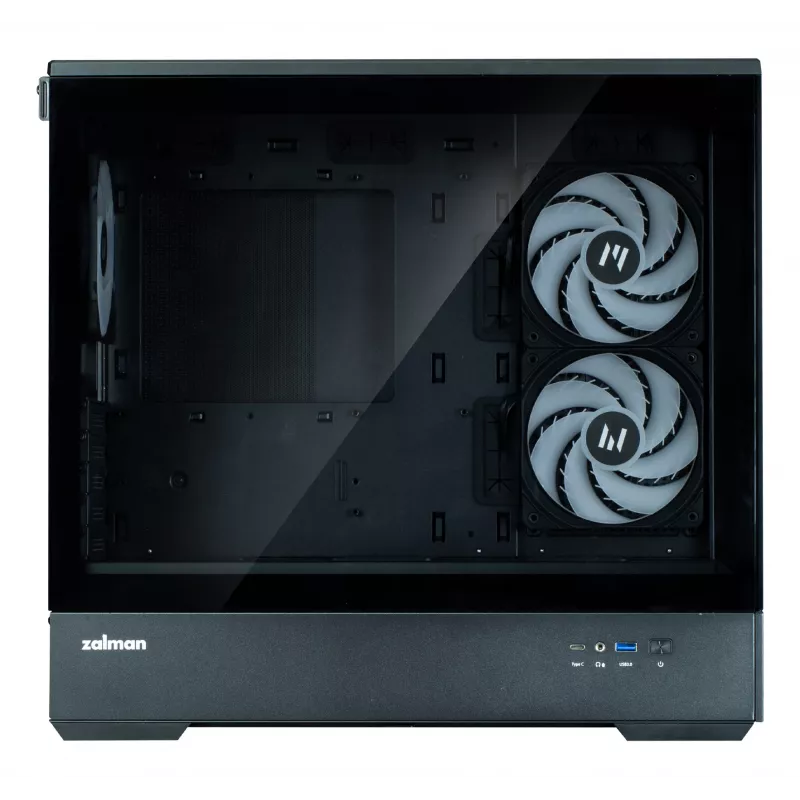

- Two 120mm reverse fans on the side effectively pull fresh air from the outside into chassis, while the rear fan blows hot air out to maximize air flow and cooling performance.

Radiator Configuration
- Top : 120mm / 140mm / 240mm / 280mm / 360mm
- Rear : 120mm / 140mm
Fan Support
- Top : 3 x 120 mm / 2 x 140mm
- Rear : 1 x 120mm / 1 x 140mm
- Bottom : 3 x 120mm / 2 x 140mm
- Side : 2 x 120mm
Motherboard Support
- Mini- ITX
- mATX

Dedicated GPU Bracket included
Prevents GPU card bending Supports various GPU cards according to height adjustment

Intuitive Cable Management Layout
Convenient cable management layout makes it easier than ever to organize messy cables for a clean look
& Rubber grommets included for Clean Cable Management

Excellent Expandability and Convenience
The P30 has plenty of space to offer upgraded performance features, compatibility with high-end PC components, and even custom liquid cooling

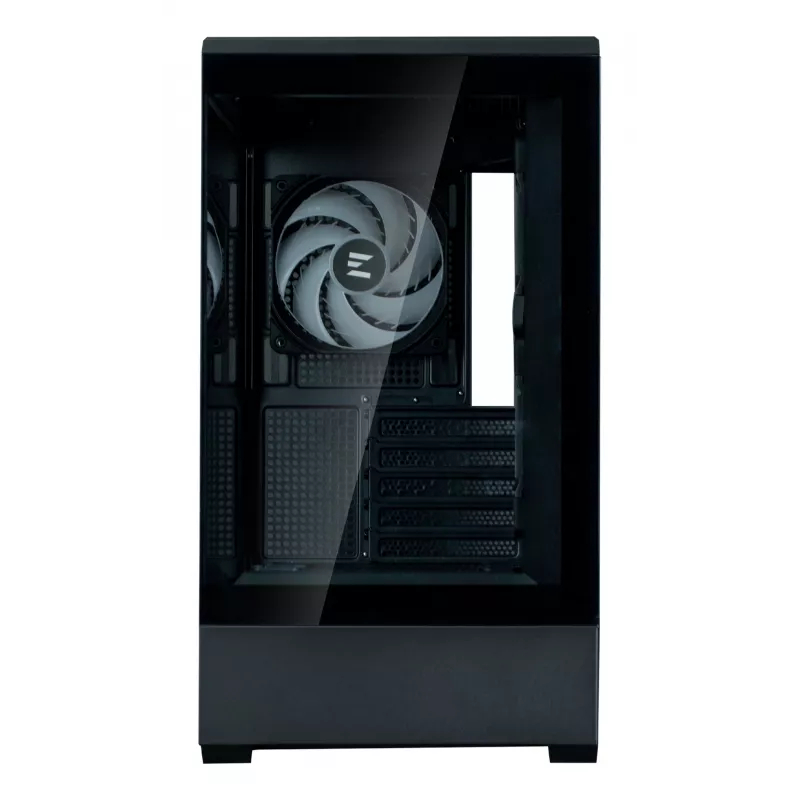

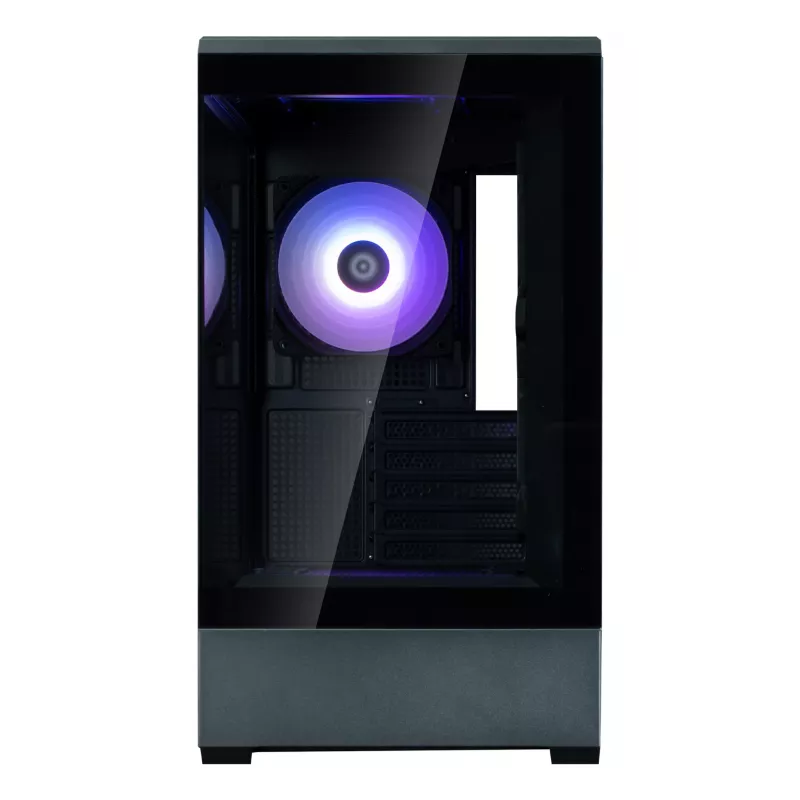

Rear Layout
- Side Panel Handle
- Rear Hand Screw
- Rear 120mm ARGB fan (Pre-installed)
- PCI Slots x 5
- Rear Air vent
- PSU Slot

Zalman P30 V2. Form factor: Mini Tower, Type: PC, Product colour: Black. Side fans installed: 2x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 235 mm, Depth: 453 mm, Height: 429 mm

How to use

Install a compatible Mini‑ITX or Micro‑ATX motherboard and mount storage drives into the appropriate 2.5" or 3.5" bays. Use the tool‑free ball‑head mechanism to remove the front and side tempered glass panels for unobstructed access during component installation or maintenance. Connect the preinstalled 3‑pin header for the addressable RGB fans to your motherboard or controller to customize lighting and fan behavior. Route cables through the provided rubber grommets and the intuitive cable management layout to maintain a clean interior.

Recommendations

For best cooling and dust protection, keep the magnetic dust filters clean, use the two side intake fans for fresh airflow, and secure cables through the rubber grommets to maintain unobstructed circulation and a tidy appearance.
