Calha de montagem Schroff 30225-089

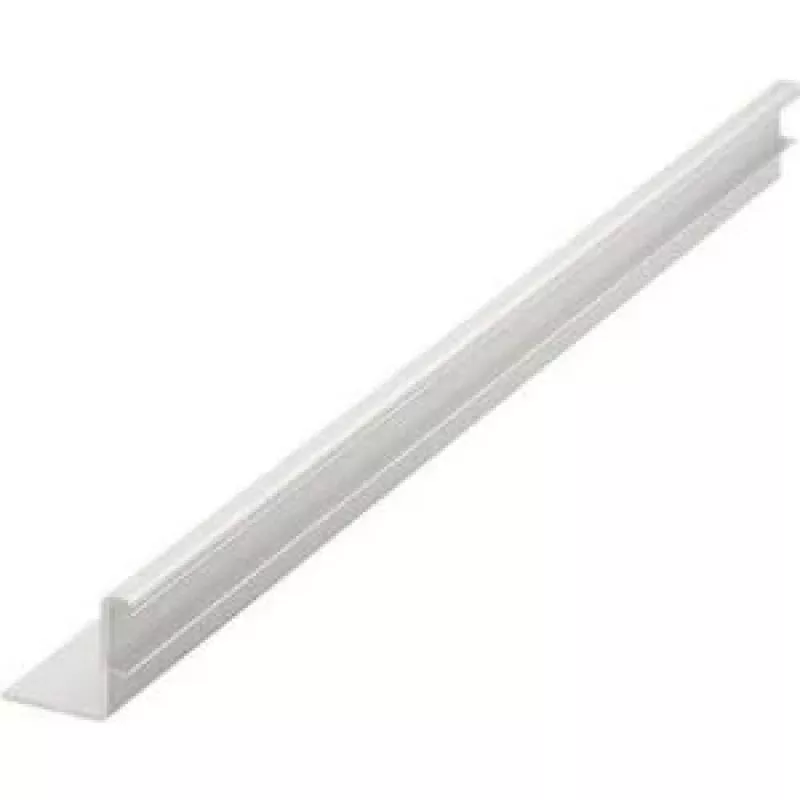

The Schroff 30225-089 mounting bar is designed to support and organize 19" subracks and 19" chassis in equipment racks. Manufactured from durable aluminum with a 300 mm depth and white finish, this single-piece mounting bar is intended for secure installation in rack systems. Two slide rails or mounting bars are required per subrack or 19" chassis; note that standard slide rails cannot be used with shielded 19" subracks — special slide rails are available on request.

Advantages

The mounting bar offers a robust aluminum construction that balances strength and light weight, and a standardized 300 mm depth suitable for many rack layouts. Its white finish provides a neutral appearance for professional environments. Supplied individually, the bar allows buyers to order the exact number needed for their installation.

Suitable for

• Supporting 19" subracks
• Mounting 19" chassis in racks
• Organizing equipment in server rooms, telecom cabinets, and test racks

Key specifications

• Brand: SCHROFF
• Model / MPN: 30225-089
• Material: Aluminum
• Depth: 300 mm
• Color: White
• Sold as: Single unit
• EAN: 2050000595677

How to use

Install the mounting bar into a compatible 19" rack at the required U position, fastening it securely with appropriate rack screws. Use two mounting bars (one per side) to support a single 19" subrack or chassis. Ensure alignment and level before tightening all fasteners to maintain stable support for installed equipment.

Recommendations

Do not use standard slide rails or mounting bars with shielded 19" subracks; request special slide rails when installing shielded enclosures. Verify you have two bars per subrack/chassis and use rack-compatible fasteners rated for the equipment weight.
