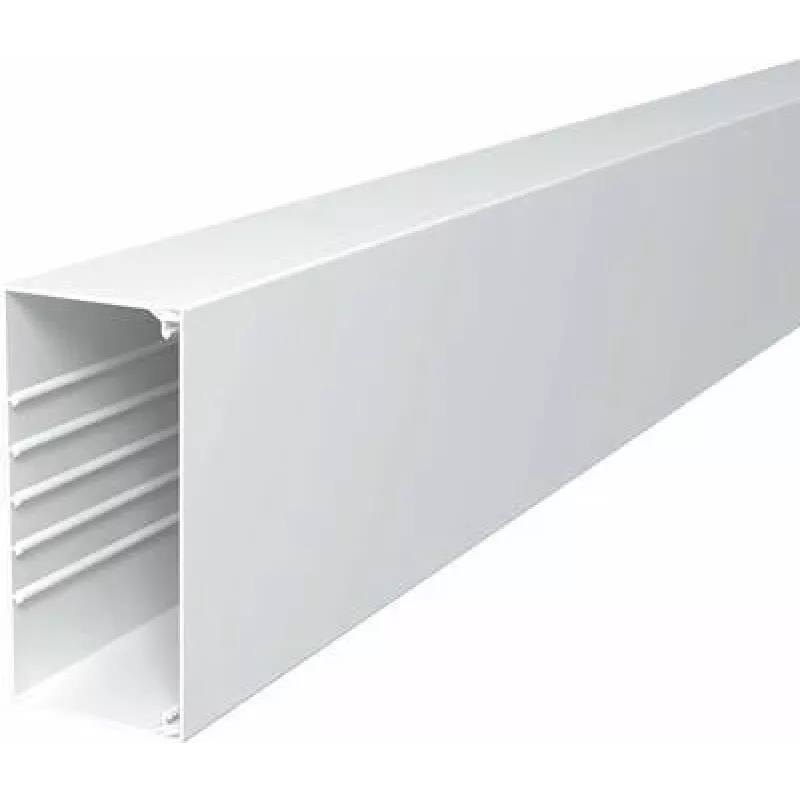

Calha de parede e teto para cabos OBO BETTERMANN WDK80170RW 80x170x2000mm PVC branco-puro RAL 9010 6191304

Unlike standard cable ducts that force you to choose between capacity and clean lines, the OBO BETTERMANN WDK80170RW integrates a pre-perforated base with a clip-on lid, so you get fast cable insertion and a seamless look without extra drilling. This 2-metre trunking section in pure white (RAL 9010) is built for installers who want a robust, self-extinguishing PVC channel that mounts equally well on walls or ceilings.

Highlights

• Generous 80 x 170 mm internal cross-section for high-volume cable routing
• Base perforation speeds up fixing and cable entry
• Clip-on lid snaps shut securely, yet opens easily for maintenance
• Pure white RAL 9010 finish blends into modern interiors
• Self-extinguishing PVC for added fire safety (Class E per EN 13501-1)
• Impact resistance IK07 and IP30 protection for everyday environments

In daily use

Plan your cable path, fix the perforated base to the wall or ceiling, lay in your cables, and press the lid into place. The clip-on design means you can reopen the duct at any time to add or remove cables without damaging the profile. The smooth, untreated surface is easy to wipe clean and resists discolouration in normal indoor conditions.

Full specifications

• Brand: OBO BETTERMANN
• Model: WDK80170RW
• MPN: 6191304
• EAN: 4012195042273
• Product type: Cable duct / trunking
• Mounting: Wall and ceiling
• Material: PVC (polyvinyl chloride)
• Colour: Pure white (RAL 9010)
• Dimensions (H x W x L): 80 x 170 x 2000 mm
• Base perforation: Yes
• Number of compartments: 1
• Lid type: Clip-on / push-on
• Halogen-free: No
• Self-extinguishing: Yes
• Temperature range: -5 °C to +60 °C
• Protection class: IP30
• Impact resistance: IK07
• Surface treatment: Untreated
• Suitable for functional integrity (E30/E90): No
• Suitable for outdoor use: No
• Fire behaviour classification (EN 13501-1): Class E

Final note

For electricians and facility managers who need a dependable, high-capacity cable management solution, the WDK80170RW delivers straightforward installation and long-term performance in a clean white finish.
