Calha para rack EQUIP EZR-DIN-3 — 19 polegadas (48,3 cm) 3HE DIN, RAL7035 cinzento, largura 485 mm, profundidade 150 mm

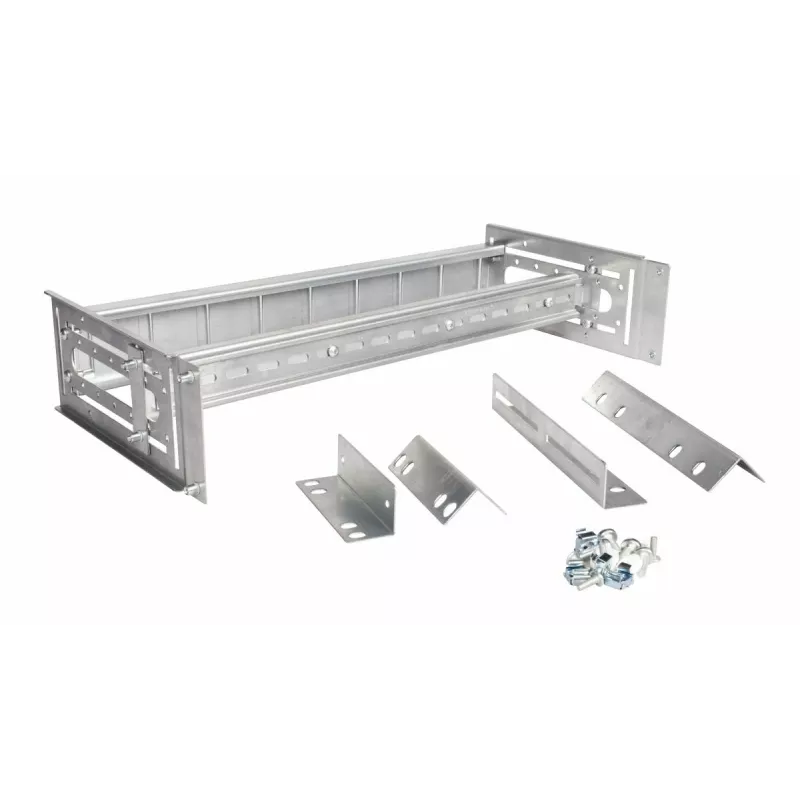

EQUIP EZR-DIN-3 is a 19" (48.3 cm) rack rail engineered for mounting 3U DIN-compatible equipment. Finished in RAL7035 grey, the rail accepts devices designed for a 485 mm mounting width and provides a usable depth of 150 mm. The EZR-DIN-3 is intended for installation in standard server and network cabinets where compact DIN module mounting is required. Packaging and pallet logistics are designed to simplify storage and transport.

Advantages

The rack rail delivers a defined 3U mounting space with consistent width (485 mm) and depth (150 mm) to ensure compatibility with DIN-standard modules and devices. Its RAL7035 grey finish offers a neutral appearance that integrates with most cabinet interiors. The compact dimensions and standard 19" form factor make it suitable for dense installations and simplify inventory and shipping due to efficient packaging and pallet handling.

Suitable for

• Mounting 3U DIN equipment in 19" server and network cabinets
• DIN-compatible modules and components requiring 485 mm width and 150 mm depth
• Environments where compact rack units and efficient logistics are needed

Key specifications

• Brand: EQUIP
• Model / MPN: EZR-DIN-3
• EAN: 4015867233757
• Rack size: 19" (48.3 cm)
• Rack capacity: 3U
• Finish color: RAL7035 grey
• Mounting width: 485 mm
• Depth: 150 mm

How to use

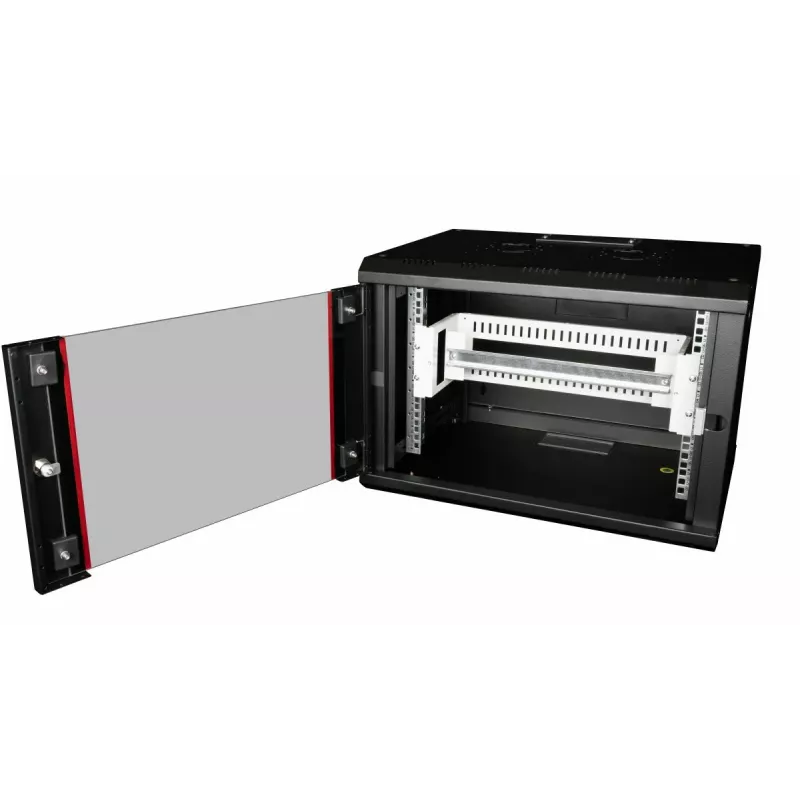

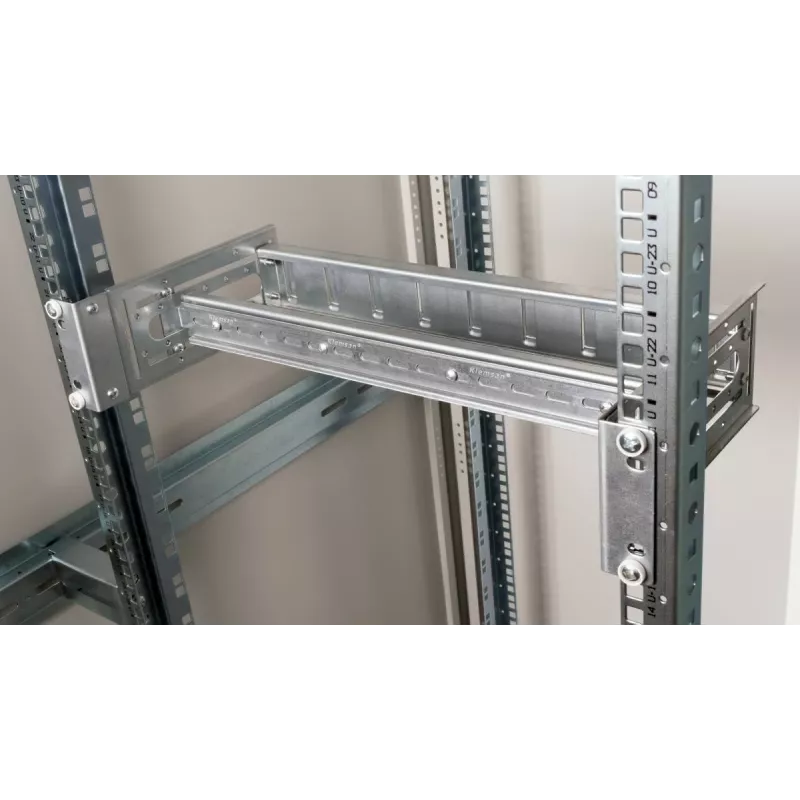

Install the EZR-DIN-3 rail into a compatible 19" cabinet or enclosure using the cabinet's standard mounting points. Align the rail to provide the specified 485 mm width and secure it according to the cabinet manufacturer's instructions. Mount DIN-compatible modules or devices within the 3U space and ensure the device depth does not exceed the 150 mm usable depth. Verify mechanical stability and grounding where applicable before powering connected equipment.

Recommendations

Verify compatibility of your devices with a 3U DIN form factor, 485 mm mounting width and 150 mm depth prior to installation. Use appropriate fasteners and follow cabinet installation guidelines to maintain structural integrity and safe operation.
