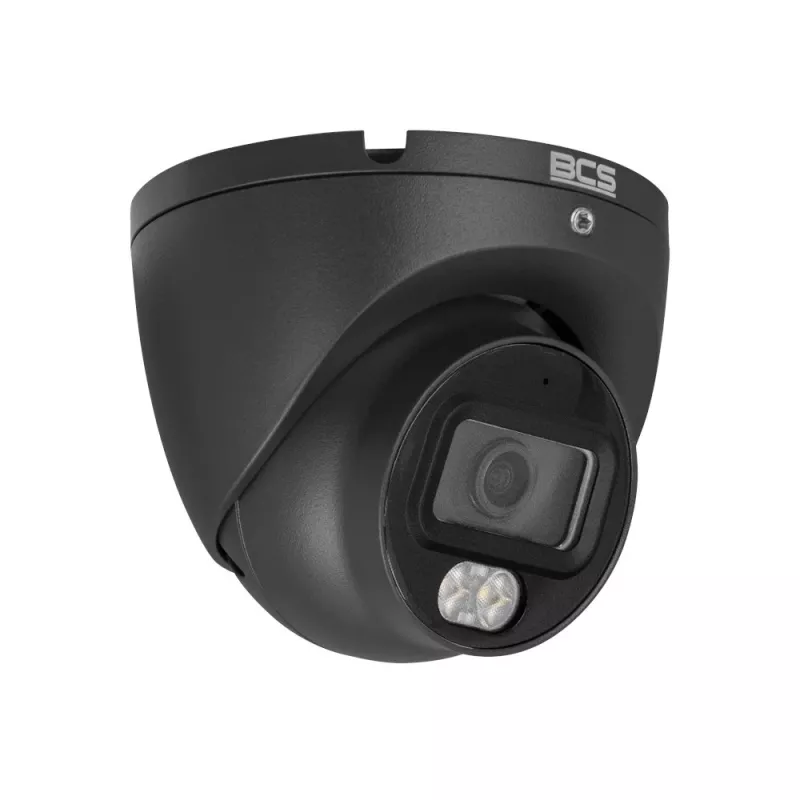

Câmara analógica HD BCS BCS-EA15FR3L3-G 5MP objetiva 2,8mm IR 30m IP66 IK10

The BCS BCS-EA15FR3L3-G is a high-performance 5 Megapixel analog HD camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor, it delivers crisp 2592x1944 resolution and supports multiple video output formats (AHD, TVI, CVI, CVBS) for flexible integration. The fixed 2.8mm lens provides a wide 98° horizontal viewing angle, ideal for monitoring large areas. With Smart IR technology, it offers up to 30 meters of night vision, ensuring clear images even in complete darkness. The camera's robust metal housing is rated IP66 for weather resistance and IK10 for vandal protection, making it suitable for both indoor and outdoor use.

Advantages

High 5MP resolution for detailed surveillance; versatile video output compatibility; excellent low-light performance with 0.005 Lux minimum illumination; durable IP66 and IK10 ratings for harsh environments; easy installation with DC 12V power and OSD menu for on-site adjustments.

Suitable for

• Outdoor perimeter monitoring
• Parking lots and entrances
• Warehouses and industrial sites
• Retail stores and offices
• Residential security

Key specifications

• Sensor: 1/2.8" CMOS, 5 MP (2592x1944)
• Lens: Fixed 2.8mm, 98° horizontal view
• IR Range: Up to 30m with Smart IR
• Video Output: AHD/TVI/CVI/CVBS switchable
• Day/Night: ICR with mechanical IR cut filter
• WDR: Digital WDR (DWDR)
• Noise Reduction: 2D/3D DNR
• Housing: Metal, IP66, IK10
• Power: DC 12V, max 4W
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a high-quality DC 12V power supply and ensure proper cable connections. The camera supports OSD menu for fine-tuning image settings. Pair with a compatible DVR or HD recorder for best results.
