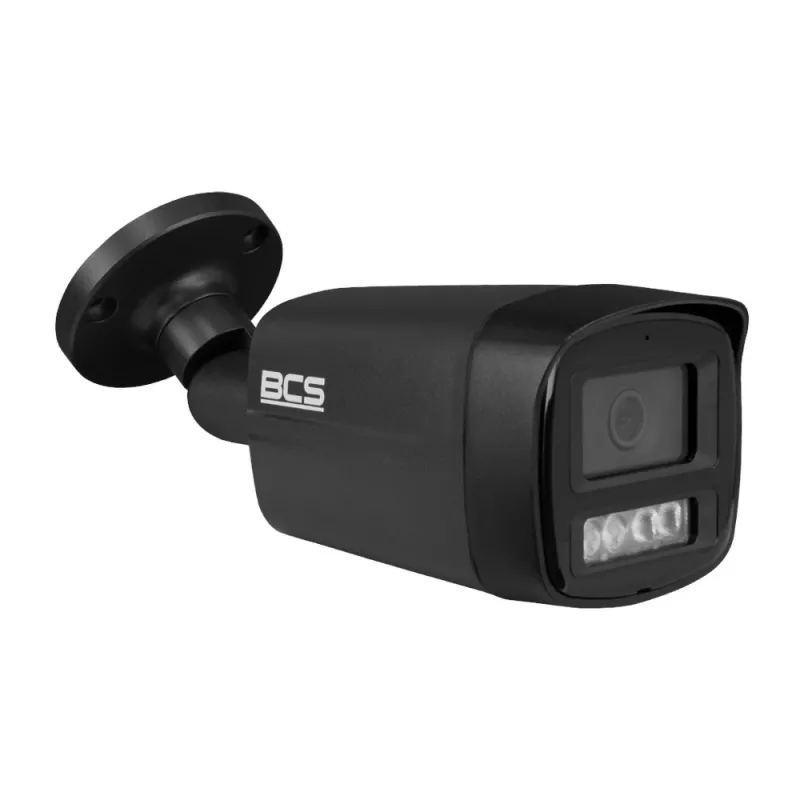

Câmara bullet Analog HD 5MP BCS BCS-TA15FR4L4-G, objetiva 3,6mm, IR 40m, IP67

The BCS BCS-TA15FR4L4-G is a high-performance 5 Megapixel Analog HD bullet camera designed for reliable outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 2560x1944 resolution at 20 fps. The camera supports multiple video output formats (AHD/TVI/CVI/CVBS) for flexible integration. With a fixed 3.6mm lens and Smart IR technology providing up to 40 meters of night vision, it ensures clear images in complete darkness. The metal housing and IP67 rating guarantee durability against harsh weather conditions. Power is supplied via DC 12V with a maximum consumption of only 4.1 W. Advanced features include Digital WDR, 2D/3D DNR, and coaxial (UTC) OSD control for easy configuration.

Advantages

Exceptional 5MP resolution for detailed surveillance; versatile video output switching; long-range Smart IR for 24/7 monitoring; robust metal construction with IP67 protection; low power consumption; easy setup with UTC OSD control.

Suitable for

• Outdoor perimeter security
• Parking lots and entrances
• Warehouses and industrial sites
• Residential and commercial buildings

Key specifications

• Sensor: 1/2.7" CMOS, 5 Megapixel
• Max Resolution: 2560x1944 @ 20 fps
• Video Output: AHD / TVI / CVI / CVBS (switchable)
• Lens: Fixed 3.6mm
• IR Range: Up to 40m (Smart IR)
• Min. Illumination: 0.005 Lux (color), 0 Lux (IR on)
• Dynamic Range: Digital WDR (DWDR)
• Noise Reduction: 2D/3D DNR
• Housing: Metal, IP67
• Power: DC 12V, max 4.1W
• Operating Temperature: -30°C to +60°C
• OSD: Coaxial (UTC)

Recommendations

For optimal performance, use a high-quality DC 12V power supply and ensure proper cable connections. The camera is ideal for outdoor installations requiring high-resolution video and reliable night vision.
