Câmara de marcha-atrás para automóvel com fios Axion DBC 114021 MULTI

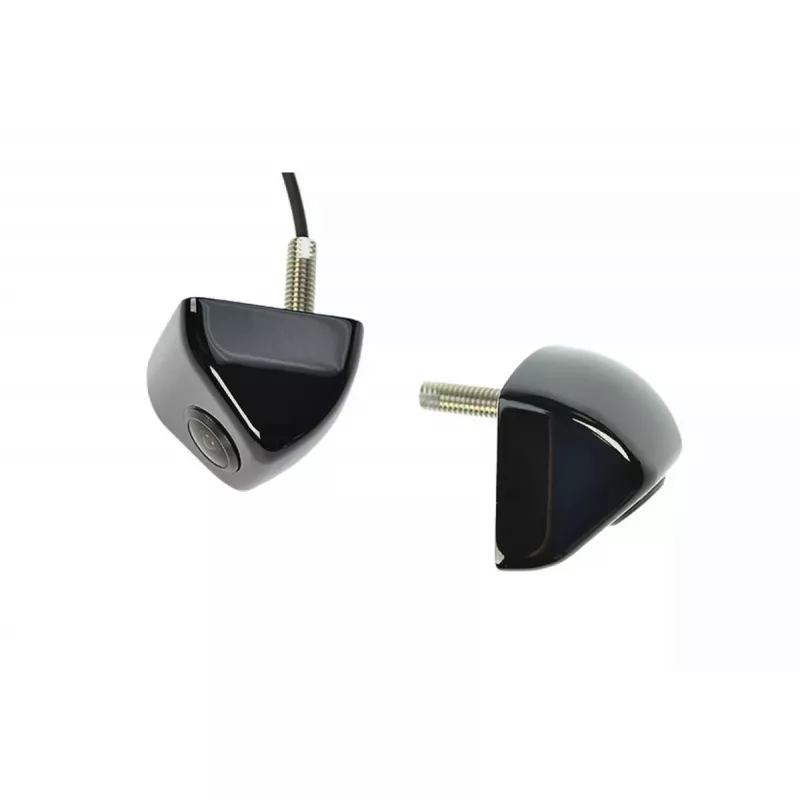

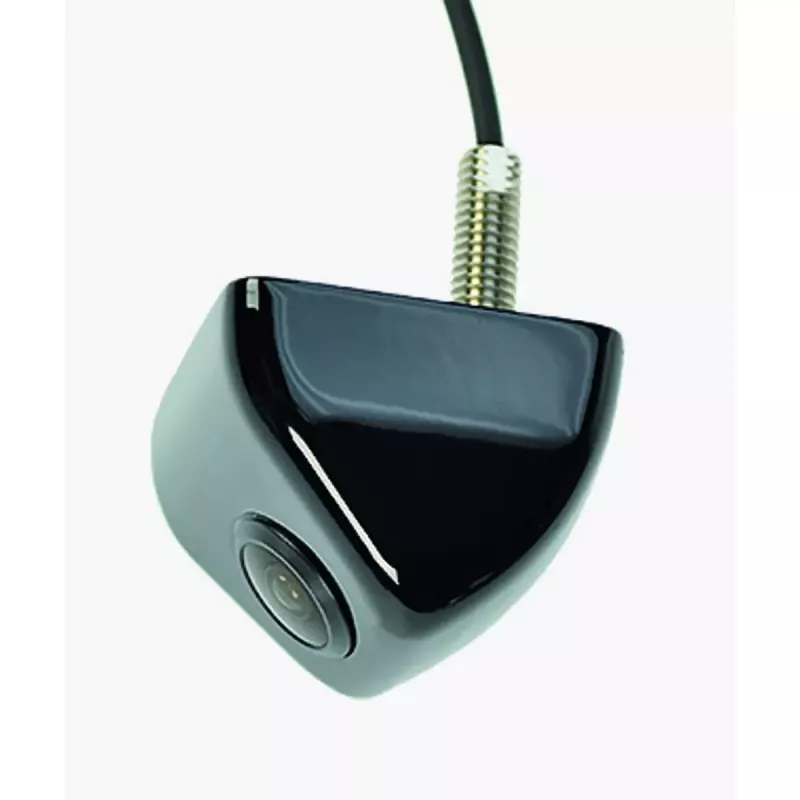

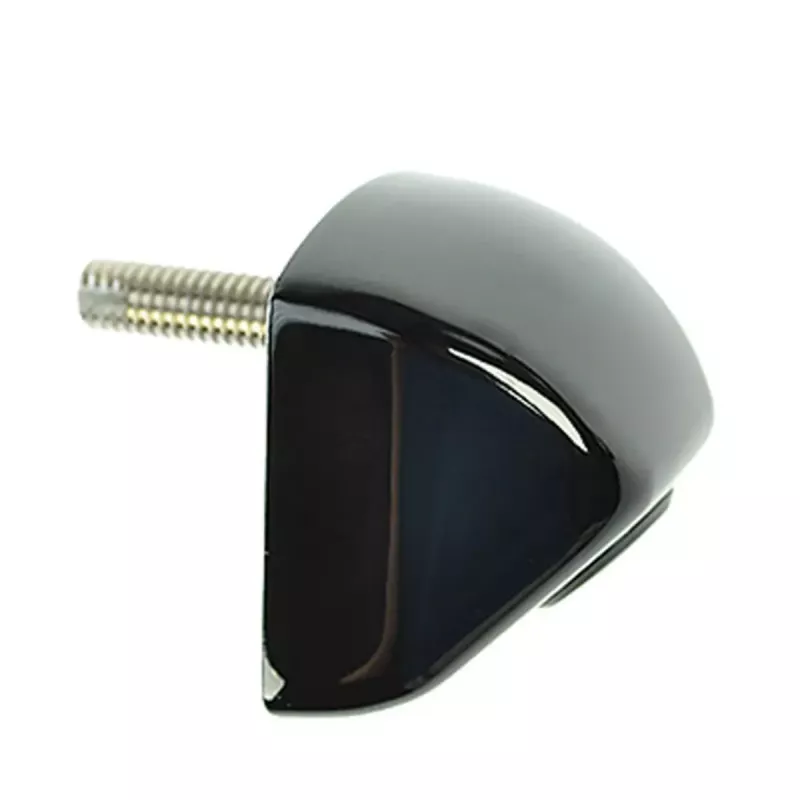

The Axion DBC 114021 MULTI is a wired car backup camera designed for rear or side view applications. It features a high-quality CMOS image sensor with a 1/3" size, a compact black housing and a 7.5 cm connection cable that simplifies installation. The camera is water- and dust-resistant with an IP68 rating and operates from a 12 V supply. It supports PAL/NTSC signal formats and offers mirror/normal and flip functions for flexible mounting and viewing angles.

Advantages

The camera's compact design allows for discreet mounting while the IP68 protection ensures reliable operation in wet and dusty environments. Switchable PAL/NTSC and image orientation options (mirror/normal and flip) enable compatibility with a wide range of monitors and installation positions. The use of a 1/3" CMOS sensor delivers clear video suitable for reversing maneuvers and parking assistance.

Suitable for

• Rear-view installation on passenger cars, vans and light commercial vehicles
• Side-view monitoring to reduce blind spots
• Flush or surface mounting where a compact camera is required
• Replacement or upgrade of existing wired camera systems

Key specifications

• Image sensor: CMOS, 1/3"
• Power supply: 12 V DC
• Ingress protection: IP68 (water and dust resistant)
• Signal format: PAL/NTSC switchable
• Image orientation: mirror/normal switchable and flip option
• Housing color: black
• Dimensions (W × D × H): 36 mm × 36.5 mm × 26.5 mm
• Connection cable length: 7.5 cm

How to use

Choose an appropriate mounting location at the rear or side of the vehicle where the camera has an unobstructed view. Secure the camera using the selected mounting method (flush or surface) and route the 7.5 cm connection cable to the monitor or control unit, extending with compatible wiring if needed. Connect the camera to a 12 V DC supply and select the correct video format (PAL or NTSC) to match your display. Set the mirror/normal and flip settings according to the camera orientation to ensure the image appears correctly on the monitor.

Recommendations

For optimal performance, mount the camera at a position that minimizes exposure to direct spray and dirt accumulation. Regularly check and clean the lens surface to maintain image clarity. When integrating with older or third-party monitors, confirm video format compatibility and adjust the PAL/NTSC setting before finalizing installation.
