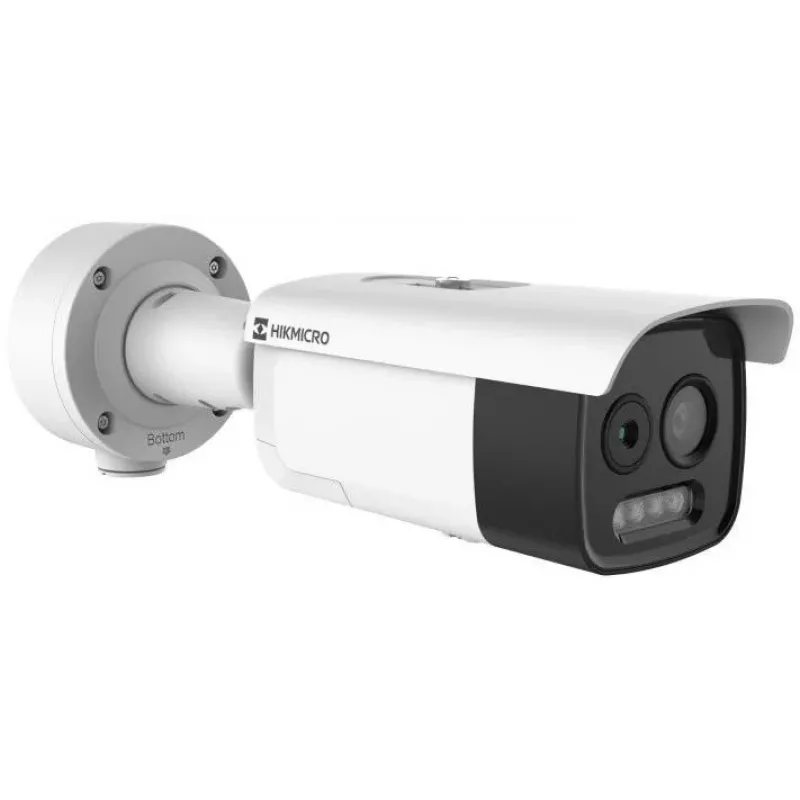

Câmara de rede térmica e ótica bi-espetral Hikvision HM-TD2618-7/G0/T1A

The Hikvision HM-TD2618-7/G0/T1A is a high-performance bi-spectrum network camera combining thermal and optical imaging for reliable 24/7 surveillance. With a thermal resolution of 160×120 (output 320×240) and a 4 MP optical sensor, it delivers clear images in complete darkness or challenging environments. Ideal for perimeter protection, temperature measurement, and fire detection, this camera is built to withstand extreme conditions with IP66 rating and wide temperature range.

Advantages

Dual-spectrum fusion provides both thermal and visual details in one view. Smart features include temperature measurement (-20°C to 150°C), fire detection, and VCA (Video Content Analysis). The 7 mm thermal lens and 8 mm optical lens offer wide fields of view. With H.265 compression, it reduces bandwidth and storage. PoE support simplifies installation.

Suitable for

• Perimeter security for industrial sites, warehouses, and critical infrastructure
• Temperature screening in public spaces or production lines
• Fire prevention in forests, landfills, or power plants
• Outdoor surveillance in harsh climates

Key specifications

• Thermal Resolution: 160×120 (output 320×240)
• Optical Resolution: 4 MP (2688×1520)
• Thermal Lens: 7 mm, F1.0
• Optical Lens: 8 mm, F1.6
• Thermal FOV: 22.1°×16.6° (H×V)
• Optical FOV: 39.42°×22.07° (H×V)
• IR Distance: Up to 50 m
• Video Compression: H.265/H.264/MJPEG
• Frame Rate: 25 fps (thermal & optical)
• Temperature Measurement Range: -20°C to 150°C
• Storage: Micro SD up to 256 GB
• Network Interface: 1 RJ45 10/100M
• Power Supply: 12 VDC / PoE (802.3af)
• Protection: IP66, TVS 6000V
• Operating Temperature: -40°C to 65°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting location provides a clear view of the area of interest. The camera supports ONVIF for integration with third-party systems.
