Câmara de segurança CCTV DAHUA IPC-HDW2649T-S-PRO – turret com fios, montagem no teto, interior/exterior, 0,0007 lx, rotação 360°, MicroSD até 256 GB

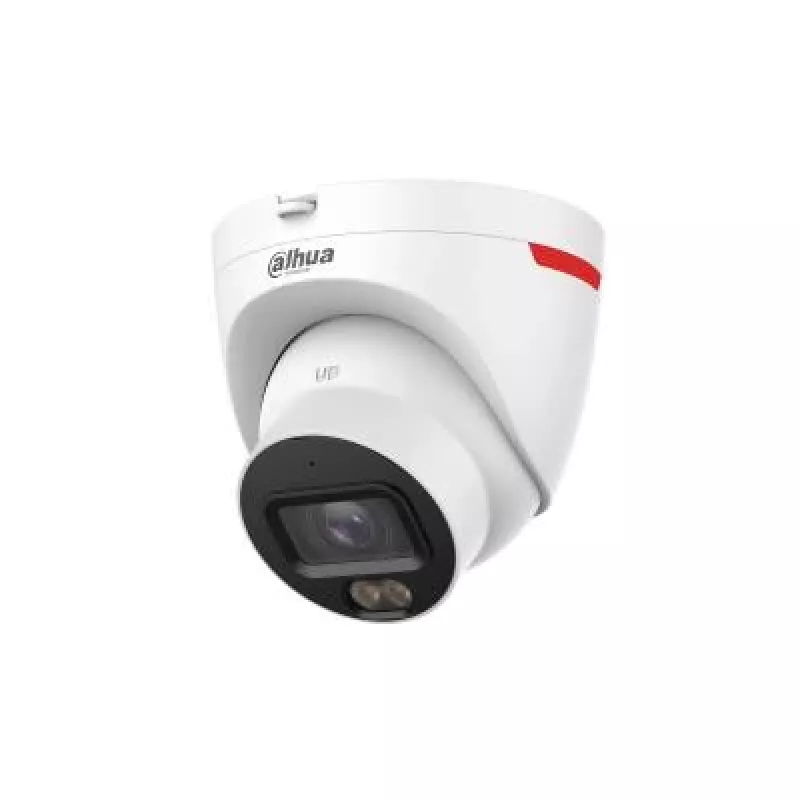

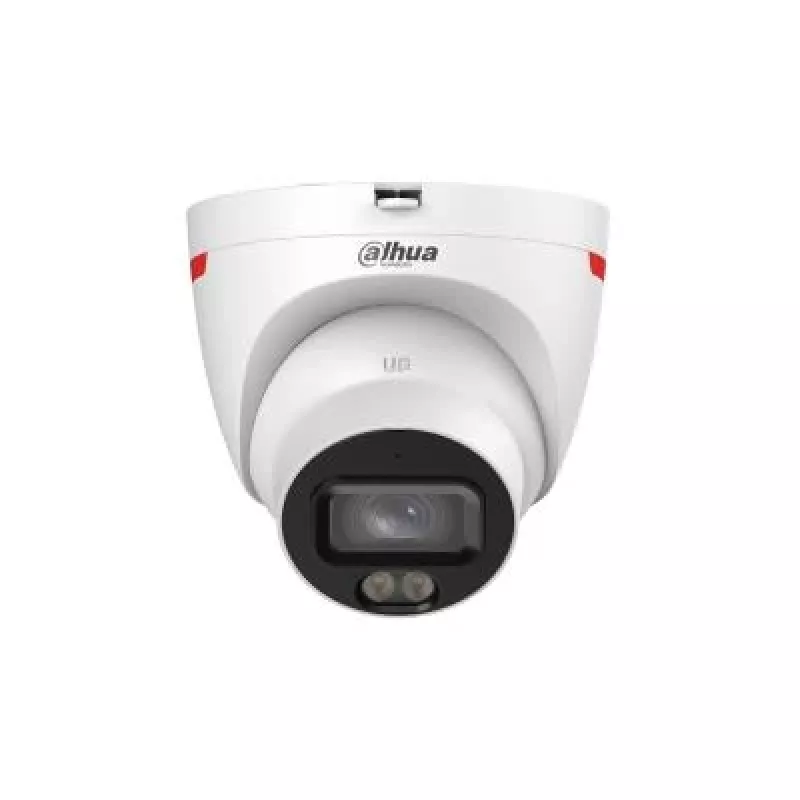

Dahua Technology WizSense IPC-HDW2649T-S-PRO is a wired turret CCTV security camera designed for ceiling installation and suitable for both indoor and outdoor surveillance. The camera uses a 1/1.8" CMOS sensor and delivers up to 6MP resolution with efficient H.265 compression. It features very low-light sensitivity (minimum illumination 0.0007 lx), built-in warm light with up to 30 m effective distance, and a mechanical configuration that allows full 360° rotation with a 0–78° tilt range. The device supports wired Ethernet connectivity with IPv4/IPv6 and common streaming protocols, on-board MicroSD storage up to 256 GB, and a range of intelligent detection functions based on Dahua WizSense AI.

Advantages

The IPC-HDW2649T-S-PRO combines high-resolution imaging and advanced compression to reduce bandwidth and storage requirements while preserving detail. Low-light performance and the built-in warm light expand usable hours without external illumination. AI-powered features, including human and vehicle classification, intrusion and tripwire detection, and motion detection, enable more accurate event filtering and fewer false alarms. PoE or 12 VDC power options and IP67 weather resistance simplify installation and allow reliable operation in varied environments. Local MicroSD recording provides redundancy when network storage is unavailable.

Suitable for

• Retail stores and point-of-sale areas
• Office spaces, meeting rooms and corridors
• Warehouse aisles and loading docks
• Building entrances, lobbies and outdoor facades

Key specifications

• Image sensor: 1/1.8" CMOS, supports up to 6MP (3288 × 1850) @20 fps and 4MP @25/30 fps
• Minimum illumination: 0.0007 lux; built-in warm light with up to 30 m range
• Lens and view: fixed-focal turret design with 360° rotation and 0–78° tilt range
• Video compression: H.265, H.264 and SMART H.264+/H.265+ with ROI and flexible coding
• Intelligent functions: human/vehicle classification, intrusion, tripwire, motion detection and SMD Plus
• Audio: built-in microphone for on-site sound capture
• Storage: supports MicroSD card up to 256 GB for local recording
• Connectivity: wired Ethernet LAN, supports IPv4/IPv6 and common streaming protocols
• Power: 12 VDC or PoE (Power over Ethernet)
• Protection: IP67 weather resistance for outdoor installation
• Operating placement: ceiling mount suitable for indoor and outdoor use
• Color: white

How to use

Mount the turret camera on a suitable ceiling surface using the included bracket and fasteners, ensuring the camera has clear sightlines for the intended coverage area. Connect the device to the network via Ethernet; if using PoE, a compatible PoE switch or injector will provide both data and power. Configure basic network settings (IPv4/IPv6), video resolution, and compression parameters through Dahua management software or a web interface. Insert a MicroSD card for local recording if required and enable motion or AI detection rules such as intrusion and tripwire to capture relevant events. Adjust rotation and tilt to set the optimal field of view and verify IR/warm-light performance in low-light conditions.

Recommendations

Position the camera to minimize direct exposure to bright light sources to reduce glare and false detections. Use PoE for simplified cabling and centralized power management where available. For critical monitoring, combine local MicroSD recording with network storage to ensure redundancy. Regularly check firmware updates and perform periodic maintenance, including cleaning the lens and verifying housing seals to maintain IP67 protection.
