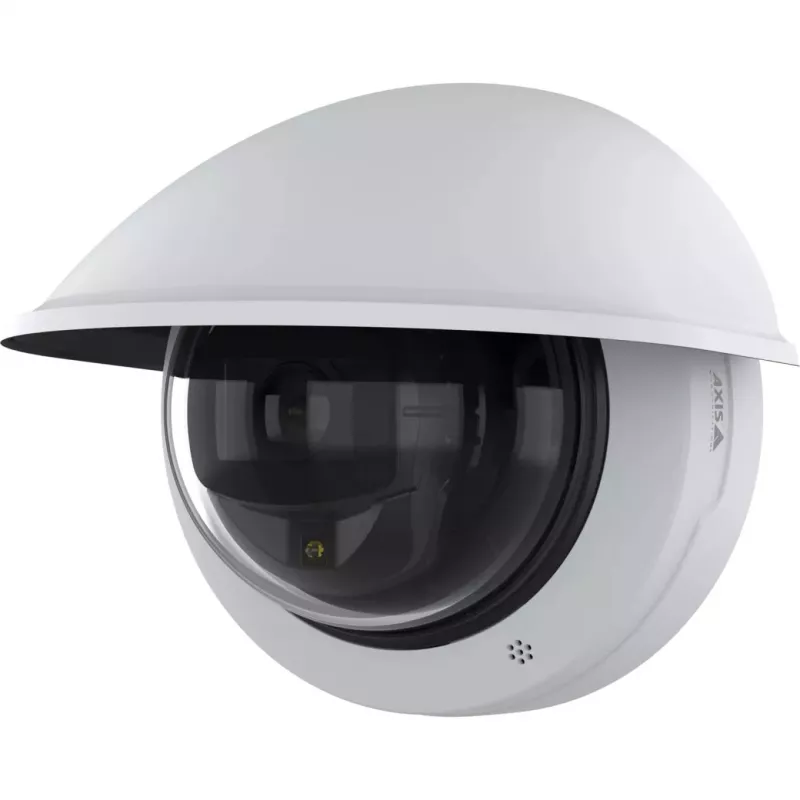

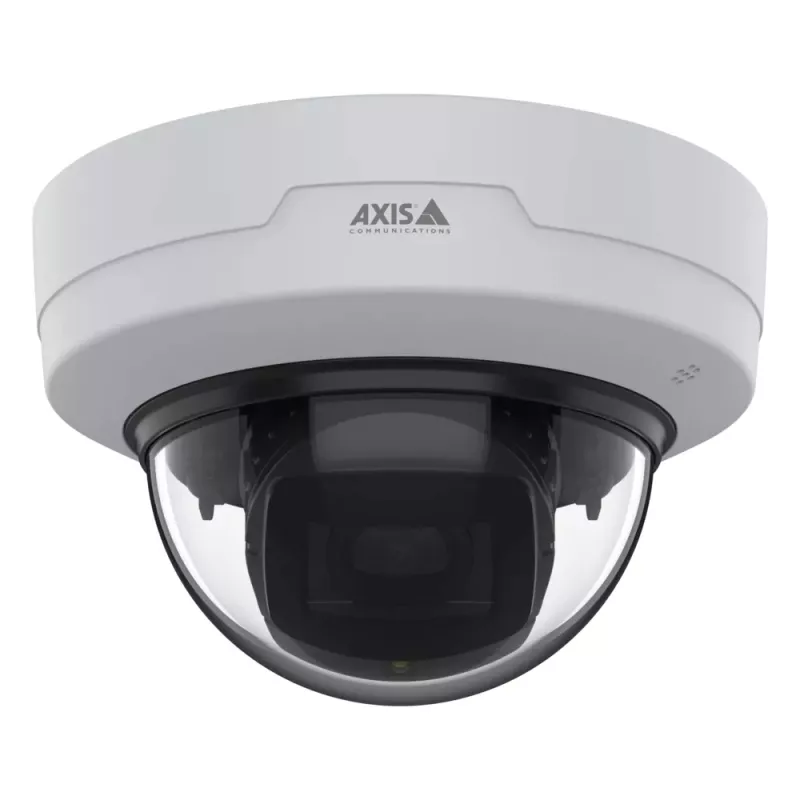

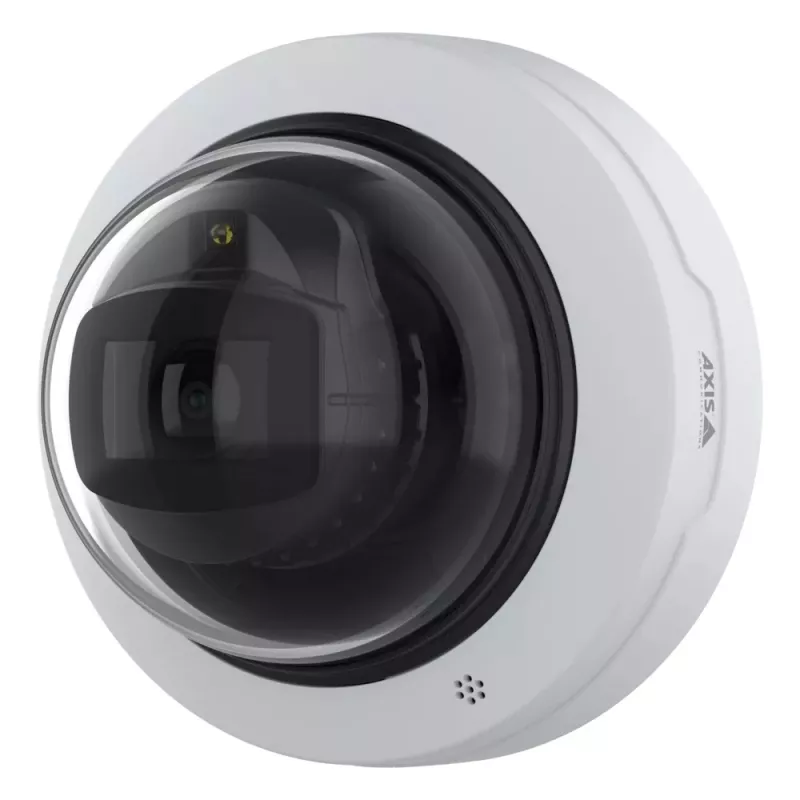

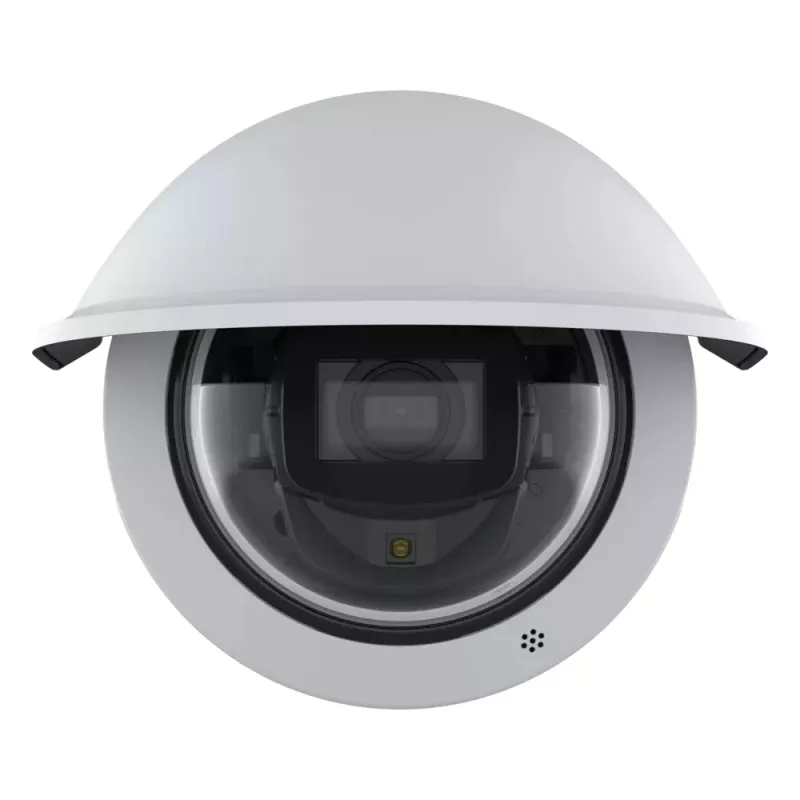

Câmara de segurança IP dome AXIS 02814-001 Parede exterior 1080p 1/2,8" CMOS 100° ângulo de visão horizontal 360° rotação

AXIS 02814-001 is an outdoor dome IP security camera designed for wall mounting and wired network connection. It delivers Full HD 1920×1080 resolution using a 1/2.8" CMOS sensor and a varifocal lens with a horizontal field of view up to 100°. The camera supports low-light operation (minimum illumination 0.03 lx), 360° rotation for flexible coverage and offers panoramic image quality with a 55 dB signal-to-noise ratio. Intended for perimeter monitoring, entrances and general outdoor surveillance, this compact dome combines image detail, weather protection and edge analytics capability.

Advantages

The camera provides consistent 2 MP Full HD imagery with remote-adjustable zoom and focus, enabling both overview and close-up framing without on-site lens adjustments. Built-in low-light technologies and optimized IR extend operational capability into dim or dark conditions. Edge processing and preinstalled analytics support object detection and audio classification at the device, reducing reliance on central processing. Weather- and impact-resistant construction plus an included weathershield make it suitable for exposed outdoor locations.

Suitable for

• Perimeter and fence line monitoring
• Building entrances and access control points
• Parking areas and outdoor public spaces
• Retail exterior and loading zones

Key specifications

• Image sensor: 1/2.8" CMOS, 2 MP
• Resolution: 1920×1080 (Full HD)
• Lens: varifocal with horizontal field of view up to 100° (remote zoom and focus)
• Rotation: 360° rotation capability for flexible coverage
• Minimum illumination: 0.03 lux
• Night vision: Optimized IR for surveillance in low or zero light
• Signal-to-noise ratio: 55 dB (panoramic)
• Connectivity: wired Ethernet LAN
• Environmental protection: IP66 weatherproof and IK10 impact resistance
• Operating temperature range: −30 °C to 50 °C
• Weight: approximately 540 g
• Colors available: black, white

How to use

Mount the dome camera on a suitable exterior wall using the provided mounting accessories and connect it to a PoE-capable Ethernet network for power and data. Use remote zoom and focus to set the desired field of view from the camera management interface; adjust IR and low-light settings for nighttime coverage. Configure built-in analytics and audio sensors through the device web interface or compatible VMS to enable object detection, classification and event triggers. Ensure firmware and security settings are kept up to date and integrate the camera into your monitoring system according to site-specific coverage plans.

Recommendations

Position the camera to cover primary access routes and reduce glare from direct light sources; use the varifocal range to balance overview and identification needs. Regularly verify mounting seals and the weathershield to maintain IP66 protection, and schedule periodic firmware and credential updates to preserve device security and analytics performance.
