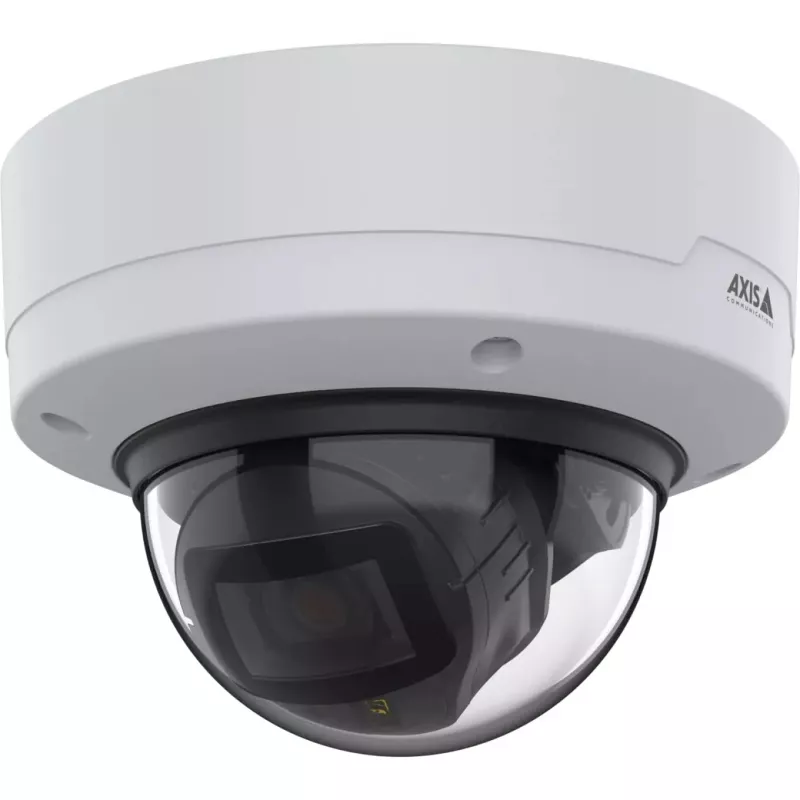

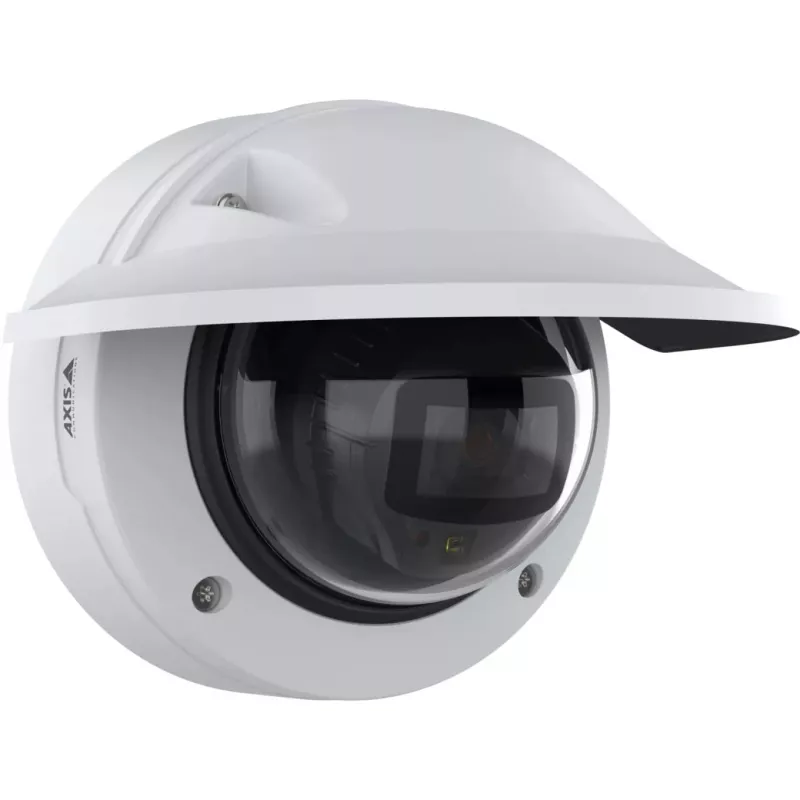

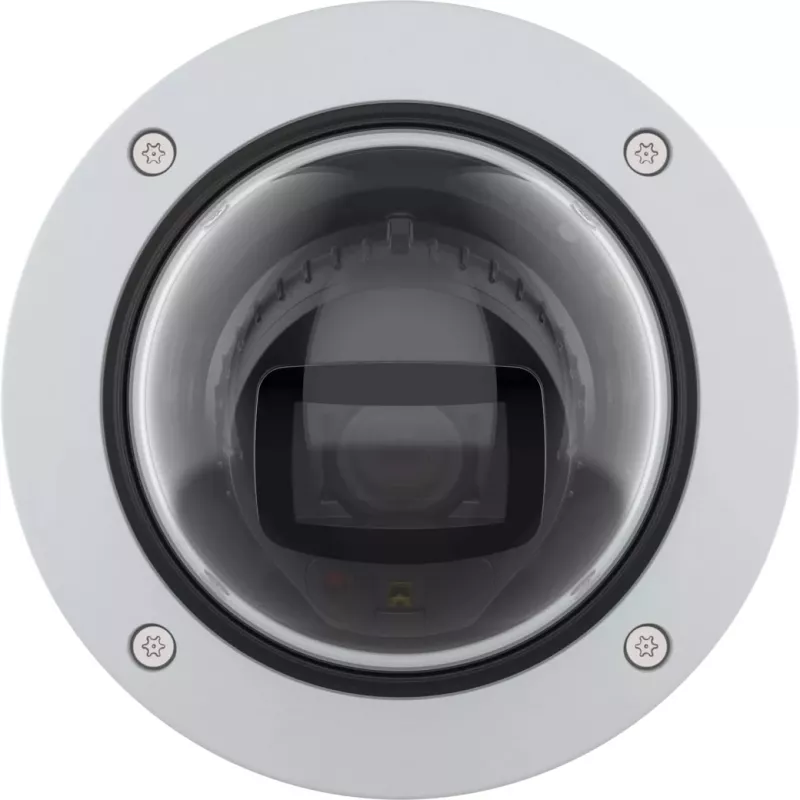

Câmara de segurança IP dome AXIS P3275-LVE 1920×1080, 0,02 lx, 100° HF, rotação 190°, teto/parede, interior/exterior

AXIS P3275-LVE is a wired IP dome security camera designed for indoor and outdoor surveillance. It delivers 1920×1080 (2 MP) resolution using a 1/2.8" CMOS sensor and provides high sensitivity with a minimum illumination of 0.02 lx. The camera supports ceiling or wall mounting, a 100° horizontal field of view, and 190° rotation for flexible coverage. Built-in Lightfinder 2.0, Forensic WDR and OptimizedIR ensure usable color and detail in low light and total darkness, while Axis Zipstream with AV1, H.264 and H.265 support reduces bandwidth and storage needs.

Advantages

AXIS P3275-LVE combines high image quality and edge processing: Lightfinder 2.0 and Forensic WDR produce clear, color-accurate images in varying lighting conditions, and OptimizedIR extends visibility in complete darkness. The integrated deep learning processing unit enables on-camera analytics such as object detection, classification, tracking and counting without constant server processing. The housing is built for harsh environments with IP66, IK10 and NEMA 4X ratings, an operating temperature range from -40 °C to 50 °C, and a tamper detection switch. Hardware-based security with secure key storage adds protection for device and data.

Suitable for

• General indoor surveillance in offices, retail and public buildings
• Perimeter and outdoor monitoring for parking lots and facility perimeters
• High-risk or vandal-prone locations requiring IK10 impact resistance
• Use cases needing low-light or no-light forensic detail and IR coverage
• Environments where on-edge analytics reduce network and server load

Key specifications

• Resolution: 1920 × 1080 (2 MP)
• Image sensor: 1/2.8" CMOS
• Minimum illumination: 0.02 lx
• Horizontal field of view: 100° (lens-dependent options available: wide and tele)
• Rotation: up to 190° for panoramic positioning
• IR night vision: up to 40 m with OptimizedIR
• Low-light technologies: Lightfinder 2.0 and Forensic WDR
• Video compression: AV1, H.265, H.264 with Axis Zipstream
• Analytics: on-board DLPU for object analytics and image health monitoring
• Ingress and impact protection: IP66, IK10, NEMA 4X
• Mounting: ceiling or wall
• Operating temperature range: -40 °C to 50 °C
• Audio: built-in audio jack for external microphone
• Weight: approximately 840 g

How to use

Install the AXIS P3275-LVE on a ceiling or wall following standard mounting procedures and local cabling codes. Connect to wired Ethernet for power and data (PoE recommended) and configure network settings through the camera’s web interface or Axis management software. Choose the appropriate lens option for the required field of view and set exposure, WDR and Lightfinder modes to match the scene. Enable Axis Zipstream to optimize bandwidth and storage, and configure AV1/H.265/H.264 encoding as supported by your VMS. If required, connect an external microphone via the audio jack and calibrate analytics parameters such as object size and detection zones for accurate counts and classifications.

Recommendations

For reliable long-term performance, position the camera to minimize direct sunlight and extreme backlight when possible, keep the lens and housing clean, and verify firmware and security settings regularly. Use PoE-enabled switches for simplified installation and power management, enable Axis Image Health Analytics to detect blockage or image degradation, and adjust IR range and WDR settings for optimal balance between detail and contrast in varying lighting conditions.
