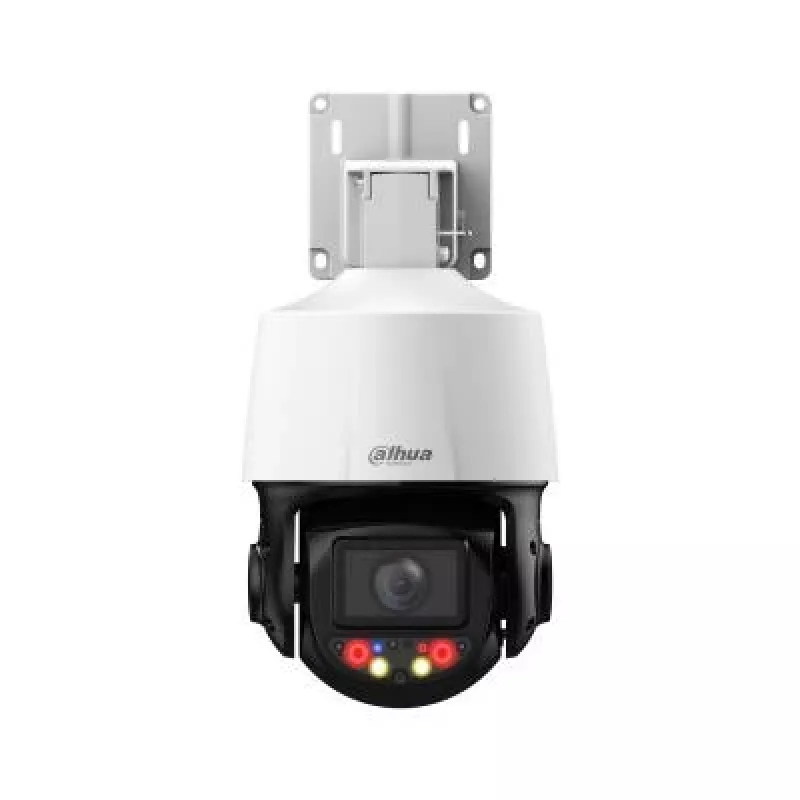

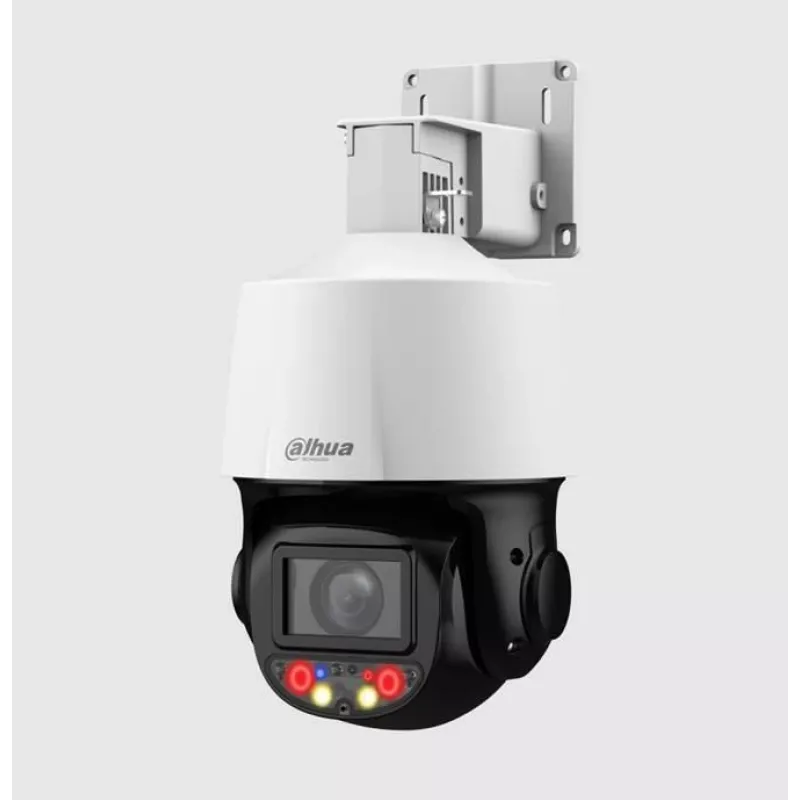

Câmara de segurança IP turret DAHUA SD3E410DB-GNY-A-PV1 – exterior, montagem no teto, 4 MP (2560×1440), com fios, PoE, DC, branco

Dahua Technology SD3E410DB-GNY-A-PV1 is an outdoor turret IP security camera designed for ceiling mounting. It features a 1/2.8" 4 MP CMOS sensor with a maximum resolution of 2560 x 1440 pixels, wired Ethernet connectivity and power options including DC and PoE. The camera is white, weighs 1.58 kg and is built to IP66 standards for outdoor use.

Advantages

The camera offers 10x optical zoom and supports up to 25/30 fps at 4 MP for smooth video. It includes long-range night vision with IR illumination up to 70 m and warm light up to 30 m, SMD 3.0 for improved motion detection, perimeter protection and face detection for intelligent event filtering. Two-way talk and red/blue warning lights add situational response options while the IP66 rating ensures weather resistance for outdoor installations.

Suitable for

• Monitoring building exteriors and entrances
• Perimeter surveillance of commercial or industrial sites
• Parking lots and driveway monitoring
• Locations requiring long-range night visibility and deterrence

Key specifications

• Sensor: 1/2.8" 4 MP CMOS (2560 x 1440)
• Frame rate: up to 25/30 fps at 4 MP
• Optical zoom: 10x
• IR distance: up to 70 m; warm light illumination up to 30 m
• Intelligent features: SMD 3.0, perimeter protection, face detection
• Audio: two-way talk
• Connectivity: wired Ethernet LAN (PoE supported)
• Ingress protection: IP66
• Form factor / mounting: Turret, ceiling mount
• Color: White; Weight: 1.58 kg

How to use

Install the turret camera on a suitable ceiling or overhang using the manufacturer’s mounting instructions and ensure a stable wired Ethernet connection; use PoE when available to supply power and network via a single cable. Configure basic settings through the Dahua web interface or compatible NVR: set resolution to 2560 x 1440, adjust frame rate as needed, and position the lens to use the 10x optical zoom for the desired field of view. Enable intelligent functions such as SMD 3.0, perimeter protection and face detection, and configure alerts and recording schedules according to your monitoring requirements.

Recommendations

For reliable outdoor performance, mount the camera under an overhang to reduce direct exposure to rain and sunlight, use PoE for simplified installation and stable power, and periodically clean the lens and check firmware updates to maintain optimal detection and image quality.
