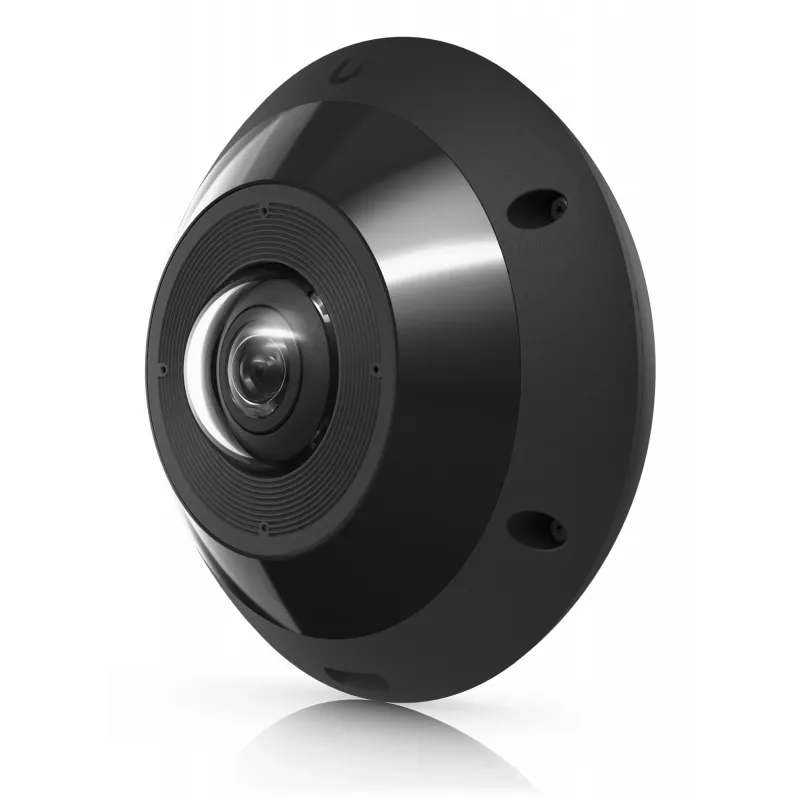

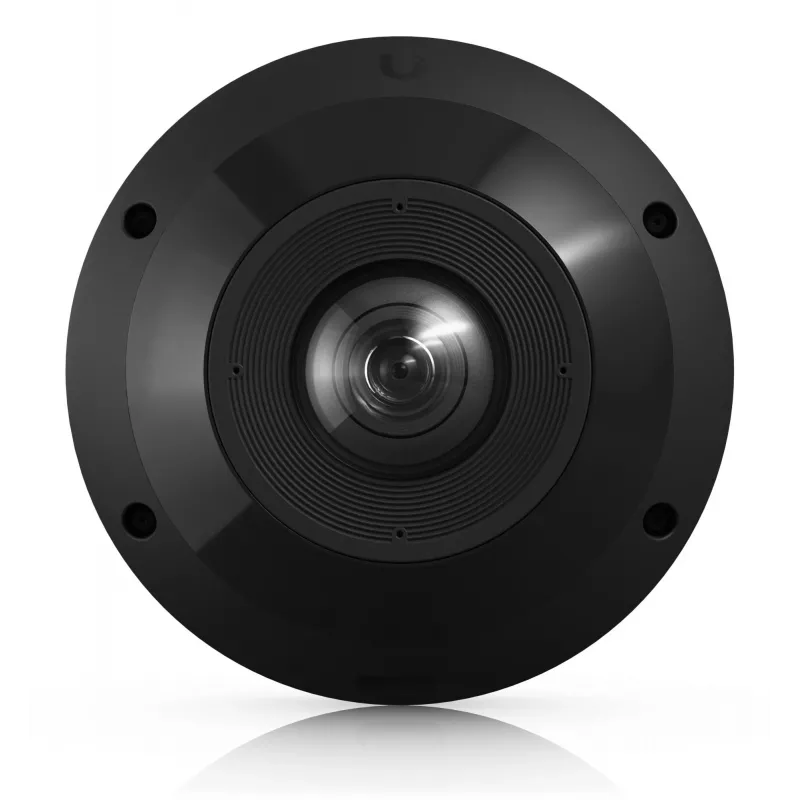

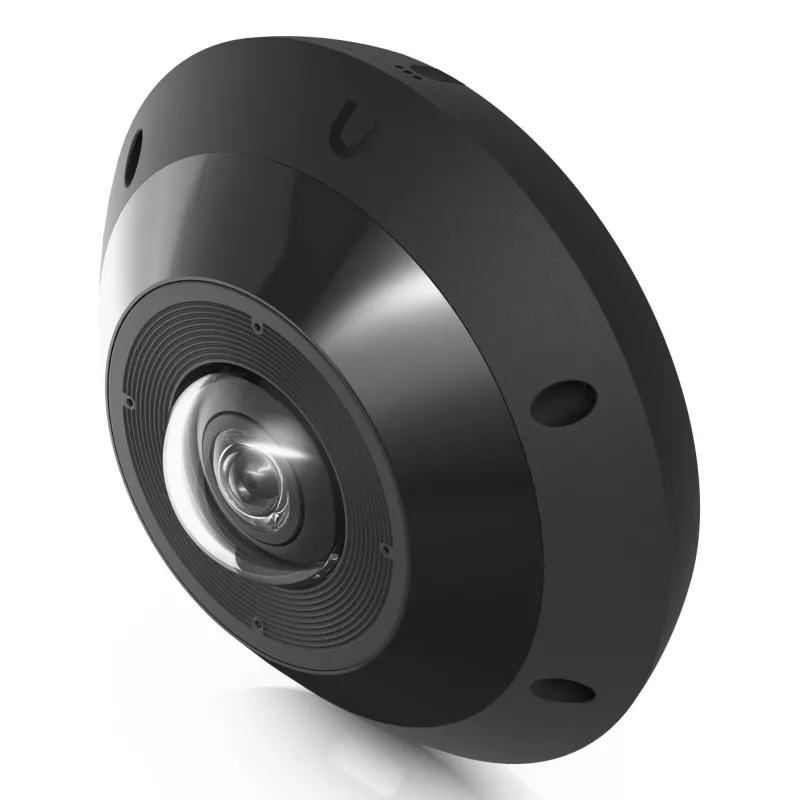

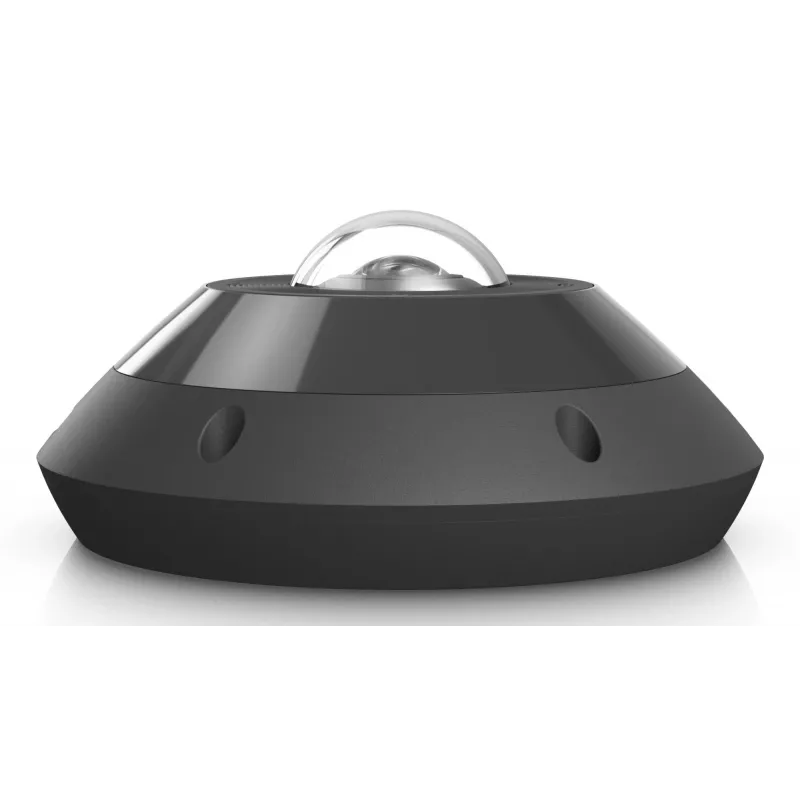

Câmara de segurança IP UBIQUITI G6 Pro 360 — dome, interior/exterior, 3504×3504, sensor de 1/1,6 polegadas, campo de visão 180°, IR 15 m, com fios

All-weather, vandal-resistant 12MP PoE camera with panoramic 360° coverage, digital pan-tilt-zoom functionality, and smart IR functionality.

Summary: Ubiquiti G6 Pro 360. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°, Lens viewing angle, diagonal: 180°. Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Night vision distance: 15 m, LED type: IR | Vendor Homepage: https://eu.store.ui.com/eu/en/category/cameras-dome-turret/products/uvc-g6-pro-360 | Form factor: Dome | Housing material: Aluminium/Polycarbonate (PC) | IK code: IK10 | International Protection (IP) code: IP66 | Mounting type: Ceiling/wall | Product colour: Black | Protection features: Vandal proof/Weatherproof | Weatherproof: Yes | Built-in processor: Yes | Connectivity technology: Wired | Day/night mode: Yes | Infrared (IR) cut-off filter: Yes | Placement supported: Indoor & outdoor | Processor model: ARM Cortex-A53 | Type: IP security camera | Camera pan control: Yes | Camera tilt control: Yes | Lens viewing angle, diagonal: 180 | Lens viewing angle, horizontal: 180 | Lens viewing angle, vertical: 180 | Optical sensor size: 1/1.6 | Number of lenses: 1 | Zoom capability: Yes | LED type: IR | Night vision: Yes | Night vision distance: 15 | Frame rate: 24 | Image quality adjustment: Brightness/Colour depth/Contrast/HDR/Sharpness | Maximum resolution: 3504 x 3504 | Noise reduction: Yes | Noise reduction technology: 2D noise reduction,3D noise reduction | Privacy masking: Yes | Text caption overlay: Yes | Total megapixels: 12 | Audio system: 2-way | Built-in microphone: Yes | Built-in speaker(s): Yes | Number of microphones: 2 | Bluetooth: No | Ethernet interface type: Fast Ethernet | Ethernet LAN: Yes | Wi-Fi: No | Built-in HDD: No | Card reader integrated: Yes | Compatible memory cards: MicroSD (TransFlash) | Ethernet LAN (RJ-45) ports: 1 | Intelligent Video Surveillance (IVS) system features: Human detection/Pet detection/Vehicle detection | Reset button: Yes | DC output voltage: 37,42.5,48,54,57 | Power consumption (max): 7.14 | Power source type: PoE+ | Operating relative humidity (H-H): 0 - 90 | Operating temperature (T-T): -30 - 50 | Diameter: 147 | Height: 65.5 | Weight: 610 | Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) | Manual: Yes | Mounting kit: Yes | Number of cameras: 1 | Screws included: Yes | Night mode: Yes | Units per Pallet: 0 | Units per Shipping Box: 8 | Unit Calculated Volume: 0.0092 | Unit Calculated Weight: 1.34

How to use

Mount the dome camera on a ceiling or wall using appropriate anchors and follow the manufacturer’s installation instructions. Connect the device to your network switch or PoE injector using a standard Ethernet cable to provide both power and data. Configure recording parameters, resolution and digital pan-tilt-zoom settings via the Ubiquiti management interface or compatible VMS. Adjust IR and exposure settings if required for night-time scenes.

Recommendations

Install the camera at a height and angle that maximizes panoramic coverage while reducing obstructions. Use a PoE switch with sufficient power budget and configure secure network access. For reliable night performance, avoid direct reflective surfaces in the camera’s IR path.
