Câmara de vigilância Braun Photo Technik Schwarz550 CMOS visão noturna

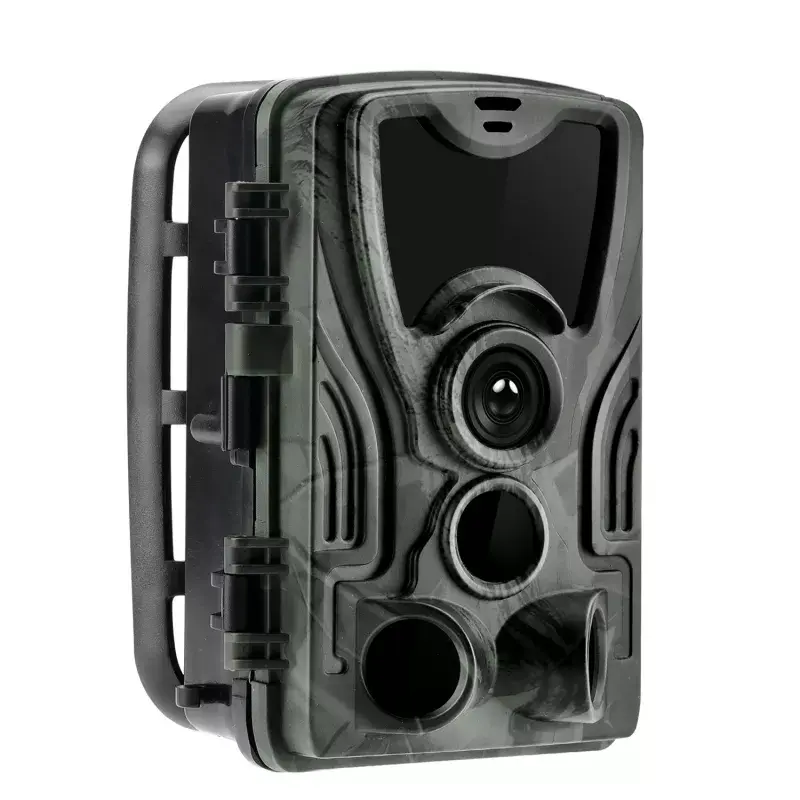

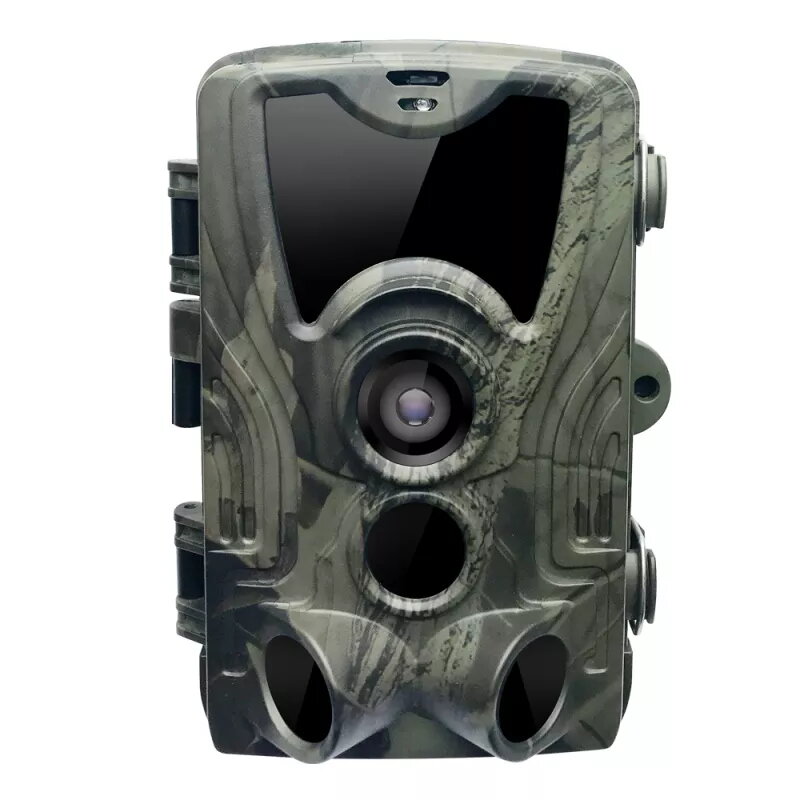

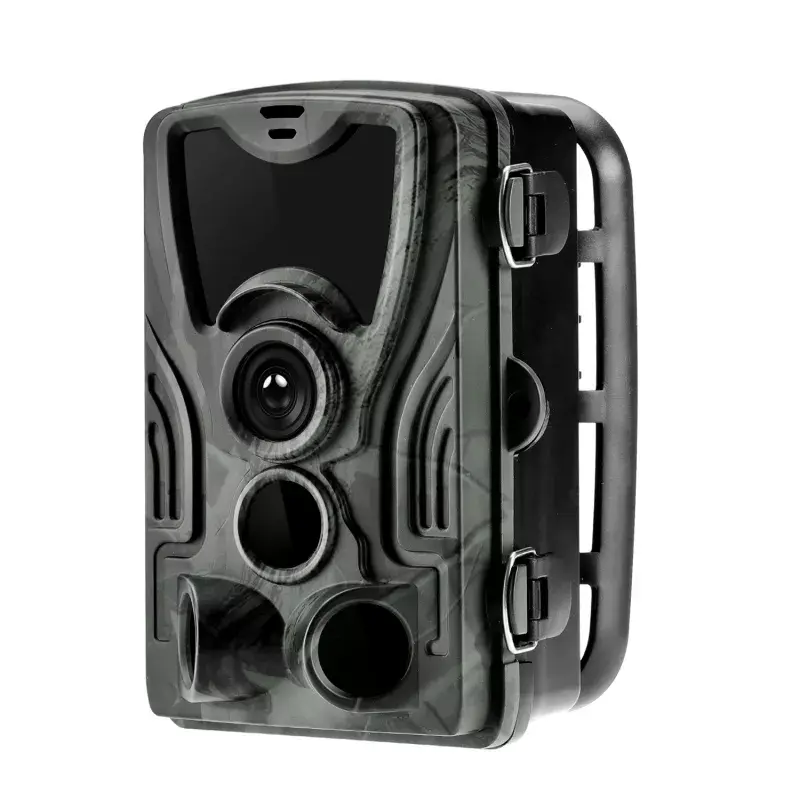

The Braun Photo Technik Black550 is a compact surveillance camera designed for day-and-night monitoring of wildlife, property and remote locations. Equipped with a 5 MP CMOS sensor, the camera records photos up to 24 MP and video up to 2.7K (2704 × 1520). It supports SD cards up to 256 GB and offers a micro‑USB connection for PC or TV review. The device is housed in a dust- and water‑protected enclosure (IP65) and can be mounted with the supplied strap. Operating temperatures range from -20 °C to +70 °C and power is provided by eight AA batteries or an optional 6V 1.5A power supply.

Advantages

The Black550 provides high-resolution day and night recordings using IR LEDs with a 940 nm wavelength and a 5 MP CMOS sensor. Adjustable photo and video settings are available via the integrated control panel and the 2" TFT colour display, where recordings can also be previewed. A PIR motion sensor with three sensitivity levels, 120° detection angle, up to 20 m trigger distance and a 0.5 s trigger time increases capture reliability. Additional features include an integrated microphone, password protection, time‑lapse mode and on‑screen display of date, time, moon phase and temperature.

Suitable for

• Monitoring wildlife (deer, wild boar, foxes and similar)
• Property protection and perimeter surveillance
• Detecting theft, vandalism or illegal dumping
• Long‑term remote observation where battery operation is required

Key specifications

• Image sensor: 5 MP CMOS
• Maximum photo resolution: up to 24 MP (selectable)
• Maximum video resolution: 2.7K (2704 × 1520) at 20 fps; 1080p, 720p or 480p at 30 fps
• Night vision: IR LEDs (940 nm), effective range up to 20 m
• PIR motion sensor: 120° detection angle, up to 20 m trigger distance, 0.5 s trigger time, three sensitivity levels
• Storage: microSD card up to 256 GB; micro USB connection for PC/TV
• Display: 2" TFT colour LCD
• Protection class: IP65 (dust and water protected)
• Power: 8 × AA batteries or optional 6V 1.5A adapter
• Operating temperature: -20 °C to +70 °C
• Standby time: approx. 180 days
• Dimensions (W × D × H): 90 × 76 × 135 mm
• Weight: 0.314 kg

How to use

Install an SD card (max. 256 GB) and insert eight AA batteries or connect the optional 6V 1.5A power supply. Use the integrated control panel and 2" TFT display to set desired photo and video resolutions, PIR sensitivity and other parameters. Mount the camera securely using the supplied strap toward the area to be monitored, ensuring the PIR sensor has a clear detection path within its 120° field of view. Recordings can be viewed on the display or transferred to a PC via micro USB.

Recommendations

Place the camera at an appropriate height and angle for the intended target (animals or human movement), avoid pointing directly at dense foliage or reflective surfaces, and check battery and SD card status regularly. For prolonged deployments in wet conditions, ensure the housing seals are intact to maintain IP65 protection.
