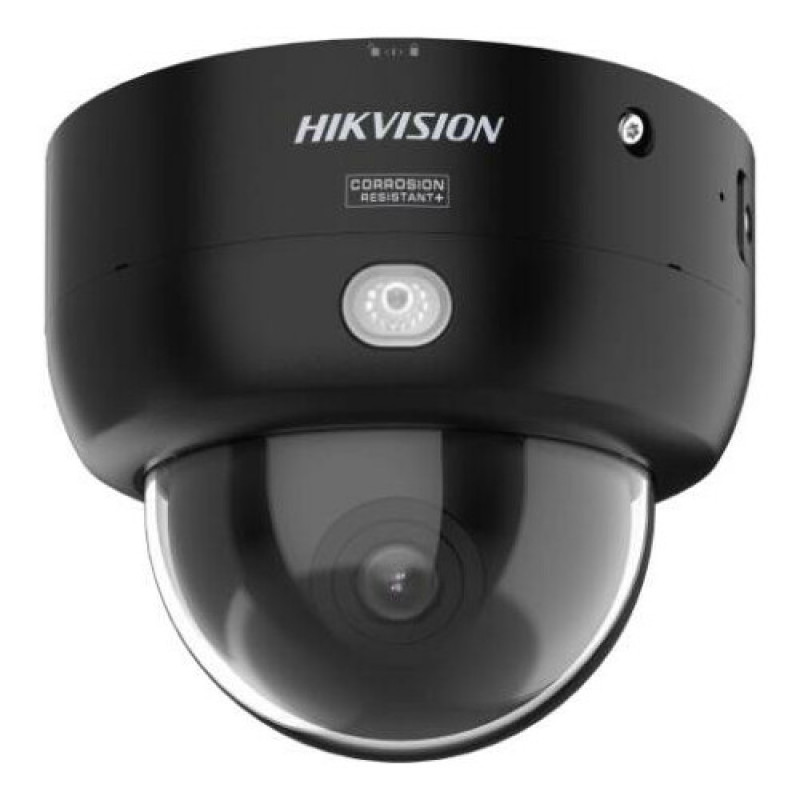

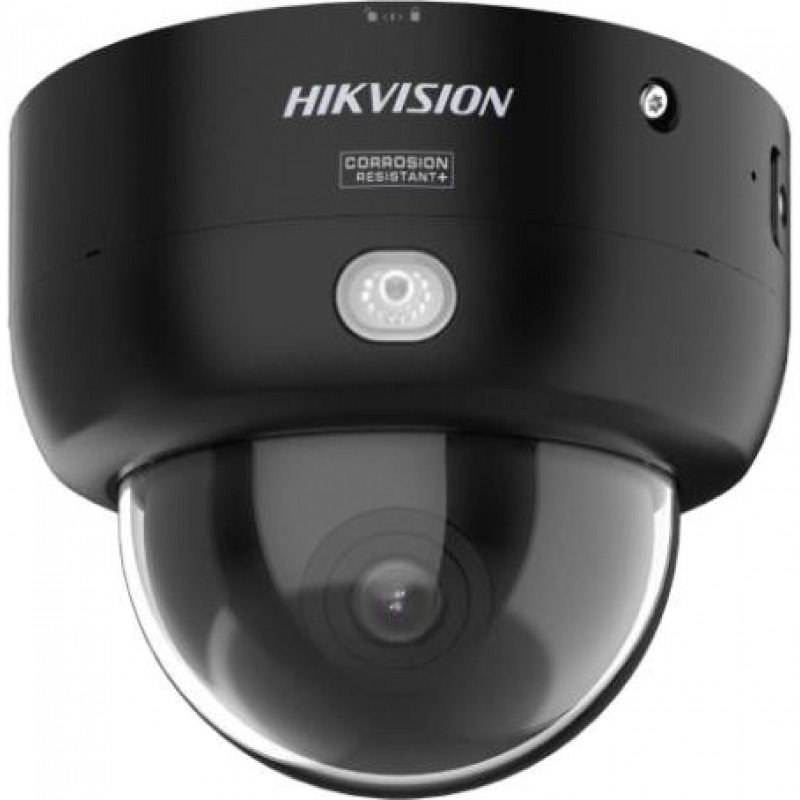

Câmara de vigilância dome preta Hikvision DS-2CD2143G2-LIPTRZS2UY(2.8/4) 4MP EasyIP 2.0

The Hikvision DS-2CD2143G2-LIPTRZS2UY(2.8/4) BLACK is a dome IP security camera delivering 4 MP resolution. It features a motorized varifocal lens and advanced deep learning for human and vehicle classification.

Key features

• Motorized pan, tilt, rotation, and zoom for easy installation and monitoring
• Varifocal 2.8–4 mm lens in a single design
• Three illumination modes: smart mode, infrared (IR) mode, and white light mode
• Human and vehicle classification using deep learning technology
• Crystal-clear sound thanks to two array microphones (only -2U version)
• Clear image under strong backlight with True WDR 120 dB
• Efficient H.265+ video compression
• Water and dust resistant according to IP67 and vandal resistant according to IK10
• Corrosion-resistant design according to NEMA 4X for greater reliability
• Audio and alarm interfaces available (only -S version)

Specifications

• Brand: Hikvision
• MPN: DS-2CD2143G2-LIPTRZS2UY(2.8/4)BLACK
• Product colour: Black
• Product type: IP Security Camera
• Quantity per pack: 120
• Maximum resolution: 4 MP
• Form factor: Dome
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/3" CMOS Progressive Scan
• Maximum resolution: 2688 × 1520
• Minimum illumination: Colour: 0.005 lx (F1.6, AGC on), 0 lx with illumination
• Shutter time: 1 s to 1/100,000 s
• Day/Night mode: Mechanical IR cut filter
• Adjustment: Pan: 0°–346°, tilt: 0°–75°, rotation: 0°–344°, remote adjustment (max. 1000 cycles)
• Lens type: Varifocal, motorized (motor-zoom), 2.8–4 mm
• Focal length and angle of view: 2.8 mm: horizontal 99.1°, vertical 58.6°, diagonal 120°; 4 mm: horizontal 79.9°, vertical 46.1°, diagonal 93.9°
• Lens mount: Ø14
• Aperture type: Fixed
• Aperture: F1.6
• Depth of field: 2.8 mm: from 1.1 m to ∞; 4 mm: from 1.3 m to ∞
• DORI parameters: 2.8 mm: detection 66.5 m, observation 26.4 m, recognition 13.3 m, identification 6.6 m; 4 mm: detection 79.1 m, observation 31.4 m, recognition 15.8 m, identification 7.9 m
• Illuminator type: Infrared (IR) and white light
• Illumination range: Up to 30 m
• Smart illumination: Yes
• IR wavelength: 850 nm
• Main stream: 25 fps (50 Hz) or 30 fps (60 Hz) at resolutions 2688×1520, 1920×1080, 1280×720
• Sub-stream: 25/30 fps at 1280×720, 640×480, 640×360
• Third stream: 10 fps at 1920×1080, 1280×720, 640×480, 640×360 (in selected configurations)
• Video compression: Main: H.265, H.264, H.264+, H.265+; Sub: H.265, H.264, MJPEG; Third: H.265, H.264
• Video bit rate: 32 kb/s – 8 Mb/s
• H.264 profiles: Baseline, Main, High
• H.265 profile: Main
• Scalable video coding (SVC): H.264 and H.265
• Bit rate control: CBR, VBR
• ROI: 1 fixed area for main stream
• Audio type: Mono
• Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio bit rate: 8–320 kb/s (depending on codec)
• Sampling rate: 8 / 16 / 32 / 48 kHz
• Environmental noise reduction: Yes
• Supported protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous live view: Up to 6 channels
• API: ONVIF (Profile S, G), ISAPI, SDK, ISUP
• Security: Password protection, strong passwords, HTTPS, IP address filtering, audit log, TLS 1.1/1.2/1.3, WSSE
• Number of users: Up to 32 users
• User levels: Administrator, operator, user
• Supported applications: iVMS-4200, Hik-Connect, Hik-Central
• Network storage: NAS (NFS, SMB/CIFS), ANR, encryption and diagnostics of Hikvision memory cards
• Browsers: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+
• Image profiles: Yes
• Day/Night mode: Day, night, auto, schedule
• Image adjustment: Rotation, saturation
