Câmara de vigilância IMOU WRL CAMERA SECURITY KIT NVR1104HS-W-S2 4-F22

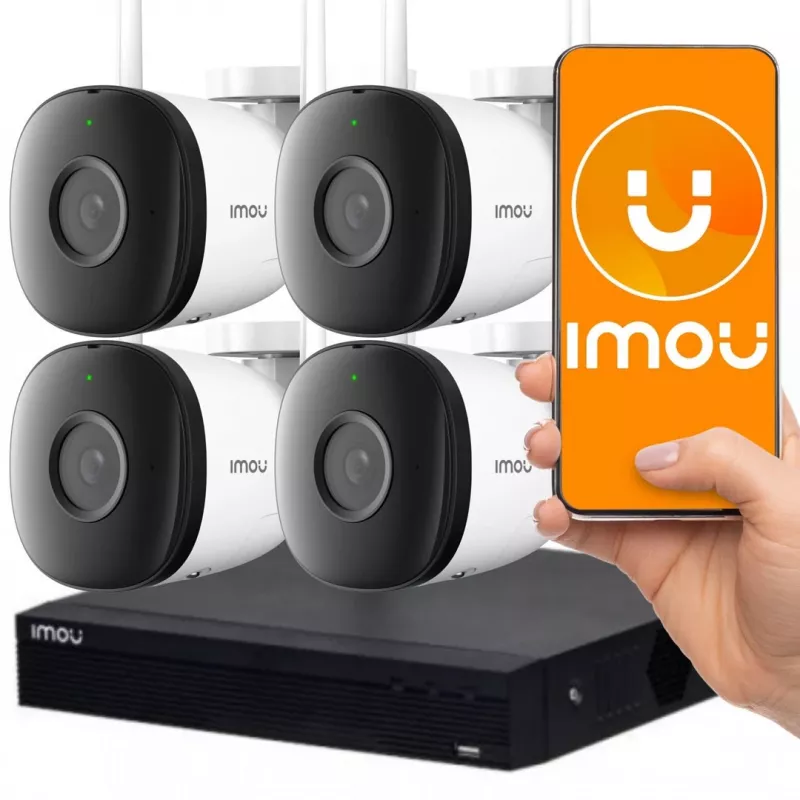

IMOU Wireless CCTV Kit - Lite combines a 2MP bullet camera and a 4‑channel NVR to provide continuous local recording and remote monitoring. The camera uses a 1/2.8" progressive CMOS sensor with H.265/H.264 compression, a 2.8 mm lens, 16x digital zoom and IR night vision up to 30 m. The system supports 2.4 GHz Wi‑Fi or a single 100 Mbps Ethernet port for network connection, MicroSD storage up to 256 GB, built‑in microphone and weatherproof (IP67) camera design.

Advantages

The kit offers full‑time recording on the included NVR (1 TB HDD) or on a MicroSD card in the camera, automatic pairing between camera and NVR, human and motion detection, geofencing and remote management through the Imou Life app (iOS, Android). Compact bullet camera dimensions and outdoor rating enable flexible placement and reliable operation in exposed locations.

Suitable for

• Home perimeter and yard surveillance
• Small business storefronts and entrances
• Garage, driveway and outdoor monitoring

Key specifications

• Camera type: bullet, outdoor (IP67)
• Image sensor: 1/2.8" progressive CMOS
• Resolution: 2 megapixel (1080P)
• Lens: 2.8 mm; 102° horizontal field of view
• Video compression: H.265 / H.264; up to 25 fps
• Night vision: IR illumination up to 30 m
• Audio: built‑in microphone
• Network: 2.4 GHz Wi‑Fi (IEEE 802.11 b/g/n) and 1 × 100 Mbps Ethernet (RJ45)
• Local storage: MicroSD up to 256 GB; NVR with built‑in 1 TB HDD and SATA input (supports up to 8 TB)
• NVR inputs: 4 channels at 1080P
• Power: DC 12 V
• Physical sizes: camera 147.7 × 74.2 × 74.2 mm; NVR 260 × 248 × 48 mm

How to use

Install the bullet camera outdoors at a location that provides the required field of view and mount it using the supplied bracket. Connect the camera to power (DC12V) and either pair it wirelessly to the NVR via 2.4 GHz Wi‑Fi or connect it to the network using the Ethernet port. Use the Imou Life app to complete initial setup, register the NVR, configure recording schedule and enable motion/human detection. Insert a MicroSD card into the camera for local camera recording or rely on the NVR's internal HDD for centralized continuous recording.

Recommendations

For reliable night‑time capture position the camera so IR illumination is not blocked by nearby objects; use the NVR’s HDD for long‑term retention and set appropriate motion detection zones in the Imou Life app to reduce false alerts.
