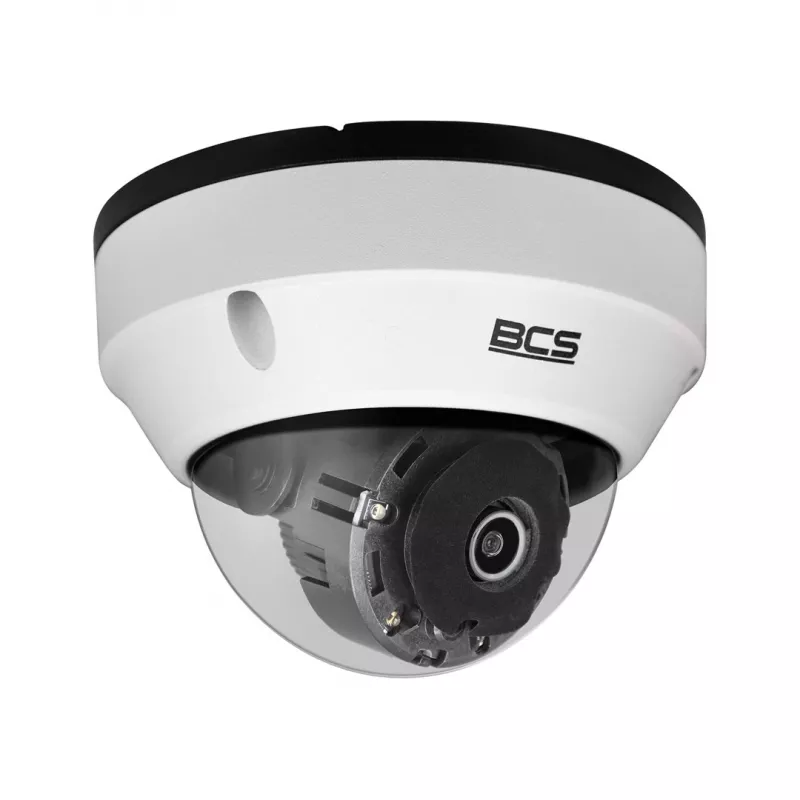

Câmara dome IP BCS 5MP BCS-U-DIP35FSR3

The BCS-U-DIP35FSR3 is a high-performance 5MP IP dome camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 2592x1944 resolution at 20 fps. With a 2.8mm fixed lens and 103° horizontal field of view, it covers wide areas. Equipped with IR LEDs for up to 30m night vision, H.265+ compression, and 120dB WDR, it ensures clear footage in challenging lighting. The camera supports PoE and DC 12V power, has IP67 weatherproofing and IK10 vandal resistance, and includes a built-in microphone and microSD slot (up to 256GB).

Advantages

High 5MP resolution with excellent low-light performance; robust metal housing with IK10 vandal resistance; easy installation with PoE; advanced compression saves bandwidth and storage.

Suitable for

• Retail stores and shopping centers
• Office buildings and warehouses
• Parking lots and outdoor perimeters
• Schools and public facilities

Key specifications

• Sensor: 1/2.7" 5MP CMOS
• Resolution: 2592x1944 (5MP) at 20fps
• Lens: 2.8mm fixed, FOV 103°
• IR range: up to 30m
• Compression: H.265+/H.265/H.264+/H.264/MJPEG
• WDR: 120dB
• Noise reduction: 3D DNR
• Power: PoE (802.3af) or DC 12V, max 4.9W
• Ingress protection: IP67
• Vandal resistance: IK10
• Audio: built-in microphone
• Storage: microSD up to 256GB
• Network: ONVIF Profile S/G/T
• Operating temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector. Ensure the microSD card is high endurance for continuous recording. Mount at a height of 3-5m for best coverage.
