Câmara de vigilância IP Axis 02168-001 box exterior 2688 x 1512 píxeis

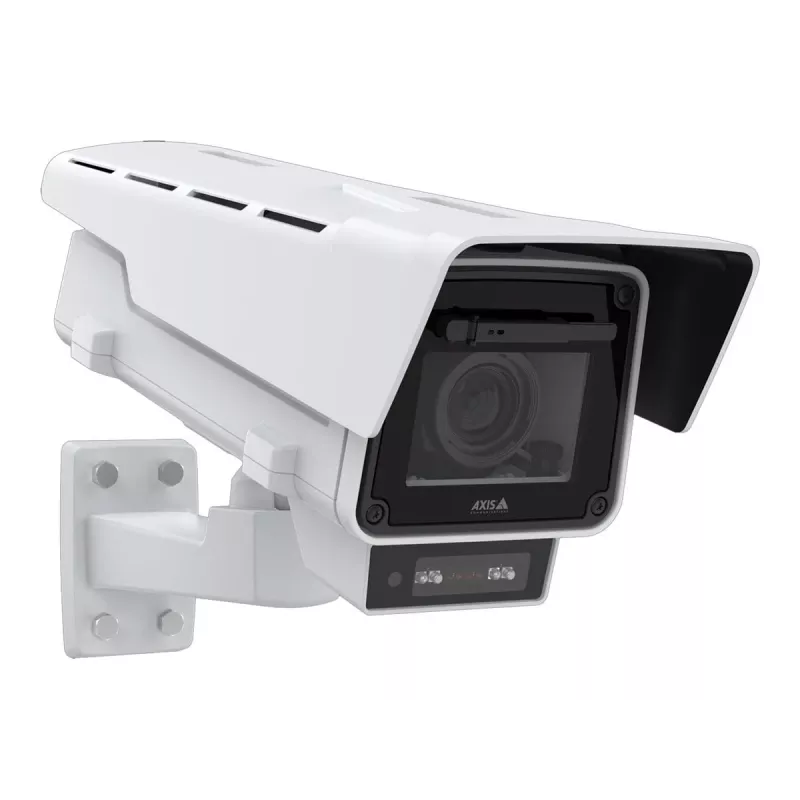

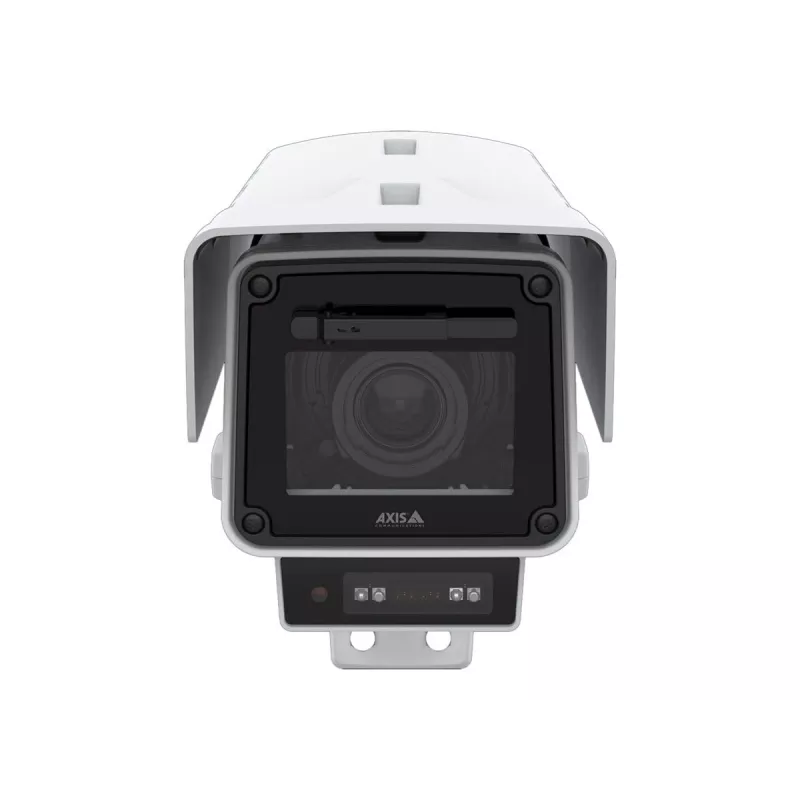

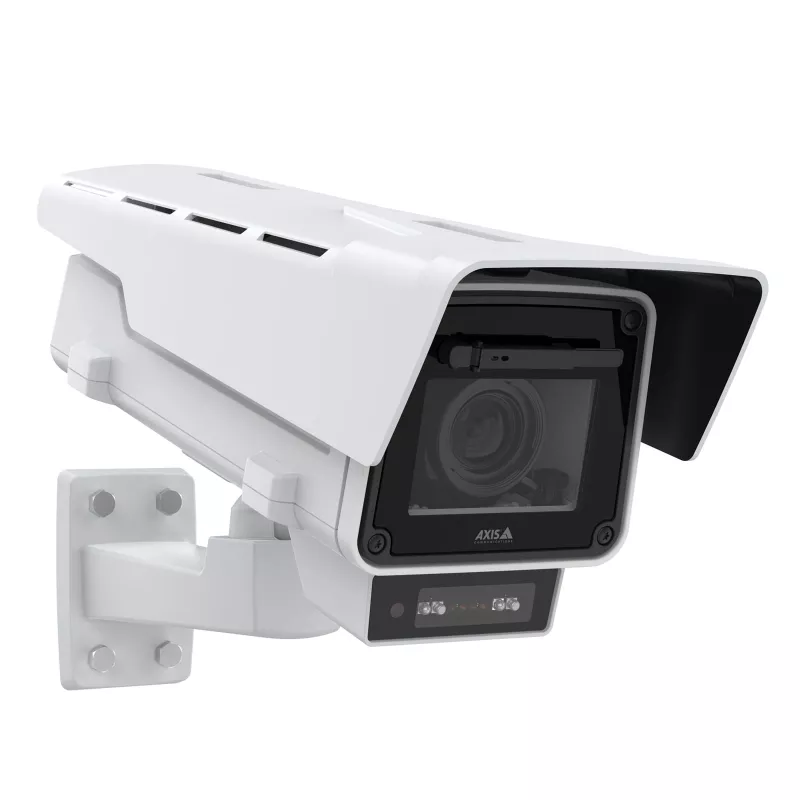

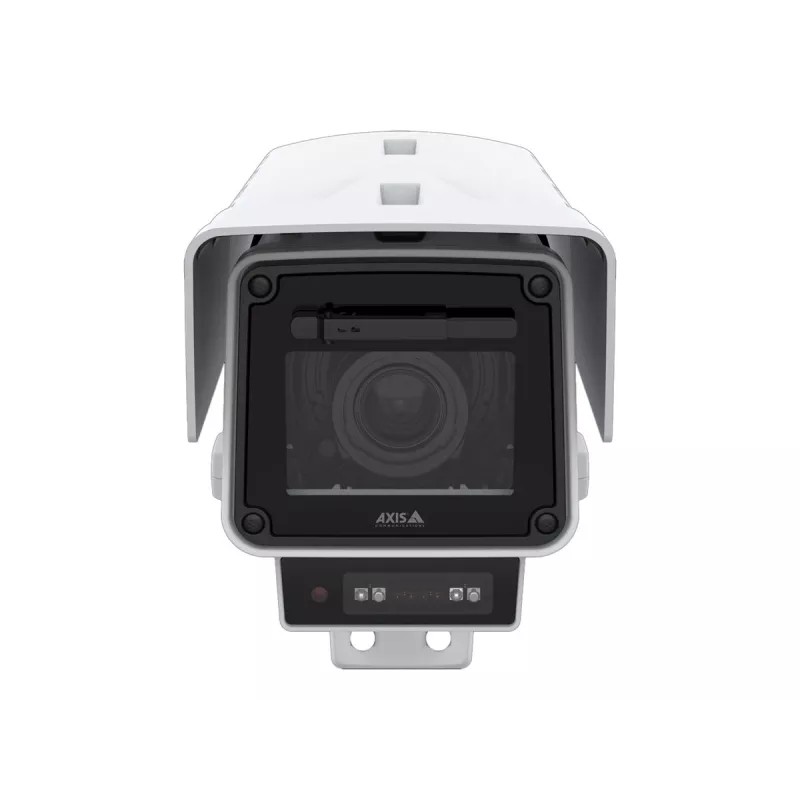

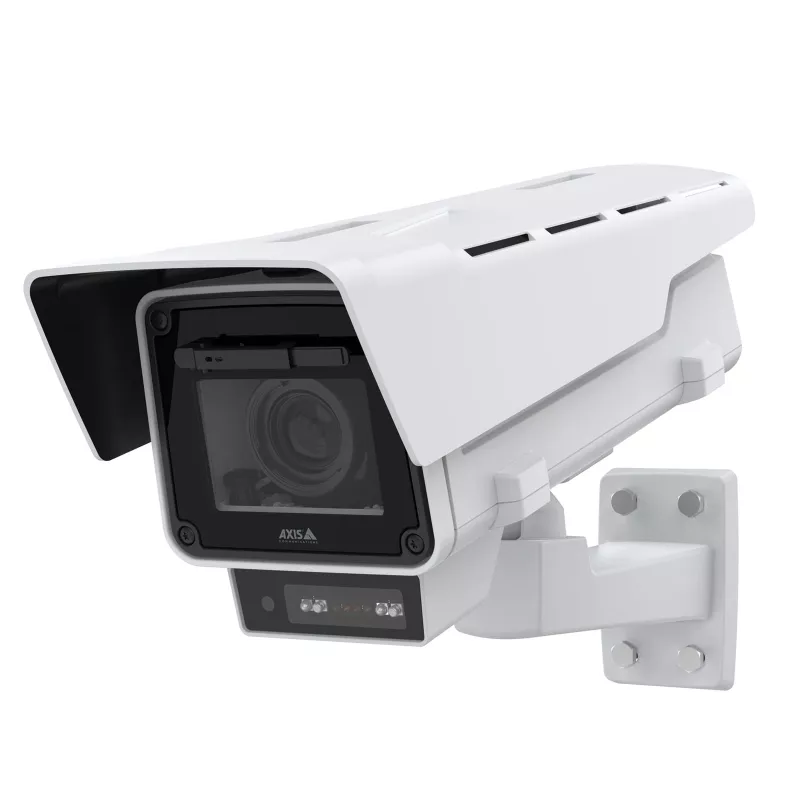

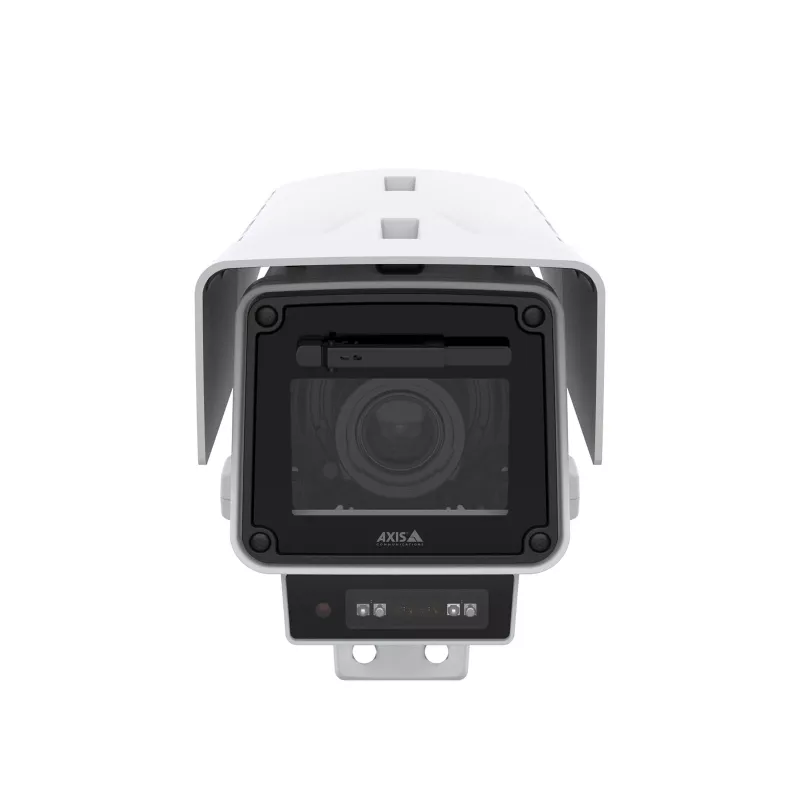

The AXIS Q1656-LE (MPN 02168-001) is an outdoor IP security camera in a box form factor that captures 2688 x 1512 (4 MP) video at up to 60 fps. It uses a 1/1.8" CMOS sensor with a 2.5x optical zoom (focal length 3.9–10 mm) and Lightfinder 2.0 to deliver clear images in low light. The camera is weather-ready, includes a built-in wiper for improved image quality in adverse weather, supports Power over Ethernet (PoE) and redundant DC power, and can be mounted on a ceiling or wall for wired outdoor surveillance.

Advantages

High-resolution 4 MP video at up to 60 fps combined with a 1/1.8" sensor and Lightfinder 2.0 provides improved detail and low-light performance. The integrated wiper maintains lens visibility in rain or snow. The camera runs on Axis’ latest system-on-chip, enabling advanced on‑edge processing and support for deep learning applications. AXIS Object Analytics adds refined object classification. Built-in security features protect against unauthorized access, and support for PoE and redundant DC power adds installation flexibility.

Suitable for

• Outdoor perimeter and facility surveillance
• Areas requiring high-resolution detail (license plate, face or object identification)
• Locations with challenging lighting conditions (low light, dawn/dusk)
• Sites exposed to weather where a lens wiper is beneficial

Key specifications

• Model: AXIS Q1656-LE (MPN 02168-001)
• Resolution: 2688 x 1512 (4 MP) at up to 60 fps
• Sensor: 1/1.8" CMOS
• Optical zoom / focal length: 2.5x optical zoom, 3.9–10 mm
• Minimum illumination: 0.05 lx
• Shutter speed: 1/47500 to 1 s
• Connectivity: Wired Ethernet (PoE supported)
• Power: PoE and redundant DC power support
• Mounting: Ceiling or wall
• Placement: Outdoor
• Weight: 4.4 kg
• Colour: White

How to use

Install the camera on a suitable outdoor ceiling or wall mount using the recommended mounting hardware and follow local wiring codes for the Ethernet and power connections. Configure network settings and security credentials through the Axis management interface. Adjust zoom and focus (3.9–10 mm) to frame the area of interest and verify image quality at different light levels. Enable AXIS Object Analytics and any required edge applications on the camera’s interface if object classification or deep learning functionality is needed.

Recommendations

Position the camera to minimise direct sunlight facing the lens and schedule regular checks of the wiper and housing seals. Use PoE for simplified installation where possible, and enable the camera’s built‑in security features and firmware updates to maintain system integrity.
