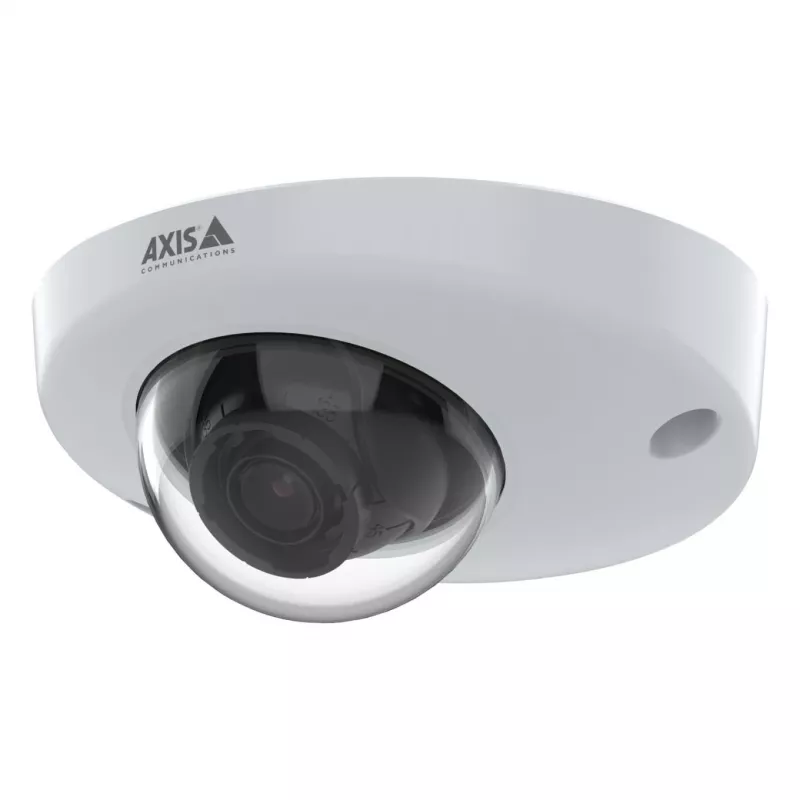

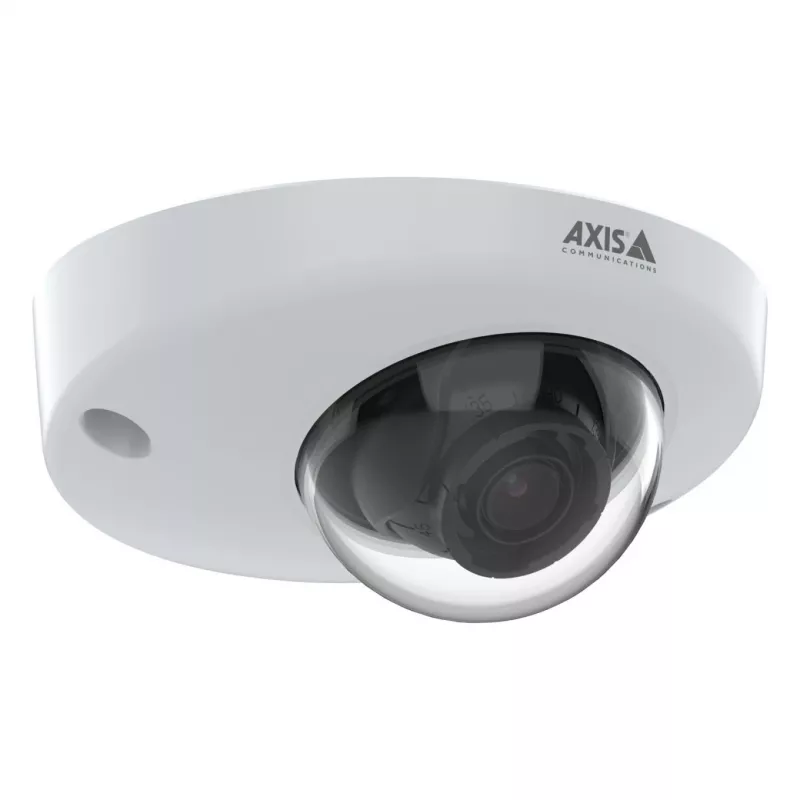

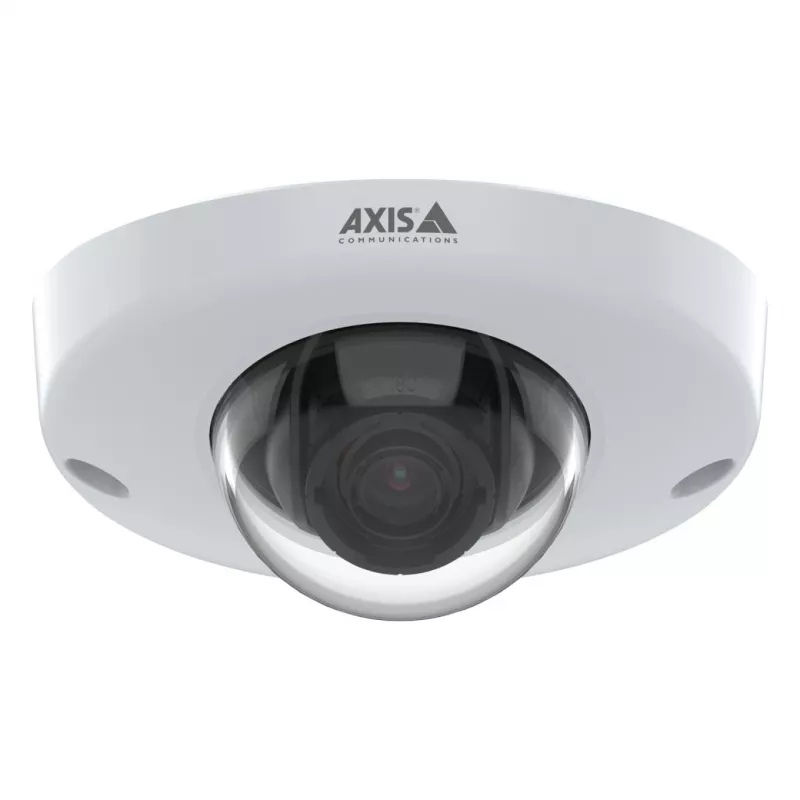

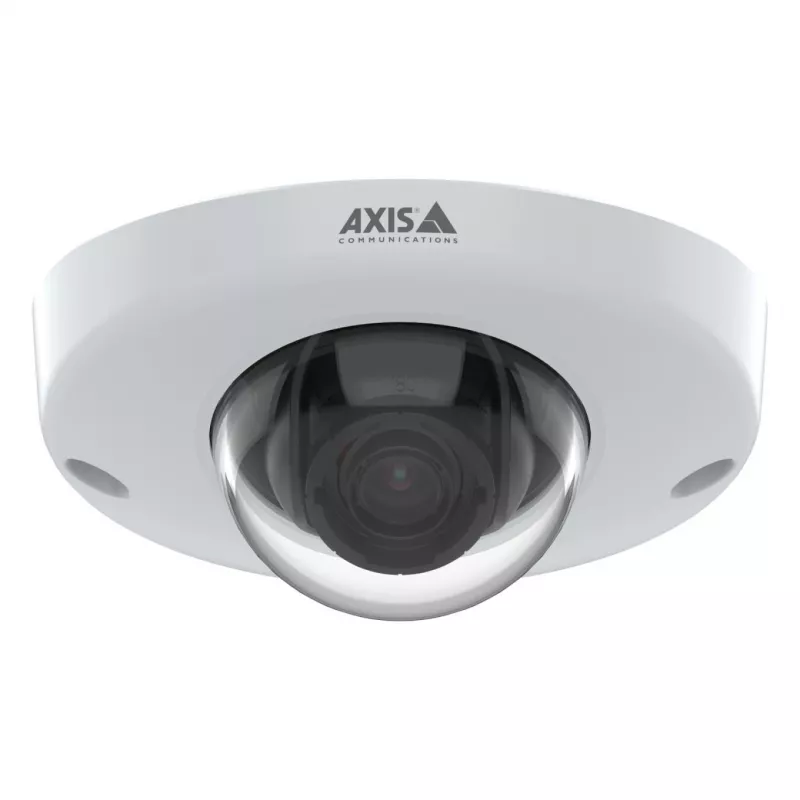

Câmara de vigilância IP Axis 02671-001 Dome 1920 x 1080

The AXIS 02671-001 Dome is a compact 2 MP (1920 x 1080) IP security camera designed for onboard and indoor surveillance. Built to meet rolling stock standards such as EN50155 and EN45545, the camera tolerates vibrations and a wide temperature range. When mounted in the AXIS TP3826-E housing it can also be installed on the outside of a vehicle. The camera combines Lightfinder and Forensic WDR technologies and supports Traffic Light Mode to help distinguish traffic signal colors in dark scenes. Optional M12 lenses are available to adapt the field of view for specific monitoring needs.

Advantages

The camera provides high-definition 1920 x 1080 resolution with a minimum illumination of 0.04 lx for improved low-light performance. Compliance with EN50155 and EN45545 ensures robustness for rolling stock environments, while mechanical tolerance to vibration and wide temperature range increases reliability. Lightfinder and Forensic WDR enhance image detail in challenging lighting, and Traffic Light Mode improves recognition of traffic signal colors. Wired Ethernet connectivity and wall-mount compatibility simplify installation, and a compact white dome design supports discreet indoor placement.

Suitable for

• Onboard surveillance in trains, trams, or buses (with suitable housing)
• Indoor security monitoring in stations, vehicle interiors, or public transport facilities
• Low-light or high-contrast areas where Lightfinder and Forensic WDR improve detail
• Situations requiring traffic light color recognition in dark scenes

Key specifications

• Model: AXIS 02671-001
• Sensor resolution: 1920 x 1080 (2 MP)
• Minimum illumination: 0.04 lx
• Frame rate: up to 30 fps
• Lens viewing angle (horizontal): 88° (optional M12 lenses available)
• Rotation angle: 175°
• Mounting type: Wall; compatible with AXIS TP3826-E housing for external vehicle mounting
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Placement supported: Indoor; suitable for onboard use when housed
• Standards: EN50155, EN45545
• Product colour: White
• Weight: 0.241 kg

How to use

Mount the dome camera on a wall or install it in the AXIS TP3826-E housing for external vehicle mounting following the manufacturer’s installation instructions. Connect the camera to a wired Ethernet network for power and data (PoE if supported by the system). Configure image settings such as Lightfinder, Forensic WDR and Traffic Light Mode through the camera’s web interface or management software, and select an appropriate M12 lens if a different field of view is required. Position and angle the dome to cover the intended area and verify video quality at the required frame rate.

Recommendations

For reliable onboard operation, use the AXIS 02671-001 in combination with the AXIS TP3826-E housing and certified mounting hardware. Select optional M12 lenses to match monitoring requirements, enable Forensic WDR and Lightfinder for scenes with challenging lighting, and perform regular checks for correct mounting and connection. Ensure integration with a compatible VMS and network infrastructure that supports the camera’s resolution and frame rate.
