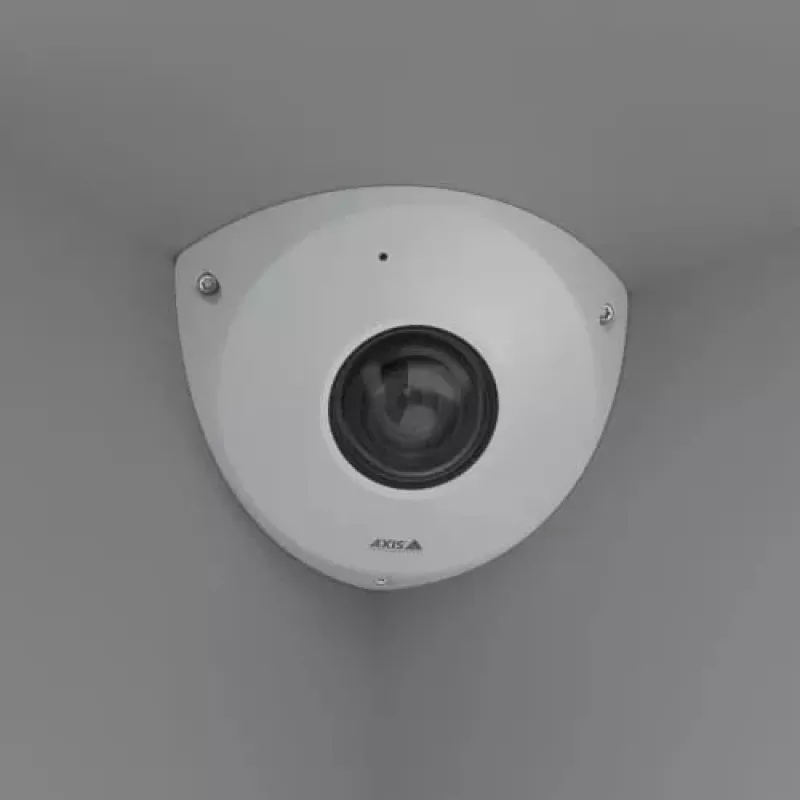

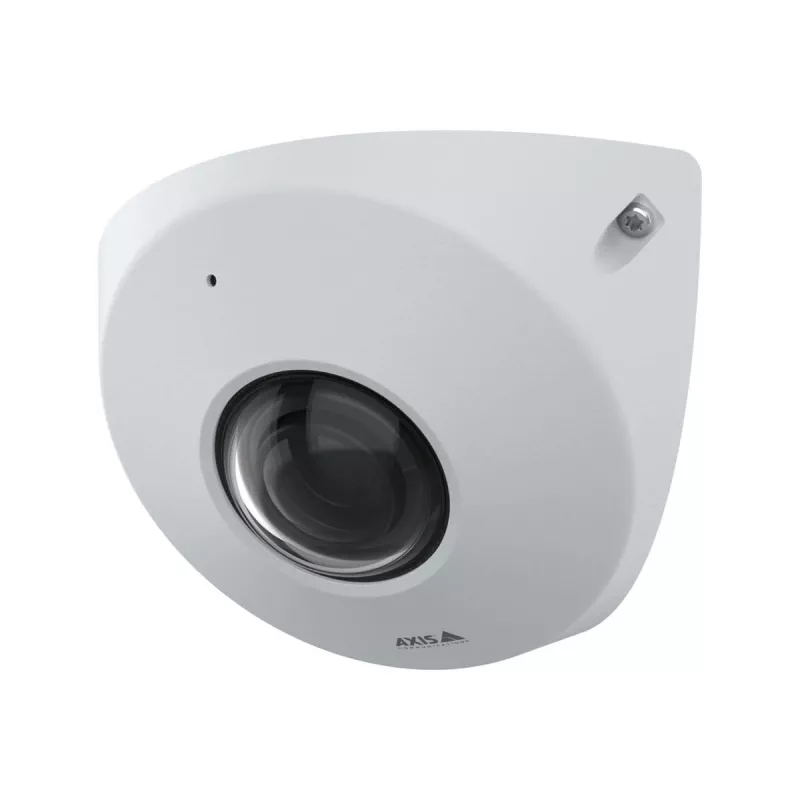

Câmara de vigilância IP Axis P9117-PV 2160x2160 interior com fios teto branco

AXIS P9117-PV is an anti-ligature indoor corner camera that provides a 360° panoramic view with no blind spots. Designed for ceiling-corner installation, the compact, vandal-resistant camera offers 6 MP resolution (2160 x 2160) and a wide field of view to cover confined spaces such as elevators and stairwells. It is easy to clean and maintain and includes a built-in microphone and support for edge analytics.

Advantages

The camera delivers high-quality video with Axis Lightfinder 2.0 for more realistic, saturated colors and improved detail on moving objects, plus Axis Forensic WDR for balanced images in scenes with both dark and bright areas. Built on an Axis system-on-chip, it includes Axis Edge Vault for hardware-based cybersecurity and supports AI analytics at the edge, including AXIS Object Analytics. The device is compact, vandal-resistant (IK10-rated), easy to install using screw gaskets, and has an abrasion- and chemical-resistant removable front cover for thorough cleaning.

Suitable for (tasks / use cases)

• Surveillance in elevators and lift lobbies
• Monitoring stairwells and corridors
• Security in confined public indoor spaces prone to vandalism
• Sites requiring edge analytics such as object detection and audio analytics

Key specifications

• Resolution: 6 MP (2160 x 2160)
• Lens / field of view: panoramic corner design, wide horizontal coverage
• Minimum illumination: 0.04 lx
• Form factor and mounting: corner/ceiling-mounted indoor camera
• Durability: vandal-resistant casing (IK10), abrasion- and chemical-resistant front cover
• Connectivity: wired IP camera
• Security and analytics: Axis Edge Vault, AXIS Object Analytics preinstalled, supports AXIS Audio Analytics
• Built-in microphone
• Manufacturer part number (MPN): 02864-001, EAN: 7331021085510

How to use

Mount the camera in a ceiling corner using the supplied screws and screw gaskets to hold fasteners in place during installation. Connect the camera to the network with a wired IP connection and configure it via the Axis management software or compatible VMS. Enable available analytics, such as AXIS Object Analytics and AXIS Audio Analytics, through the device interface. Remove the front cover when deeper cleaning is required and follow the manufacturer instructions for handling the abrasion- and chemical-resistant window.

Recommendations

Install the camera in elevated corner positions inside elevators, stairwells, or corridors to achieve full panoramic coverage without blind spots. Use the IK10-rated casing and optional AXIS TP9801 Cover Steel accessory in high-risk vandalism areas. For reliable analytics, ensure good network connectivity and keep firmware updated via Axis management tools.
