Câmara de vigilância IP AXIS Q9227-SLV Corner 2880×2160 interior teto, 1/1,7 polegadas CMOS, 115°×89,2°, 30 fps

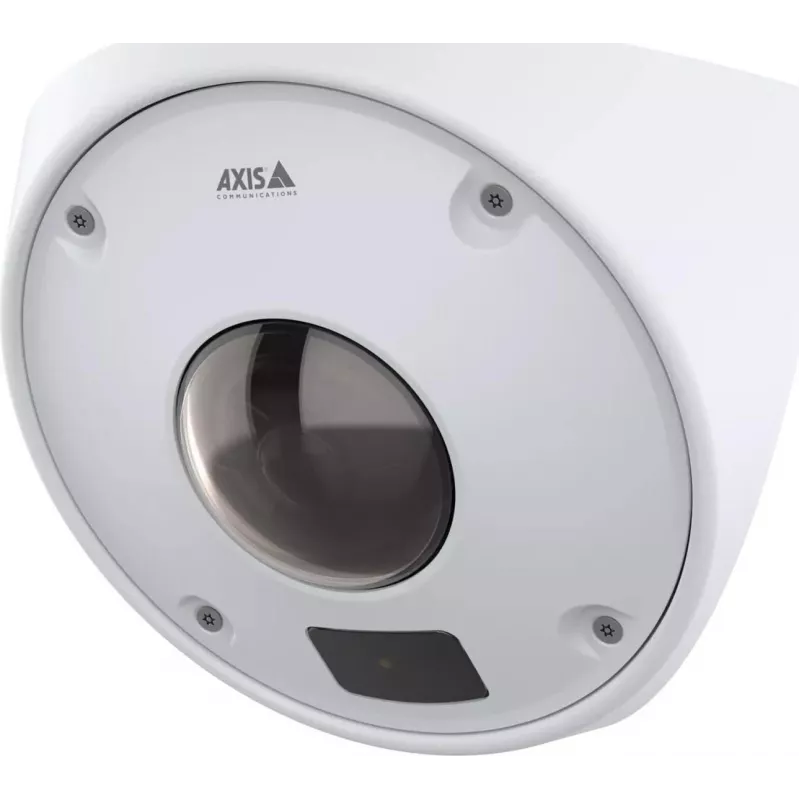

AXIS Q9227-SLV Corner is a compact, ligature-resistant indoor IP security camera for ceiling mounting. It records up to 5 MP (2880×2160) at 30 fps using a 1/1.7" CMOS sensor and provides 115° horizontal and 89.2° vertical coverage. The unit includes a hidden speaker and microphone with an on/off switch and voice enhancer, invisible 940 nm IR illumination for surveillance in complete darkness, and a white LED for color detail. The camera supports H.264/H.265 with Axis Zipstream to reduce bandwidth and storage needs, and is rated for harsh conditions with IK11, IP66, IP6K9K and IP69 protection. Lightfinder 2.0 and Forensic WDR improve image quality in challenging light.

Advantages

The camera combines ligature-resistant mechanical design with on-device AI analytics and strong hardware-based cybersecurity. It offers two-way audio communication through a concealed speaker and microphone, multiple illumination options for dark environments, and built-in DLPU to run advanced analytics at the edge. Axis Edge Vault provides secure cryptographic key storage and FIPS 140-3 Level 3 certified operations. Zipstream with H.264/H.265 lowers bandwidth and storage while Lightfinder 2.0 and Forensic WDR maintain color fidelity and detail in low light.

Suitable for

Key specifications

How to use

Install the camera on the ceiling corner according to the mounting instructions, ensuring the tilt is set within the −10° to 10° range for intended coverage. Connect to a wired Ethernet network for power and data (PoE where supported). Configure video stream, compression (H.264/H.265) and Axis Zipstream settings in the camera’s management interface. Enable and adjust on-device analytics (AXIS Object Analytics and AXIS Audio Analytics) and set privacy masks if required. Use the on/off control for the internal microphone and speaker and test two-way audio and voice enhancer before operational use.

Recommendations

For occupant safety and privacy, select the stainless steel or white stainless steel model to match the environment, enable AXIS Live Privacy Shield for dynamic masking where needed, and use the invisible 940 nm IR for non-intrusive night surveillance. Follow facility cleaning protocols; the camera is designed to withstand detergent and graffiti remover. Maintain firmware updates and secure key storage via Axis Edge Vault to preserve cybersecurity.
