Câmara de vigilância IP Bosch NBE-3703-AL 2592 x 1944 píxeis

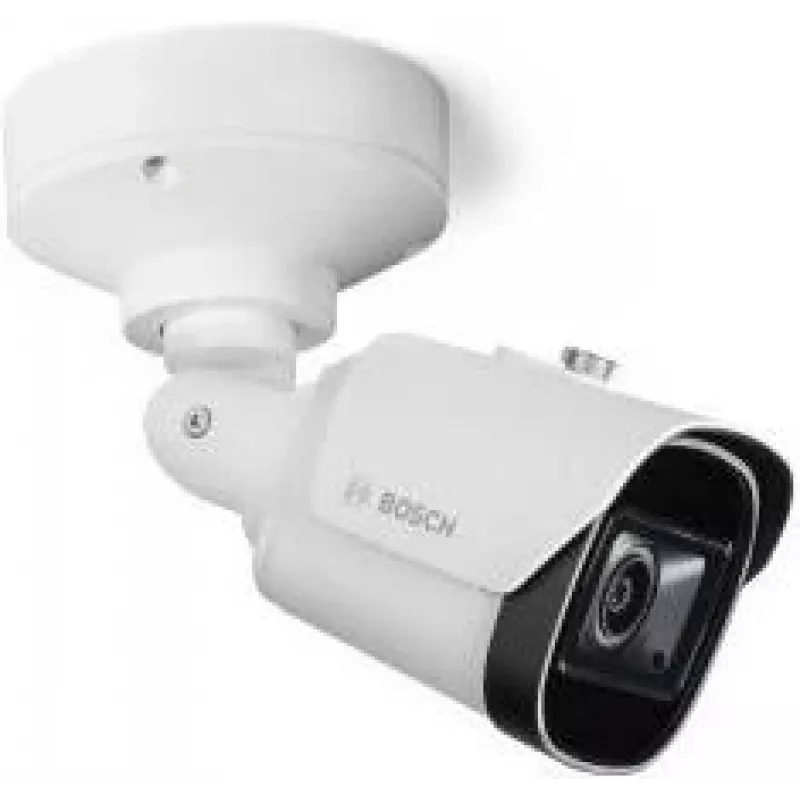

The Bosch NBE-3703-AL is a compact IP security camera designed for general outdoor surveillance and discreet installation. It uses a 1/2.7" CMOS sensor with HDR at HD 5 MP resolution (2592 x 1944) and an integrated varifocal lens (3.3–10.2 mm) to deliver sharp, detailed images with a flexible field of view. IR illumination extends operation in low-light or no-light situations. The camera supports wired Ethernet connectivity and can be mounted on ceilings or walls for indoor or outdoor placement.

Advantages

The camera combines HDR imaging and a varifocal lens to provide clear day/night surveillance and adaptable coverage. Built-in IVA Pro Buildings offers deep learning–based detection to reduce false alarms by triggering only on relevant events. TPM (Trusted Platform Module) protects stored certificates and cryptographic keys for secure authentication and encryption. Robust mechanical and environmental ratings (IK10 impact protection and IP66 ingress protection) ensure resilience against vandalism and weather.

Suitable for

• General outdoor perimeter monitoring
• Entrance and access control areas
• Parking lots and driveways
• Commercial and public spaces requiring vandal-resistant cameras

Key specifications

• Resolution: 2592 x 1944 pixels (HD 5 MP)
• Image sensor: 1/2.7" CMOS with HDR
• Lens: Integrated varifocal 3.3–10.2 mm
• Frame rate: up to 30 fps
• Mounting: Ceiling or wall
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Protection ratings: IK10 (impact), IP66 (ingress)
• Security: TPM for certificate/key storage
• Color: White; Weight: 1.385 kg

How to use

Install the camera on a suitable ceiling or wall mounting bracket, orient the varifocal lens to achieve the desired field of view, and secure the unit against tampering. Connect the device to a PoE-capable Ethernet network or provide power and network separately according to installation guidelines. Configure image settings such as exposure, white balance (manual), and HDR via the camera’s management interface. Enable IVA Pro Buildings and set detection rules to match the monitored scene, then integrate the camera with your video management system or recorder.

Recommendations

Position the camera to minimize direct light sources in the frame and adjust the varifocal lens to balance coverage and detail. Use IVA Pro Buildings configuration to tailor deep learning detection to the site and reduce false alarms. Ensure cable entry points are sealed and mounted hardware is tightened to maintain IP66 and IK10 protection.
