Câmara de vigilância IP Bosch NDE-3703-AL Dome 2592 x 1944

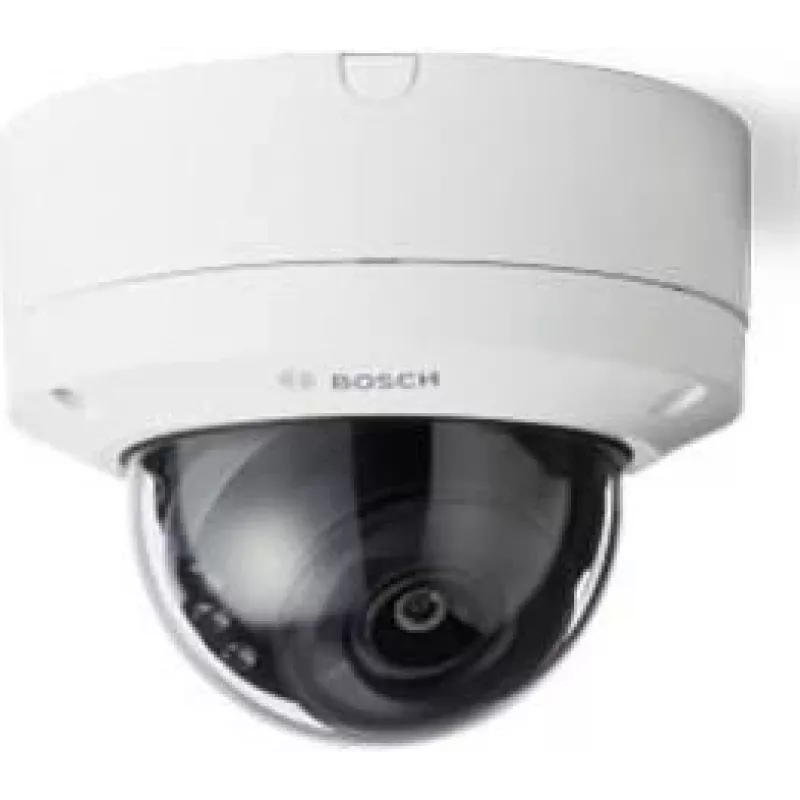

The FLEXIDOME outdoor 3100i IR (Bosch NDE-3703-AL) is an IP security dome camera for indoor and outdoor surveillance that captures detailed 5 MP images (2592 x 1944) with a varifocal lens. The camera supports wired Ethernet connectivity, a CMOS sensor and manual white balance options, and includes IR illumination for low-light operation. It is designed for ceiling mounting and is rated IK10 and IP66 for impact and ingress protection.

Advantages

The camera delivers high-resolution, sharp images with flexible field of view thanks to its varifocal 3.3–10.2 mm lens and 5 MP sensor. Integrated IR enables reliable monitoring in low or no ambient light. Built-in IVA Pro Buildings uses deep-learning-based analytics to reduce false alarms by triggering only relevant events. TPM functionality secures storage of certificates and keys for authentication and encryption. The durable white dome housing provides vandal and weather resistance suitable for outdoor installations.

Suitable for

• Perimeter and outdoor area surveillance
• Entrances, lobbies and ceiling-mounted indoor monitoring
• Retail and commercial premises requiring reliable analytics
• Sites needing vandal-resistant, weatherproof cameras

Key specifications

• Model: Bosch NDE-3703-AL (FLEXIDOME outdoor 3100i IR)
• Resolution: 2592 x 1944 (5 MP)
• Lens: Varifocal 3.3–10.2 mm
• Sensor: CMOS
• Frame rate: up to 30 fps
• Mounting: Ceiling
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Protection rating: IK10, IP66
• Color: White
• Weight: 0.7895 kg

How to use

Mount the dome camera on a suitable ceiling surface following the manufacturer’s mounting instructions and use compatible accessories for different mounting options. Connect the camera to a wired Ethernet network for power and data (PoE if supported by your system). Configure image settings such as manual white balance and sodium lamp correction in the camera web interface or management software. Enable IVA Pro Buildings analytics and adjust detection rules to match the monitored scene.

Recommendations

Install the camera at a height and angle that provide the required field of view and minimize obstructions; verify IR coverage in low-light conditions and test analytics thresholds to reduce false alarms. Ensure certificates and keys are managed according to security policies to take advantage of TPM protection.
