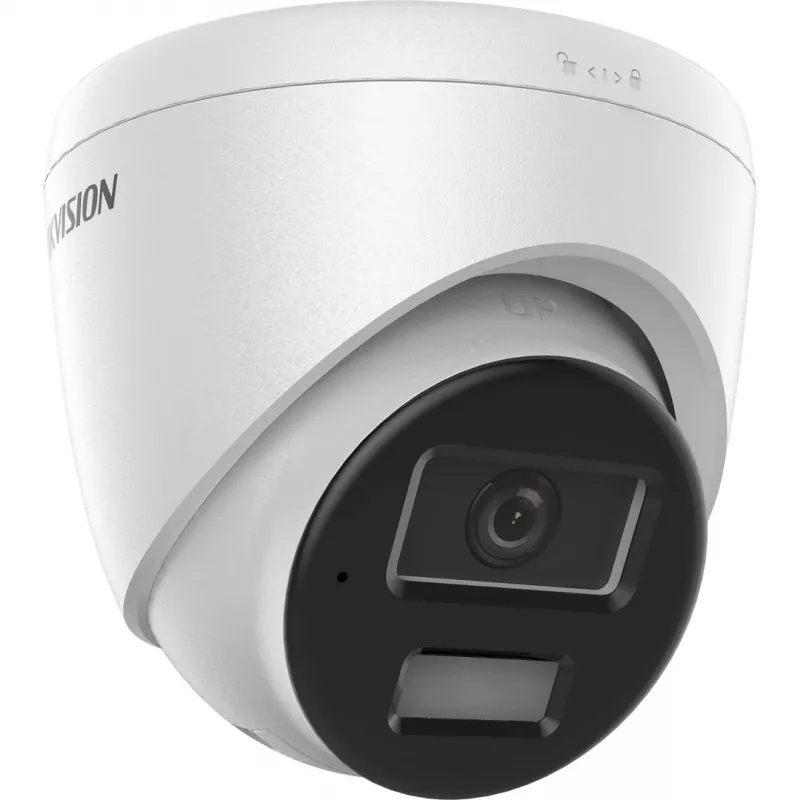

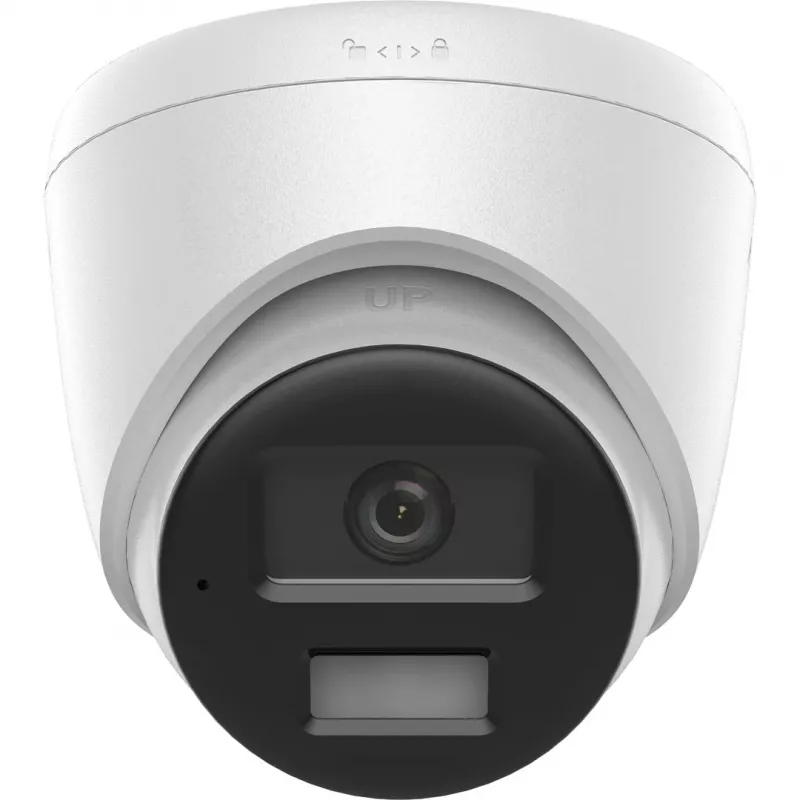

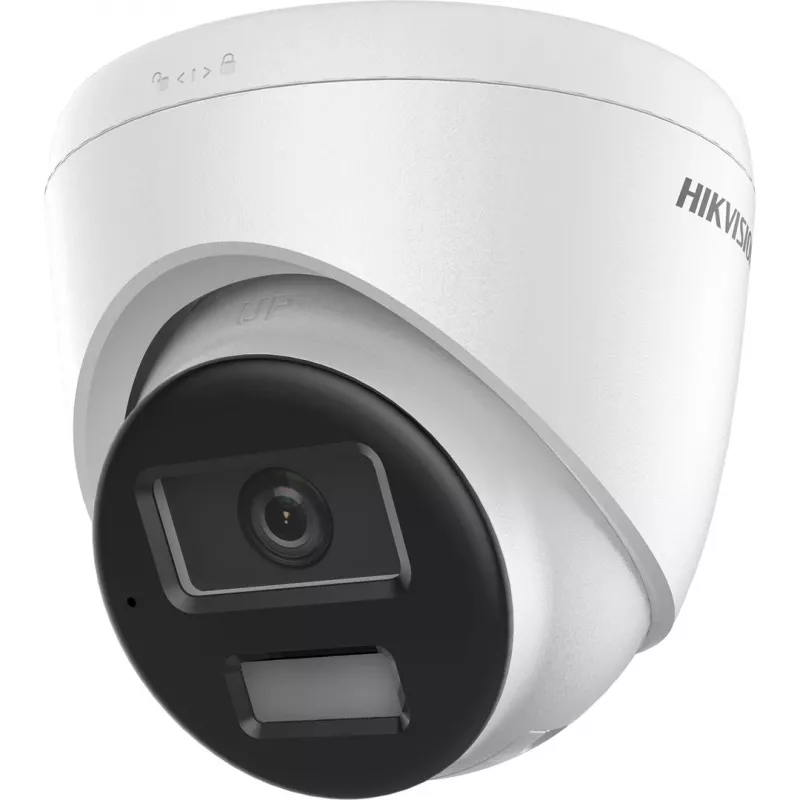

Câmara de vigilância IP Dome Hikvision DS-2CD1343G2-LIUF/SL 4 MP, 2,8 mm, PoE, IP67, 2560×1440, WDR 120 dB

Hikvision DS-2CD1343G2-LIUF/SL is a 4 MP outdoor IP security dome camera with a 2.8 mm fixed lens and a maximum resolution of 2560×1440. The metal housing with IP67 rating and support for Power over Ethernet (IEEE 802.3af) provides a dependable installation for outdoor surveillance. Key imaging features include 120 dB Wide Dynamic Range (WDR), H.265+ video compression, day/night mode and IR/white LED illumination for night vision up to 30 m. The camera includes a built-in microphone, supports microSD cards up to 512 GB, and offers motion detection and Region of Interest (ROI) encoding. Operational temperature range is −30 to 60 °C.

Advantages

The metal dome housing with IP67 protection ensures dust-tight and water-resistant operation suitable for outdoor placement. PoE (IEEE 802.3af) simplifies installation by delivering data and power over a single network cable. High 4 MP resolution combined with 120 dB WDR and H.265+ encoding yields clear images in scenes with strong contrast while keeping storage and bandwidth usage lower. Night vision with IR/white LEDs and a minimum illumination of 0.005 lx supports monitoring in very low light conditions. Built-in audio, motion detection and support for up to 32 users provide flexible surveillance and monitoring options.

Suitable for

• Outdoor perimeter and entrance monitoring
• Commercial properties and small business surveillance
• Parking lots and driveways
• Residential outdoor security

Key specifications

• Type: IP security camera, dome form factor
• Image sensor: 1/3" CMOS, progressive scan
• Maximum resolution: 2560 × 1440 (4 MP)
• Lens: 2.8 mm fixed, diagonal 114°, horizontal 98°, vertical 54°
• Wide Dynamic Range (WDR): 120 dB
• Video compression: H.265+
• Night vision: IR/white LEDs, effective up to 30 m, minimum illumination 0.005 lx
• Storage: microSDHC support up to 512 GB
• Power: Power over Ethernet (PoE) IEEE 802.3af, DC 12 V support
• Connectivity: Wired Ethernet, 10/100 Mbit/s, RJ-45
• Operating conditions: −30 to 60 °C, relative humidity 0–95%
• Dimensions & weight: diameter ~110 mm, height 102.7 mm, weight 340 g
• Security & features: motion detection, ROI encoding, password protection, heartbeat, mirror
• Audio: built-in microphone, sample rate 8/16 kHz, SNR 52 dB

How to use

Mount the dome camera on a stable surface following the manufacturer’s installation instructions and ensure the housing seals are intact for outdoor use. Connect the camera to a PoE-capable switch or injector using an Ethernet cable (10/100 Mbit/s) to provide both power and network connectivity; alternatively provide DC 12 V power if PoE is not available. Configure network settings, user accounts (up to 32 users supported) and desired recording options in the camera’s web interface or compatible NVR/software. Insert a microSD card (up to 512 GB) for local recording if required. Adjust image settings such as WDR, exposure and ROI, and enable motion detection and audio if needed.

Recommendations

Avoid direct and continuous contact with water on the camera connectors and openings to prevent electrical damage; maintain seals and cable glands and perform periodic inspections. For reliable night-time identification, position the camera to keep subjects within the specified detect/observe/recognize distances and verify illumination and IR/white LED coverage during installation.
