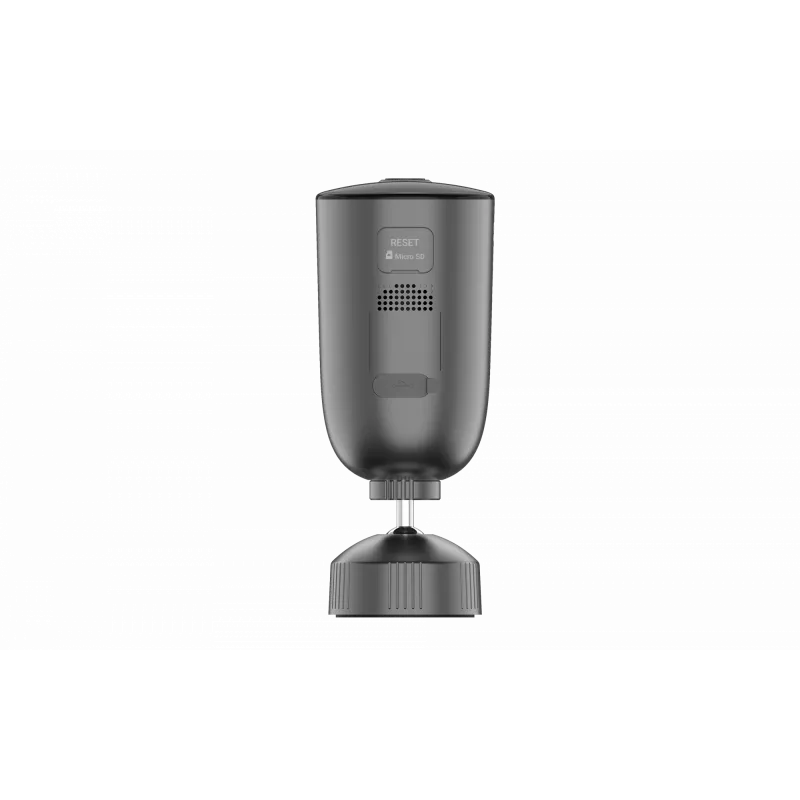

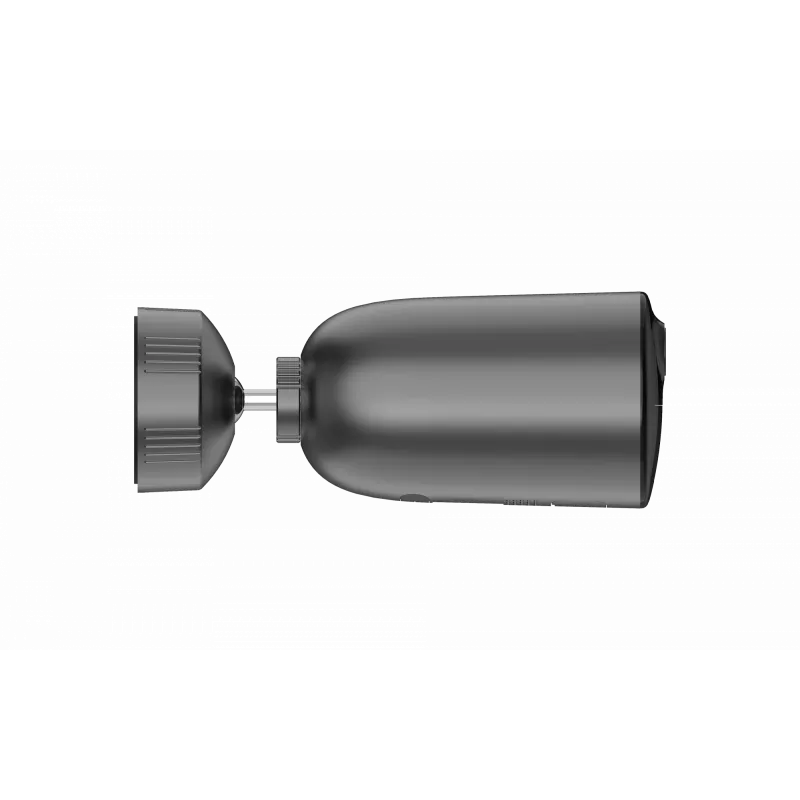

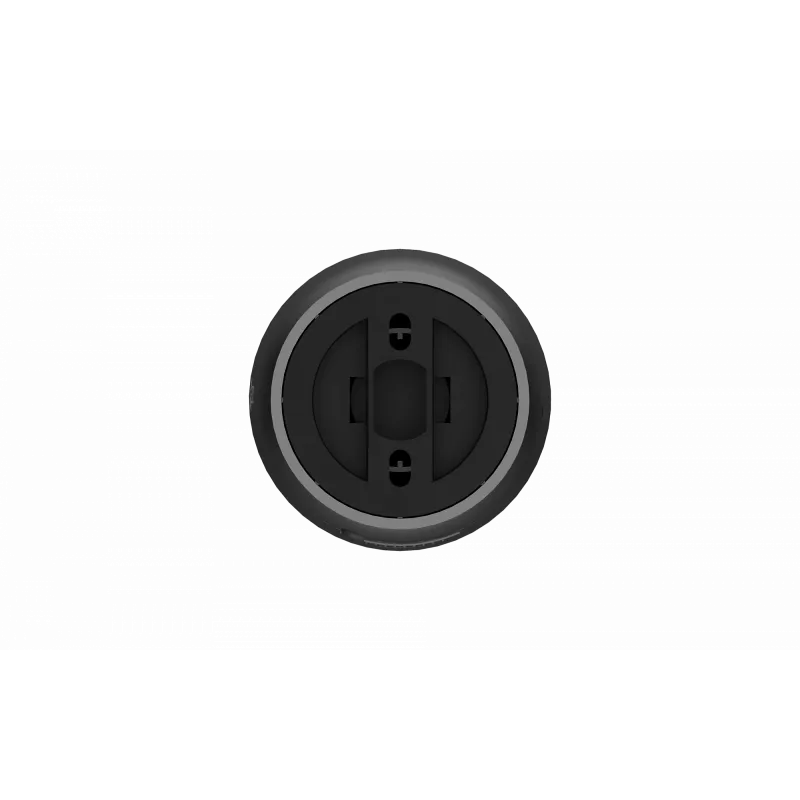

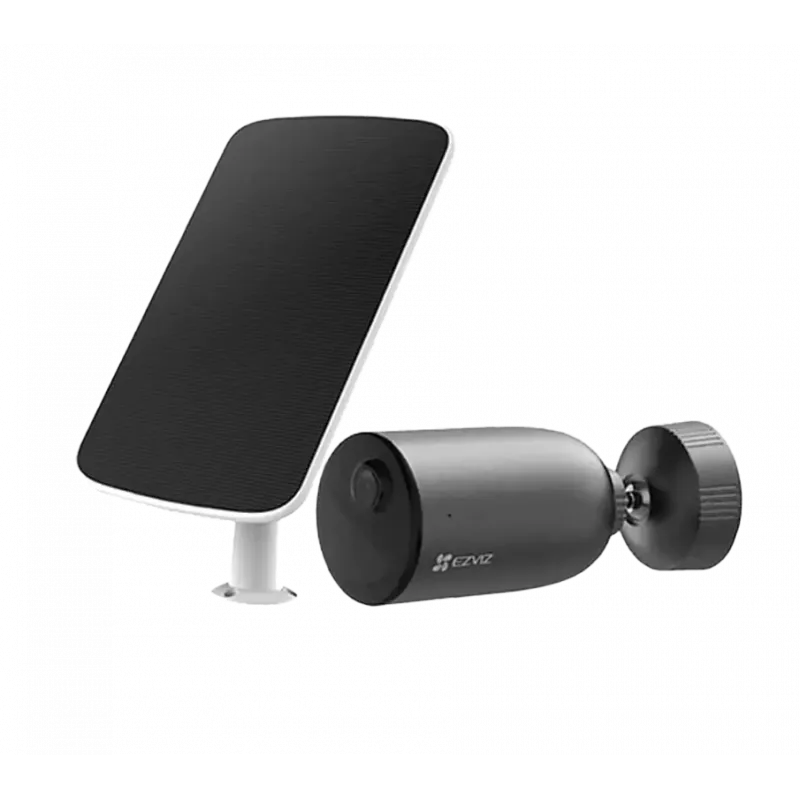

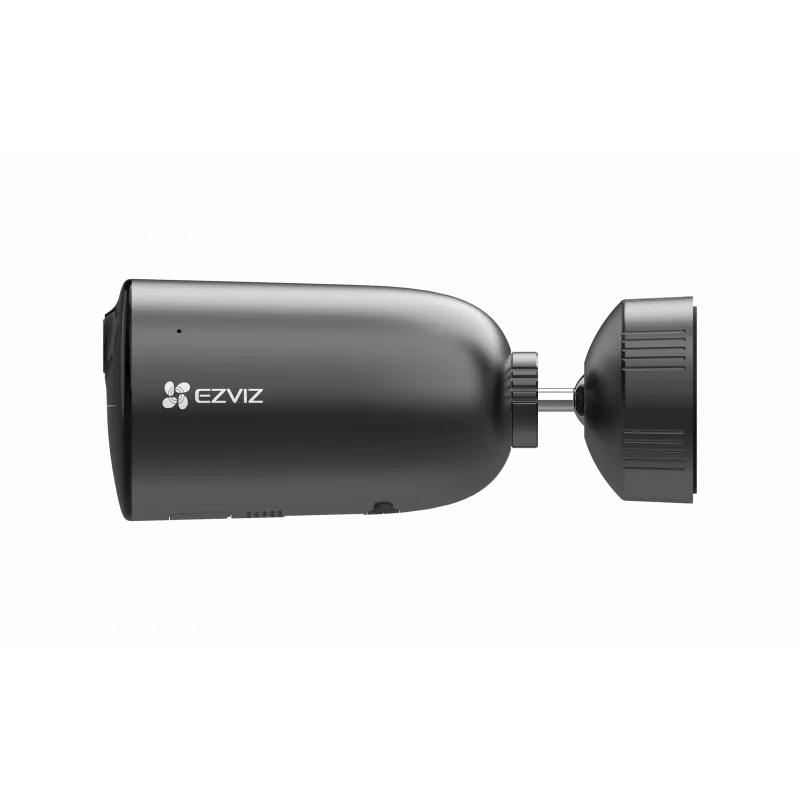

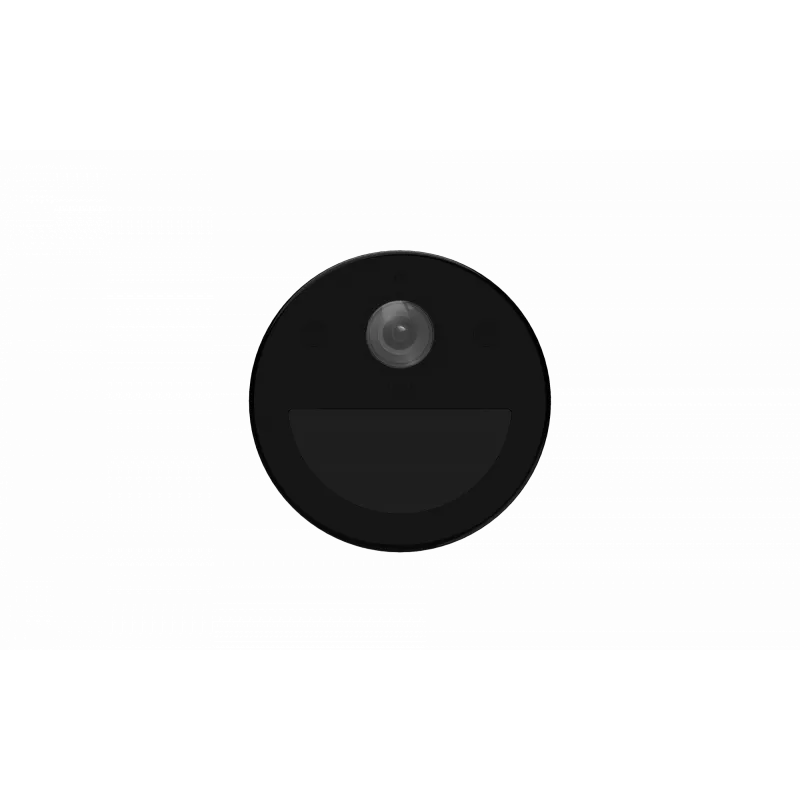

Câmara de vigilância IP EZVIZ EB3 4G Kit 2304 x 1296 píxeis

The EZVIZ EB3 4G Kit is an outdoor IP security camera with 2304 x 1296 pixel (3 MP) resolution and a 1/2.8" CMOS sensor with a fixed 2.8 mm focal length. Designed for ceiling or wall installation, the camera offers a 108° horizontal, 56° vertical and 130° diagonal field of view, wireless (Wi‑Fi) connectivity and 15 fps video capture. The unit is weather protected to IP65 standards and includes infrared night vision up to 15 m for low‑light monitoring.

Advantages

The EZVIZ EB3 4G provides high‑resolution 3 MP video in a compact bullet form factor suitable for outdoor use. Wireless connectivity simplifies installation where Ethernet is not available, while the fixed 2.8 mm lens delivers a wide field of view for area monitoring. IP65 rating and built‑in IR illumination support reliable operation in varied weather and low‑light conditions. The camera is lightweight (approximately 222.7 g) and supports video motion detection for event‑based recording.

Suitable for

• Monitoring building entrances and driveways
• Perimeter and yard surveillance
• Small business exterior monitoring
• Areas without wired LAN access where Wi‑Fi is available

Key specifications

• Sensor: 1/2.8" CMOS
• Resolution: 2304 x 1296 pixels (3 MP)
• Lens: fixed 2.8 mm
• Field of view: 108° (H) / 56° (V) / 130° (D)
• Frame rate: 15 fps
• Night vision: IR up to 15 m
• Connectivity: Wireless Wi‑Fi (no Ethernet LAN)
• Mounting: ceiling or wall
• Ingress protection: IP65
• Colour: Black
• Weight: 0.2227 kg

How to use

Mount the camera on a suitable exterior wall or ceiling using the included hardware, ensuring the chosen location provides Wi‑Fi coverage. Power the device according to the kit instructions, then connect it to the EZVIZ app or compatible management software via Wi‑Fi for initial setup. Adjust the camera angle to cover the intended area, enable motion detection if required, and configure recording, alerts and storage options through the app.

Recommendations

Install the camera under an eave or sheltered position where possible to reduce direct exposure to heavy rain and debris. Verify Wi‑Fi signal strength at the installation point and use a Wi‑Fi extender if coverage is weak. Regularly check firmware updates in the EZVIZ app to maintain security and functionality.
