Câmara de vigilância IP Hikvision DS-2CD2683G2-IZS 3840 x 2160

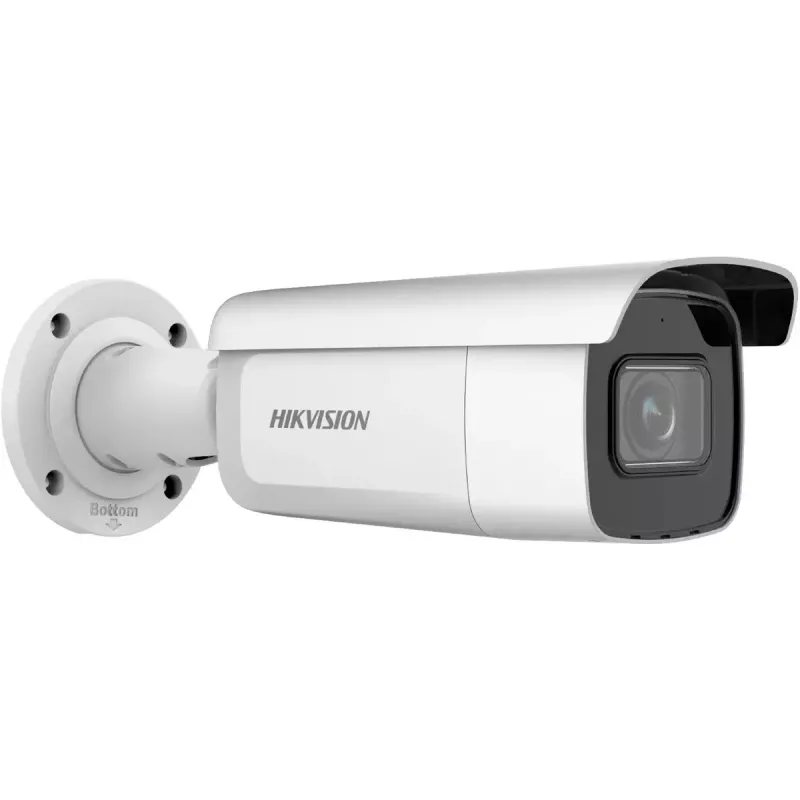

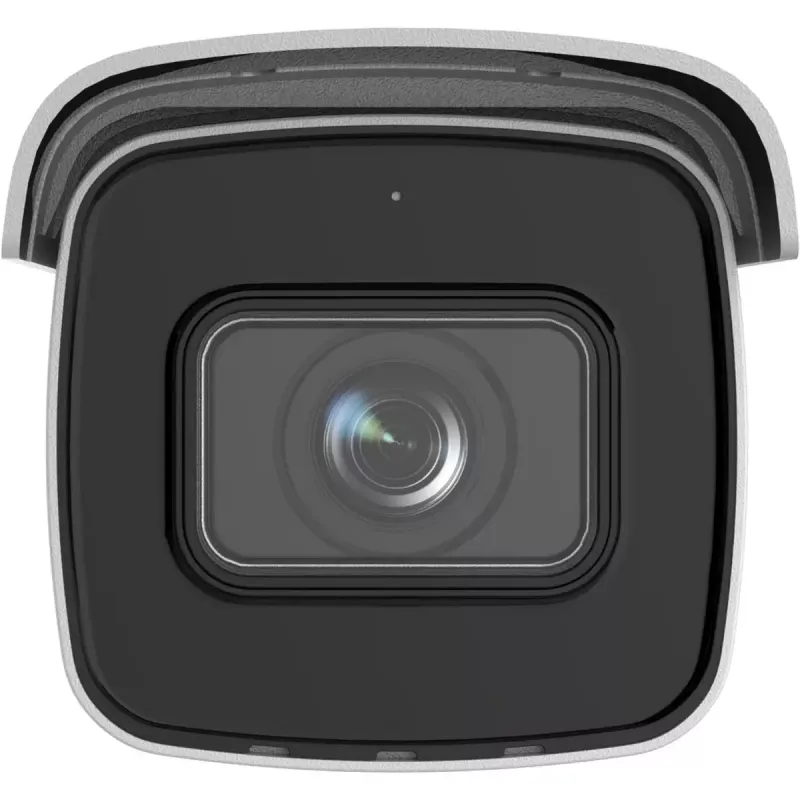

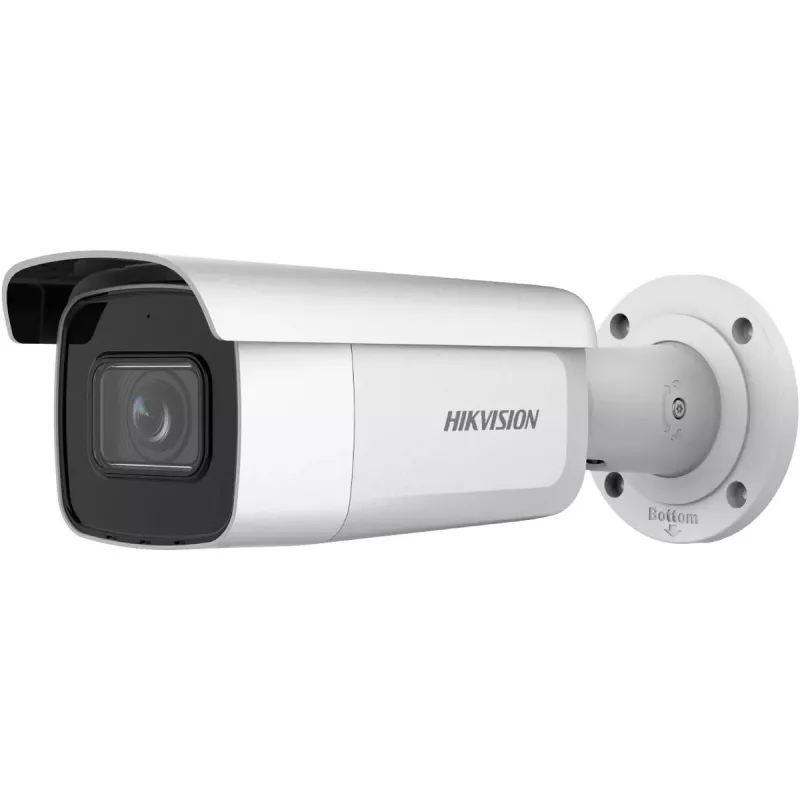

The Hikvision DS-2CD2683G2-IZS is an outdoor IP security camera with 3840 x 2160 resolution in a bullet form factor. It supports ceiling or wall mounting and wired Ethernet connectivity. The camera uses a CMOS sensor with a 2.8–12 mm motorized lens, provides a horizontal viewing angle of 108° and a 355° rotation capability, and delivers long-range detection up to 290 m and observation up to 115 m for comprehensive surveillance coverage.

Advantages

Equipped with Hikvision AcuSense deep-learning algorithms, the camera classifies human and vehicle targets to reduce false alarms and improve alarm relevance. High 4K resolution ensures detailed image capture, while the motorized varifocal lens allows flexible framing and zoom adjustment. Weather-resistant bullet design and white housing suit outdoor installations with ceiling or wall mounting options. Wired Ethernet ensures stable network connection for continuous monitoring.

Suitable for

• Perimeter and site surveillance for industrial or commercial properties
• Parking lots and access roads where vehicle and pedestrian detection is required
• Public spaces and building façades requiring high-resolution monitoring

Key specifications

• Model: DS-2CD2683G2-IZS (2.8–12 mm)
• Resolution: 3840 x 2160 (4K)
• Frame rate: up to 30 fps
• Sensor: CMOS
• Lens: motorized varifocal 2.8–12 mm
• Horizontal viewing angle: 108°; rotation: 355°
• Detection distance: up to 290 m; observation distance: up to 115 m
• Connectivity: wired Ethernet (no Wi‑Fi)
• Placement: outdoor; mounting: ceiling or wall
• Product colour: white; weight: 1.385 kg
• Features: video motion detection, AcuSense human/vehicle classification

How to use

Mount the camera on a suitable ceiling or wall surface using appropriate anchors and ensure the housing faces the target area. Connect to a PoE-capable Ethernet switch or injector for power and network. Configure resolution, frame rate and lens position via the Hikvision web interface or client software; use the motorized 2.8–12 mm lens to set desired field of view. Enable AcuSense human and vehicle classification in the device settings to filter alarms and adjust motion detection sensitivity to site conditions.

Recommendations

For reliable long-range performance, install the camera at an elevated position with a clear line of sight to the monitored area, protect network connections from weather exposure, and periodically check lens cleanliness and firmware updates to maintain detection accuracy.
