Câmara de vigilância IP Reolink RP-PCT16MD Turret 7680×2160, objetiva 2,8 mm, 180° horizontal, com fios, montagem em parede, branco

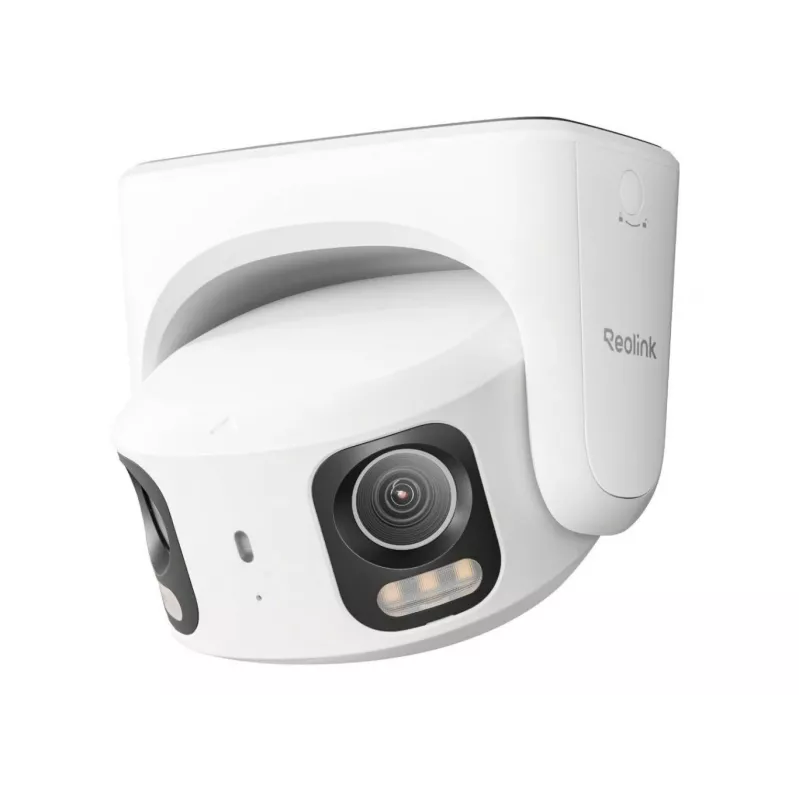

Reolink RP-PCT16MD is a wired IP turret security camera designed for indoor and outdoor perimeter monitoring. It captures up to 7680×2160 resolution using a 1/2.8" CMOS sensor with a fixed 2.8 mm lens and records at 25 fps. The camera provides a 180° horizontal panoramic view and 53.8° vertical angle from a wall-mounted turret housing in white. Weather-resistant construction and wired Ethernet connectivity make it suitable for continuous surveillance of entrances, courtyards, shops, garages and large interior spaces that require wide coverage.

Advantages

The RP-PCT16MD combines a 16MP ultra-high-definition sensor and a dual-lens 180° panorama to deliver a continuous wide field of view without seams. Wired Ethernet ensures stable network performance and power delivery in installations that require reliable, always-on recording. Integrated AI capabilities such as perimeter protection (line crossing, zone intrusion, zone lingering), motion track and AI video search reduce false alarms and speed up event retrieval from local recordings. Night vision with both color and IR modes extends useful monitoring to low-light and no-light conditions.

Suitable for

• Perimeter and entrance surveillance of residential and commercial properties
• Wide-area indoor monitoring for retail shops, warehouses and lobbies
• Garage, courtyard and driveway monitoring with weather-resistant outdoor placement
• Continuous wired CCTV networks requiring stable Ethernet connection and central storage

Key specifications

• Image sensor: 1/2.8" CMOS
• Maximum resolution: 7680 × 2160 pixels (16MP)
• Fixed lens focal length: 2.8 mm
• Horizontal field of view: 180°
• Vertical field of view: 53.8°
• Frame rate: up to 25 fps
• Connectivity: wired Ethernet LAN
• Placement: indoor and outdoor (wall mount)
• Night vision: IR and color night modes
• Ingress protection: weather-resistant housing (IP67 rated)
• Body colour: white
• Weight: 0.775 kg

How to use

Mount the turret camera on a stable wall surface using appropriate anchors and screws for the installation environment, orienting the 180° view to cover the target area. Connect the camera to the local network via Ethernet for power and data transmission. Configure recording settings, motion detection zones and perimeter protection features through the Reolink software or compatible NVR. For local storage insert a microSD card or connect to an NVR/FTP backup. Verify night vision operation and adjust tilt or angle as needed to minimize glare and maximize coverage.

Recommendations

Position the camera to maximize horizontal coverage while avoiding direct exposure to strong light sources such as facing the rising or setting sun. Use wired Ethernet for installations that need continuous, high-bandwidth recording and connect to a secure NVR or encrypted FTP storage for reliable long-term retention. Regularly check and update firmware and AI detection configurations to keep event detection accurate and reduce false alarms.
