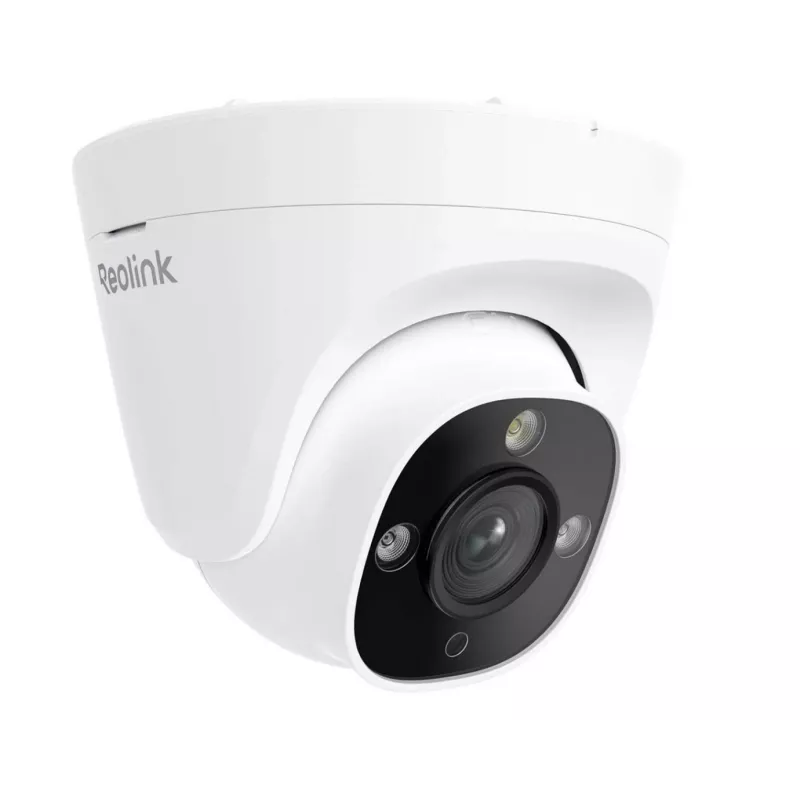

Câmara de vigilância IP Reolink RP-PCT8M Turret 4K 3840×2160, 2,8 mm, 105° horizontal, com fios, montagem em parede, interior e exterior

Reolink RP-PCT8M Turret is a wired IP security camera that delivers 4K UHD (3840×2160) resolution at 25 fps for reliable indoor and outdoor monitoring. The camera uses a fixed 2.8 mm lens with a 105° horizontal field of view (56° vertical, 125° diagonal) and a 1/7" CMOS sensor to capture detailed images. Designed for wall-mount installation, the white turret housing provides durable all-weather performance suitable for perimeter, room and entrance surveillance.

Advantages

The RP-PCT8M provides ultra-high-definition video for clearer identification and evidence capture, combined with a large F1.6 aperture that improves low-light color performance. Wired Ethernet connectivity ensures stable network transmission and continuous power if PoE is available. Built-in spotlight and AI-driven event detection modes — including line crossing, zone intrusion and zone lingering alerts — support targeted perimeter protection and timely notifications. Multiple storage options are supported, such as microSD, NVR and encrypted FTP backups.

Suitable for

• Residential entrance and perimeter monitoring
• Small business storefronts and office corridors
• Shared indoor spaces such as lobbies and stairwells
• Outdoor areas requiring weatherproof fixed surveillance

Key specifications

• Resolution: 4K UHD (3840 × 2160) at up to 25 fps
• Image sensor: 1/7" CMOS, 8 MP
• Lens: fixed 2.8 mm, F1.6
• Field of view: 105° horizontal, 56° vertical, 125° diagonal
• Connectivity: wired Ethernet LAN
• Mounting: wall mount, turret form factor
• Placement: indoor and outdoor use
• Housing: weatherproof design suitable for outdoor installation
• Colour: white
• Frame rate: 25 fps
• Weight: approx. 0.526 kg

How to use

Mount the camera on a suitably rated wall bracket at the desired height and angle to cover the target area. Connect the camera to your network via wired Ethernet; if using PoE, supply power through the Ethernet cable for simplified installation. Configure the camera using Reolink software or web interface to set resolution, recording schedules and motion detection zones. Select appropriate storage options such as a local microSD card, network video recorder (NVR) or FTP backup, and enable event notifications for line crossing or zone intrusion alerts as needed.

Recommendations

Position the camera to maximize the 105° horizontal field of view while avoiding direct exposure to bright light sources to reduce glare. For outdoor installations, ensure cable entry points are weather-sealed and mount the unit at a height that balances coverage with tamper resistance. Regularly verify recording settings and storage availability, and adjust AI detection zones to minimize false alerts caused by trees, pets or passing vehicles.
