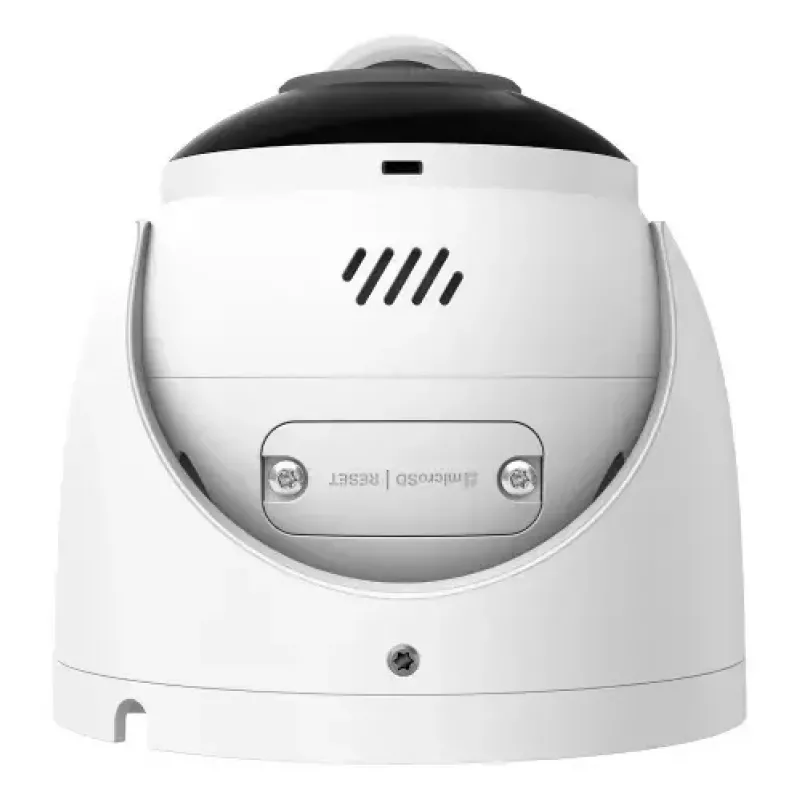

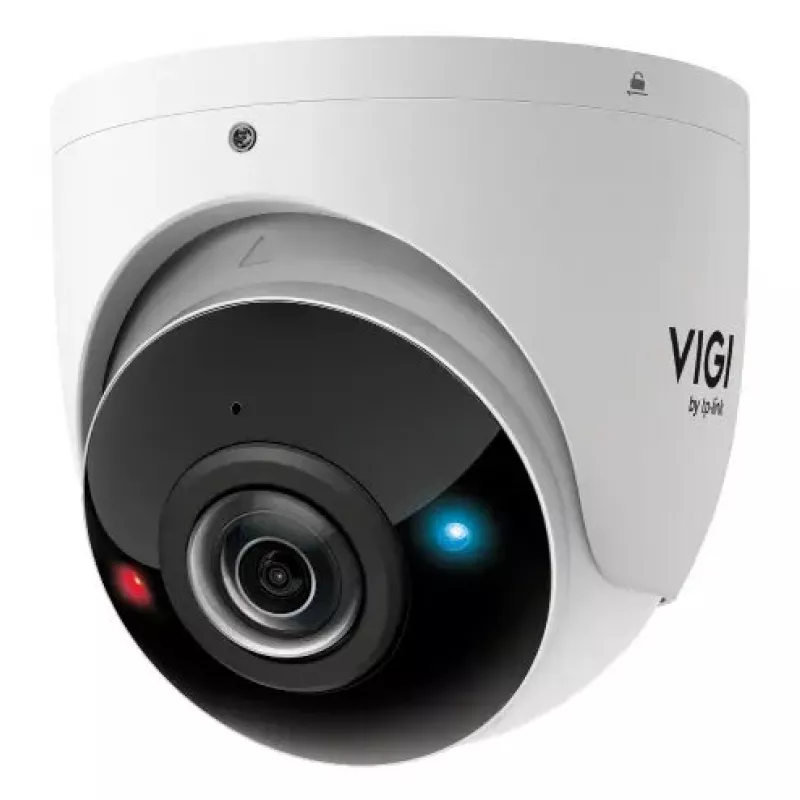

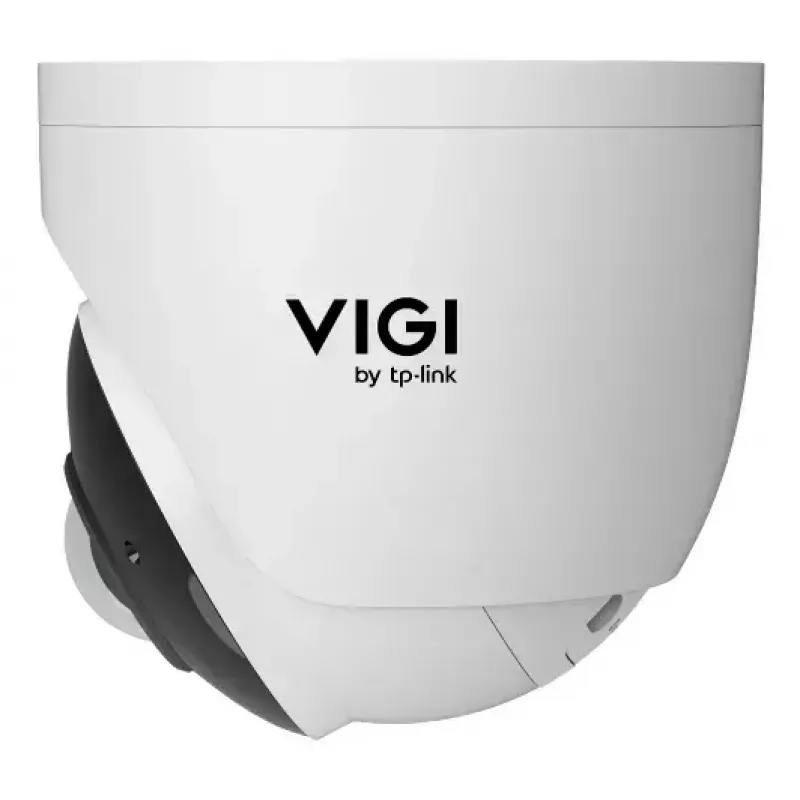

Câmara de vigilância IP TP-Link InSight S485PI Exterior com fios Turret 4K 3840×2160, objetiva horizontal 180°, montagem na parede, branco

One Shot, Huge Vision — 8MP IR Panoramic Turret Network Camera provides a single 180° panoramic view in 4K (8MP) resolution, reducing the need for multiple cameras in large spaces such as hotel lobbies, playgrounds, intersections and warehouses. The camera integrates infrared and white-light illumination, red-blue warning lights, and an Audio/Alarm interface for flexible external device integration. Built for outdoor use, it offers IP67 weatherproofing and IK10 vandal resistance while using H.265+ compression to minimize bandwidth and storage demands.

Advantages

This panoramic turret camera lowers installation and maintenance costs by covering wide areas with one unit while delivering clear 4K detail and up to 20 m (65.62 ft) IR range. Active Defense combines deep-learning detection with flashing red-blue lights and loud audio deterrents, including support for custom voice messages. Smart video enhancement features (True WDR, Smart IR, 3D DNR, and White Balance) improve image quality in challenging light and reduce false alarms through human and vehicle classification and VIGI AI analytics. H.265+ compression further reduces storage and bandwidth needs compared with H.264 and H.265.

Key specifications

• Panorama view: 180°
• Resolution: 4K (8MP), 3840 × 2160
• Image sensor: CMOS 1/2.7" (25.4 / 2.7 mm)
• IR/white light night vision: up to 20 m (65.62 ft)
• Active Defense: red-blue warning lights and audio alarm (supports custom voice)
• Analytics: People & Vehicle Analytics; Human & Vehicle Classification
• Video enhancement: True WDR, Smart IR, 3D DNR, White Balance
• Compression: H.265+
• Interfaces: Audio In/Out, Alarm In/Out, Wired Ethernet LAN
• Protection: IP67 weatherproof, IK10 vandal proof
• Mount type: Turret wall mount, waterproof
• Color: White
• Weight: 760 g

How to use

Mount the turret camera on a suitable outdoor wall or ceiling using the provided fixtures, ensuring the 180° field of view covers the target area. Connect to power and wired Ethernet LAN for network access. Configure the camera through its management software or app: set resolution to 4K if required, enable Active Defense and red-blue light behavior, configure audio or custom voice messages, and integrate external alarm or access-control devices via the Audio/Alarm ports. Use VIGI AI detection settings to tune people and vehicle analytics and adjust sensitivity to reduce false alarms. Verify night-vision settings and Smart IR performance for desired distance coverage.

Recommendations

For optimal performance, install the camera at a height and angle that maximizes the 180° coverage and minimizes obstructions. Use H.265+ recording profiles to save storage and enable regular firmware updates and periodic cleaning to maintain clear imaging and reliable Active Defense operation.
