Câmara de vigilância IP turret Dahua Technology WizSense HDW3649H-AS-PV-PRO interior e exterior 3200 x 1800 píxeis teto/parede

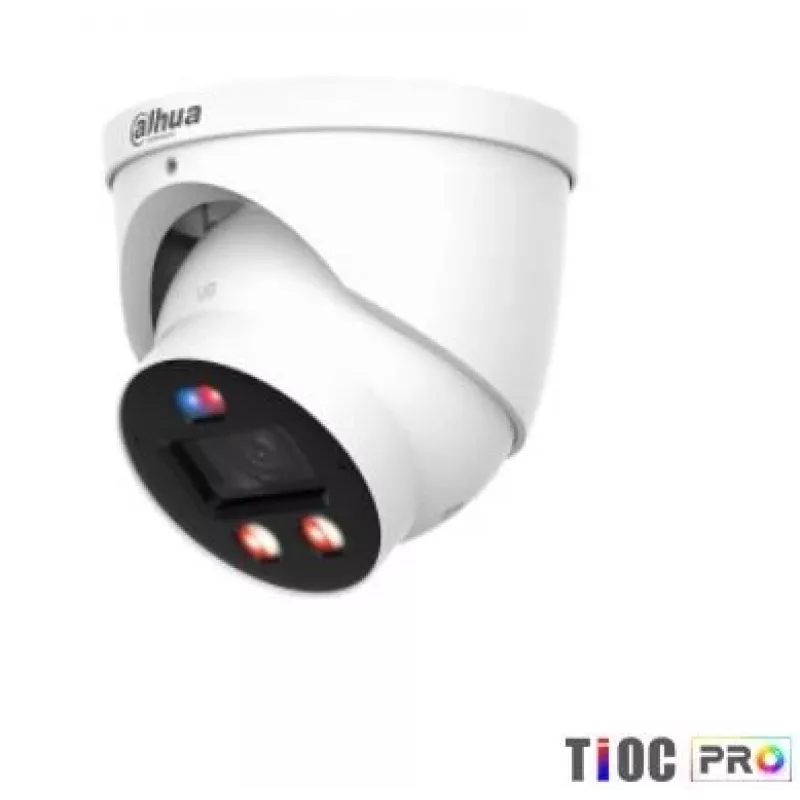

The DAHUA HDW3649H-ASPV0280B-PRO is a 6MP IR Eyeball surveillance camera offering high-resolution imaging and infrared illumination for reliable monitoring day and night. Built for outdoor use, it supports PoE and 12 VDC power, on-board storage up to 512 GB, and a range of I/O ports including audio in/out, RJ45, and alarm inputs/outputs. The compact dome form factor and M16 lens mount simplify installation in varied environments.

Advantages

This 6 Mega Pixel camera provides 3288 × 1850 effective pixels and a 1/1.8" sensor for detailed image quality. Infrared illumination and a minimum illumination of 0.0004 Lux ensure visibility in very low light. Wide electronic shutter range (1/3 s–1/100,000 s) and support for PoE or 12 VDC power increase installation flexibility. The camera is rated for outdoor operation from −40 °C to +60 °C and accepts microSD cards up to 512 GB.

Suitable for

• Perimeter and outdoor surveillance
• Parking lots and building entrances
• Retail and commercial property monitoring
• Low-light or night-time observation

Key specifications

• Type: HDTV/Megapixel/Outdoor
• Resolution: 6 Mega Pixel (3288 × 1850 effective pixels)
• Image sensor: 1/1.8"
• Minimum illumination: 0.0004 Lux
• IR illumination: yes (night vision)
• Electronic shutter: Auto/Manual 1/3 s–1/100,000 s
• Lens mount: M16
• Audio: 1× Audio-In, 1× Audio-Out (built-in microphone)
• Network/IO: 1× RJ45, 1× Alarm In, 1× Alarm Out
• Storage: microSD support up to 512 GB
• Power: PoE or 12 VDC
• Operating temperature: −40 °C to +60 °C
• Dimensions: Φ122.0 mm × 116.1 mm

How to use

Mount the eyeball camera on a stable surface using the appropriate bracket or mount. Connect network and power via PoE or a 12 VDC supply and attach the RJ45 cable to your network. Configure video settings and recording options through the DAHUA-compatible NVR or client software, and insert a microSD card for local storage if required. Use the built-in microphone and audio ports for two-way audio setups and wire alarm inputs/outputs to external sensors as needed.

Recommendations

For best image quality, position the camera to avoid direct bright light sources aimed at the lens and ensure the IR LEDs have a clear line of sight for optimal night performance. Use PoE where possible to simplify cabling and ensure a stable power supply; verify environmental sealing and mounting hardware for exposed outdoor installations.
