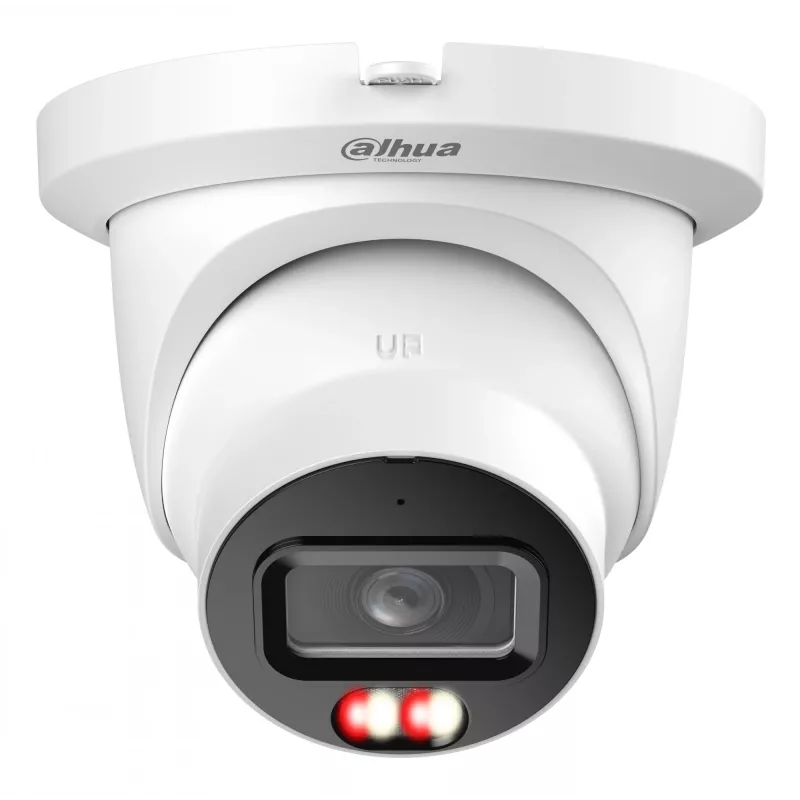

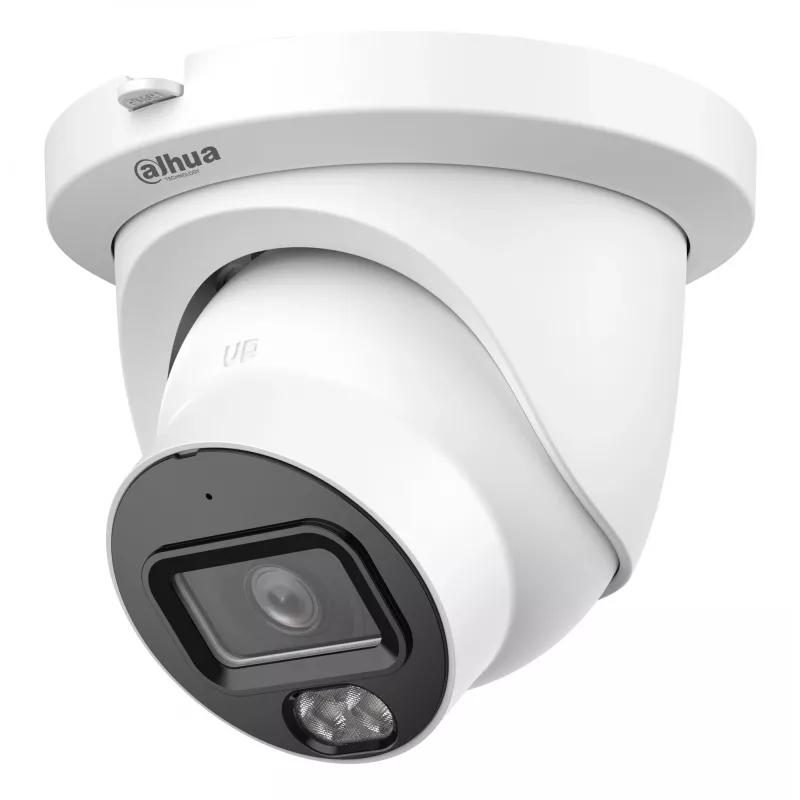

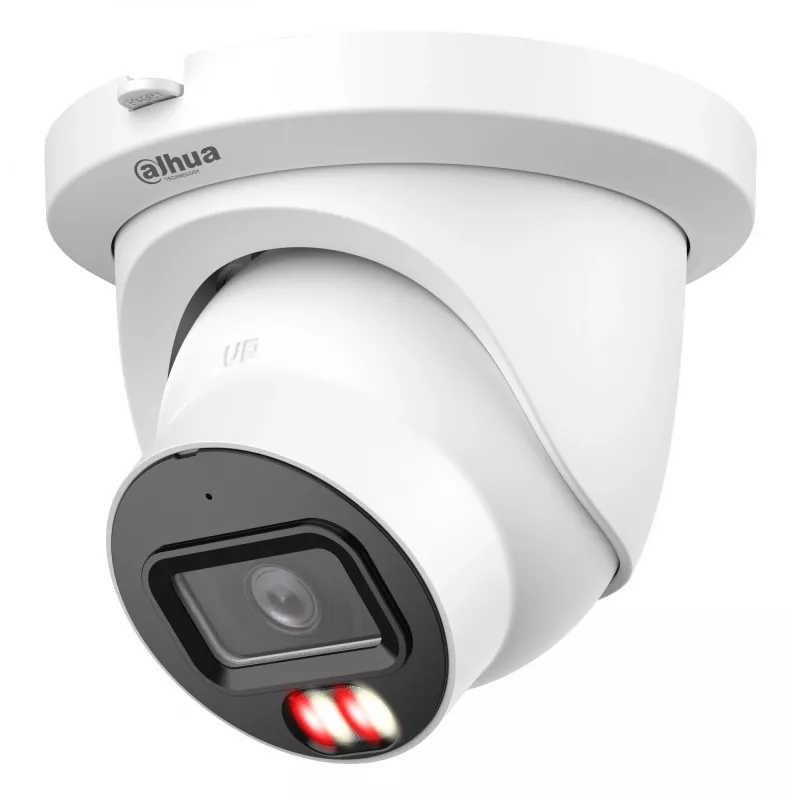

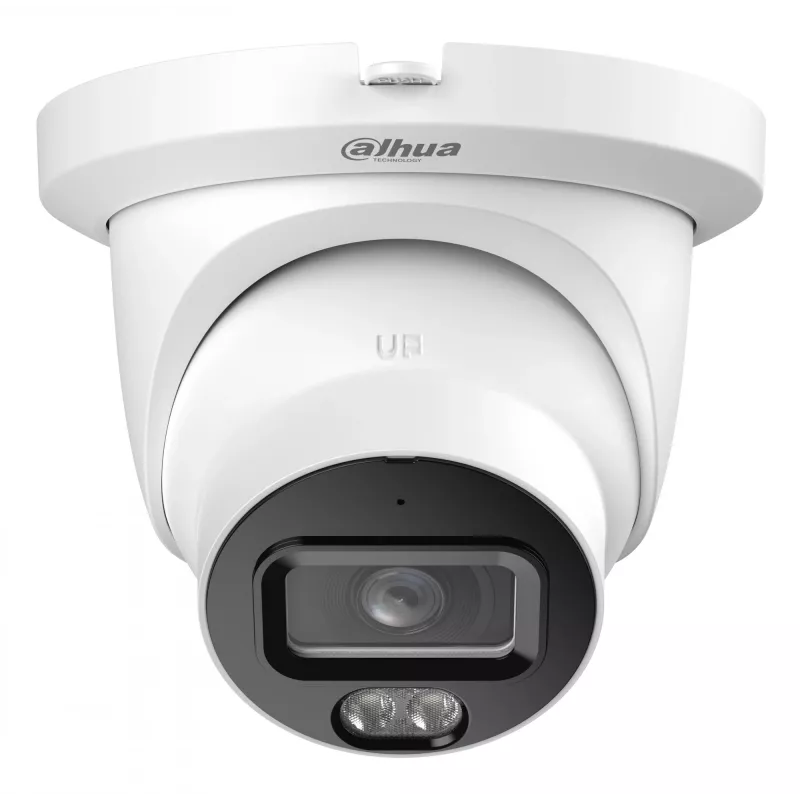

Câmara de vigilância Turret IP Dahua Technology WizMind IPC-HDW5559TM-ASE-IL-0280B para exterior 2960 x 1668 píxeis teto/parede/poste

Dahua IPC-HDW5559TM-ASE-IL-0280B is a wired turret IP security camera designed for outdoor surveillance. It captures up to 2960 × 1668 (approx. 5 MP) resolution at 30 fps using a 1/2.7" CMOS sensor and provides a 108.4° horizontal field of view. The turret housing supports full 360° rotation and can be mounted on a ceiling, wall or pole. Low-light sensitivity down to 0.0005 lx together with built-in multi-core lighting and IR/warm light illumination extend monitoring capability in dark conditions. The model is IP67 rated for dust and water resistance and is available in white.

Advantages

This Dahua WizMind camera offers high-resolution imaging with efficient video encoding options (SMART H.264+/H.265+ and AI H.264/H.265) to balance image quality, bandwidth and storage. Integrated deep-learning functions improve object detection, face detection and people counting, while features such as WDR, 3D NR, HLC and BLC adapt to challenging lighting and scene conditions. The unit supports PoE and 12 VDC power, ePoE for extended cabling, onboard microSD storage up to 1 TB and I/O for alarm and audio connectivity, providing flexible deployment and integration possibilities.

Suitable for

• Perimeter and outdoor area monitoring
• Parking lots and entrance control
• Retail exteriors and storefront surveillance
• Public spaces and building façades

Key specifications

• Image sensor: 1/2.7" CMOS, 5 MP (2960 × 1668)
• Frame rate: up to 30 fps at 2960 × 1668
• Horizontal field of view: 108.4°
• Low-light sensitivity: down to 0.0005 lx
• Night vision: IR and warm light illumination up to 50 m
• Rotation: full 360° rotation capability
• Video encoding: SMART H.264+/H.265+, AI H.264/H.265, ROI, SVC
• Intelligent features: object detection, face detection, people counting, IVS, video metadata
• Storage: microSD card support up to 1 TB; edge storage
• Power: 12 VDC and PoE (ePoE supported)
• Connectivity: wired Ethernet LAN
• Ingress protection: IP67 (dustproof and waterproof)
• Mounting: ceiling, wall or pole mountable
• Color: white
• Weight: approx. 0.53 kg

How to use

Install the camera on a suitable surface (ceiling, wall or pole) using appropriate fixings and cable routing for power and network. Connect to your network via Ethernet and configure IP and encoding settings through the Dahua-compatible management software or web interface. Adjust camera orientation and rotation to cover the required field of view and enable illumination modes and intelligent detection features as needed. Insert an optional microSD card for local recording and configure alarm and audio I/O if external sensors or speakers are to be used.

Recommendations

For reliable outdoor performance, mount the camera under a protective overhang where possible, ensure PoE or 12 VDC supply is protected against surges, and set appropriate exposure, WDR and IR/warm light parameters for the specific scene. Regularly verify firmware updates and calibrate detection zones to reduce false alarms while maintaining accurate object and face detection.
