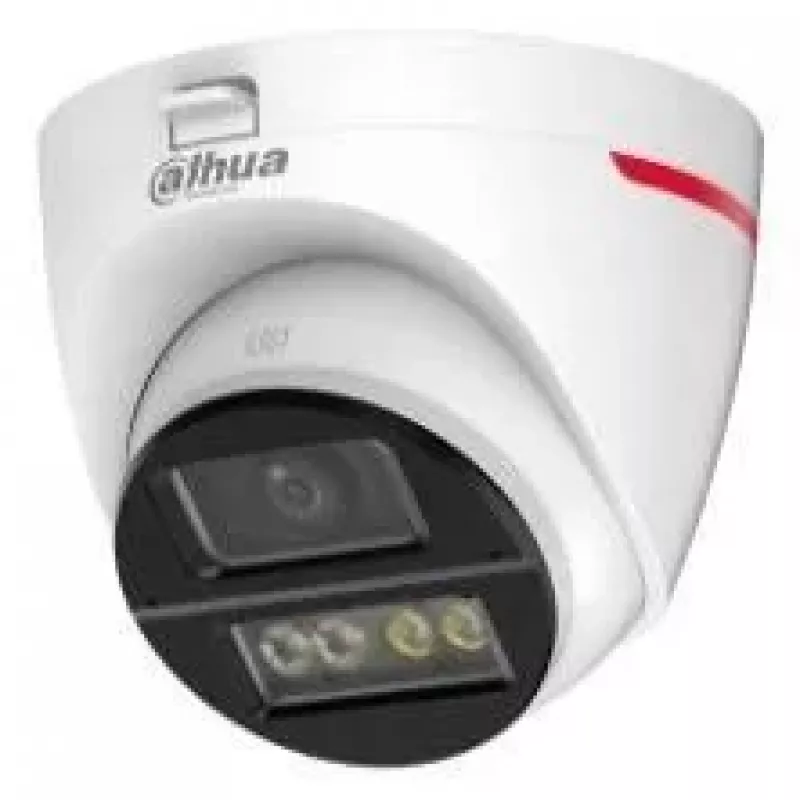

Câmara eyeball DAHUA HAC-HDW1549X-IL-A-PRO-0280B-DIP 5MP WizColor, 2,8 mm, CVI/TVI/AHD/CVBS, IP67

The DAHUA HAC-HDW1549X-IL-A-PRO-0280B-DIP is a high-performance 5MP WizColor eyeball camera designed for professional surveillance. Featuring a 1/2.7" CMOS sensor and 2.8mm fixed lens, it delivers crisp 2592x1944 resolution at 20fps. With switchable video output (CVI/TVI/AHD/CVBS) and dual illumination (warm light and smart IR up to 20m), this camera ensures clear imaging day and night. Its IP67 rating and wide operating temperature range (-40°C to +60°C) make it suitable for outdoor use. The built-in microphone supports audio over coax, and 120dB True WDR enhances performance in challenging lighting.

Advantages

WizColor technology provides full-color images in low light without sacrificing detail. The dual illumination system offers both warm light and IR for flexible night vision. With IP67 protection, it withstands harsh weather conditions. Easy installation with 12V DC power and coaxial cable connectivity.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Parking lots and building entrances
• Residential and commercial properties

Key specifications

• Image Sensor: 1/2.7" CMOS
• Max Resolution: 5MP (2592x1944)
• Lens: 2.8mm fixed, 111° horizontal FOV
• Video Output: CVI/TVI/AHD/CVBS switchable
• Illumination: Dual (warm LED & smart IR), up to 20m
• Low Light: Full-color Starlight, 0.001 Lux@F1.6
• WDR: 120dB True WDR
• Audio: Built-in microphone (audio over coax)
• Protection: IP67
• Power: 12V DC, max 4.9W
• Operating Temp: -40°C to +60°C
• Material: Metal front cover, plastic body
• Series: WizSense

Recommendations

For optimal performance, use with a compatible DVR supporting CVI/TVI/AHD. Ensure proper weatherproofing for outdoor installations. Pair with a 12V DC power supply (not included).
