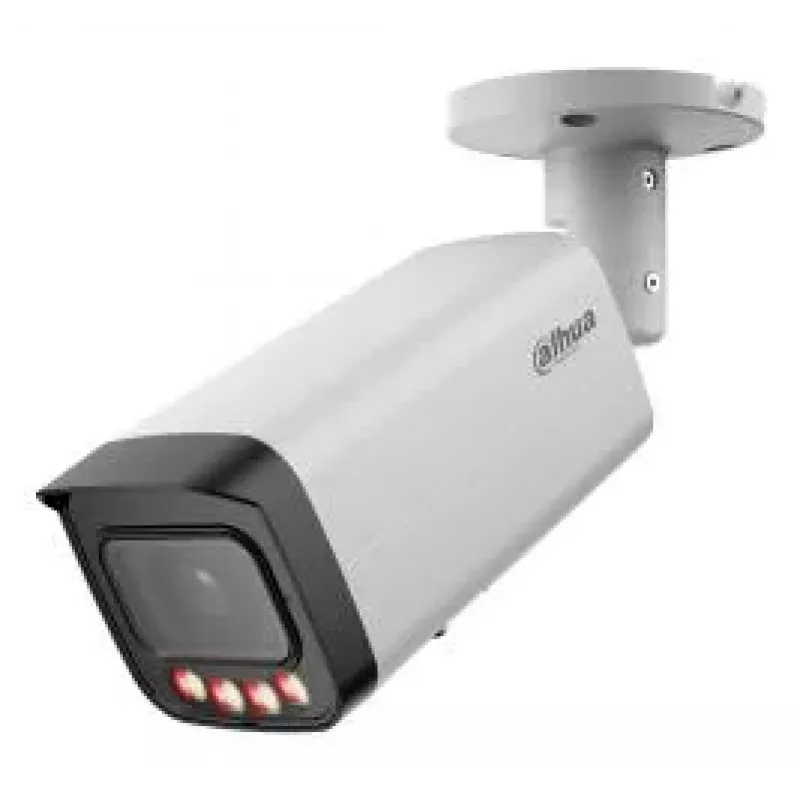

Câmara IP bullet DAHUA 5MP IPC-HFW5559T-ASE-IL-0280B

The DAHUA IPC-HFW5559T-ASE-IL-0280B is a high-performance 5MP bullet IP camera designed for professional surveillance. Featuring a motorized vari-focal lens, advanced AI analytics, and robust construction, it delivers exceptional image quality and intelligent monitoring capabilities for demanding indoor and outdoor applications.

Advantages

With 5MP resolution at 25/30 fps, 120 dB True WDR, and up to 60m IR distance, this camera ensures clear imaging in challenging lighting conditions. AI features include perimeter protection, SMD Plus, face detection, people counting, and heat map, reducing false alarms and enhancing security efficiency. The IP67 rating and wide operating temperature range (-30°C to +60°C) guarantee reliable performance in harsh environments.

Suitable for

• Perimeter security for commercial and industrial sites
• Retail stores for people counting and heat mapping
• Critical infrastructure requiring face detection and intrusion prevention
• Outdoor surveillance in extreme weather conditions

Key specifications

• Sensor: 1/2.7" 5MP progressive CMOS
• Max Resolution: 2592 (H) × 1944 (V)
• Lens: Motorized vari-focal 2.8 mm–8 mm
• IR Distance: Up to 60 m (196.85 ft)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream)
• AI Features: Perimeter Protection, SMD Plus, Face Detection, People Counting, Heat Map
• WDR: 120 dB True WDR
• Storage: Micro SD card up to 256 GB
• Audio: Built-in Mic, 1/1 Audio In/Out
• Alarm: 1/1 Alarm In/Out
• Power Supply: 12V DC / PoE (802.3af)
• Power Consumption: Basic 3.5W (12V DC), Max 8.5W (PoE)
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Network Interface: RJ-45 (10/100 Base-T)
• Day/Night: Auto(ICR)/Color/B/W
• Bit Rate Control: CBR/VBR

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. The camera is compatible with DAHUA NVRs and third-party ONVIF systems.
