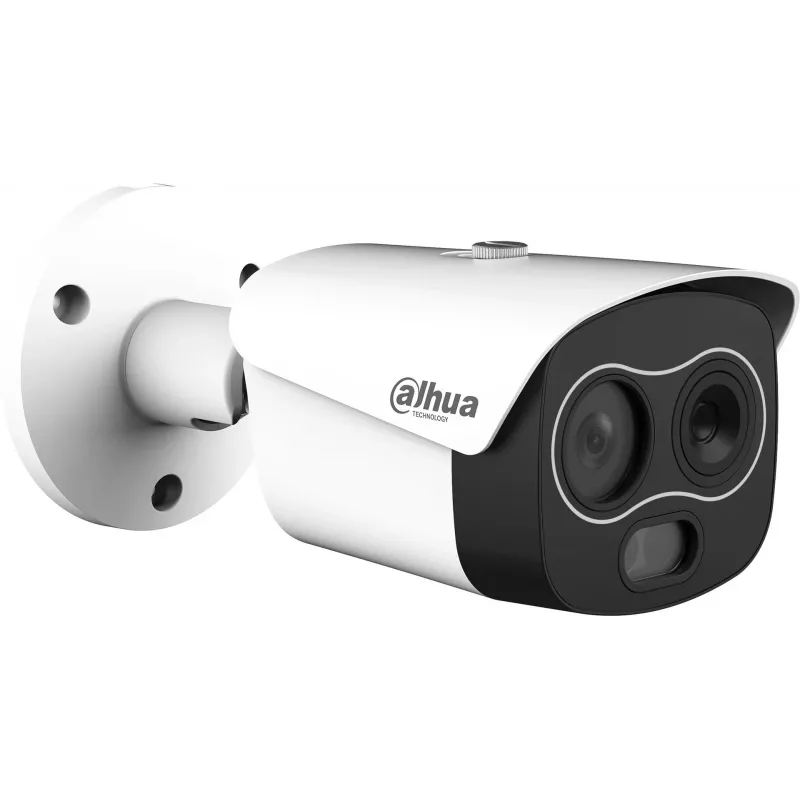

Câmara IP Dahua TPC-BF1241-TB3F4-DW-S8 com Sensor Térmico e Ótico, 4MP, Resolução Térmica 256x192, Lente Térmica 3,5mm, Lente Ótica 4mm, IP67, PoE

The Dahua TPC-BF1241-TB3F4-DW-S8 is a dual-sensor IP camera combining thermal and optical imaging for advanced surveillance and temperature measurement. Designed for critical infrastructure, perimeter protection, and industrial monitoring, it delivers reliable performance in harsh environments.

Advantages

Integrated thermal and optical sensors provide comprehensive monitoring day and night. The thermal sensor detects heat signatures for early fire detection and intrusion alerts, while the 4MP optical sensor delivers high-resolution visual details. With IP67 rating and wide operating temperature range, it withstands extreme conditions.

Suitable for

• Perimeter security for airports, power plants, and data centers
• Industrial temperature monitoring and fire prevention
• Critical infrastructure protection
• Outdoor surveillance in harsh climates

Key specifications

• Thermal Sensor: 256x192 resolution, 3.5mm lens, NETD <50mK
• Optical Sensor: 4MP (2688x1520), 1/2.7" CMOS, 4mm lens
• IR Distance: Up to 30m
• Video Compression: H.265/H.264/MJPEG
• Smart Features: Tripwire, intrusion, fire detection, temperature measurement (-20°C to +150°C)
• Storage: Micro SD up to 256GB
• Network: RJ-45 10/100Base-T, PoE (802.3af)
• Power: 12V DC or PoE
• Protection: IP67, operating temp -30°C to +60°C
• Audio: Built-in mic, 1 input, 1 output

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure proper mounting to avoid obstructions. For temperature measurement applications, calibrate according to installation guidelines.
