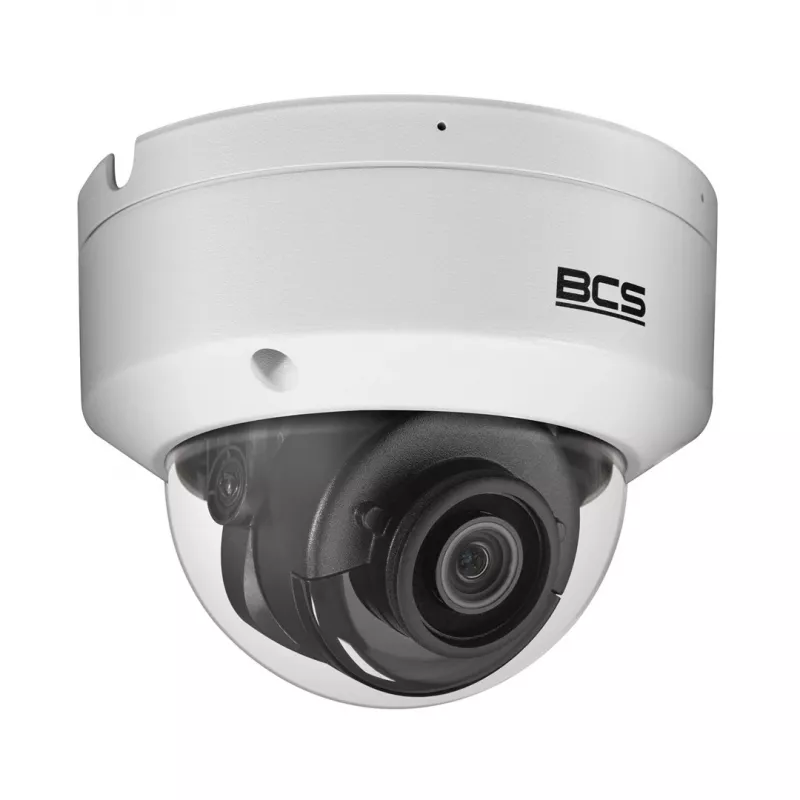

Câmara IP dome 8MP BCS BCS-V-DIP28FSR3-Ai2(2)

The BCS-V-DIP28FSR3-Ai2(2) is a high-performance 8-megapixel IP dome camera designed for professional surveillance. Featuring a 2.8mm fixed lens with a 107° horizontal field of view, this camera delivers crisp 4K resolution at 3840x2160. Equipped with Smart IR for night vision up to 30 meters and 120dB True WDR, it ensures clear imaging in challenging lighting conditions. The camera supports H.265+ compression for efficient bandwidth and storage, and includes AI-powered features such as perimeter protection, face detection, and SMD Plus. With an IP67-rated metal housing and IK10 vandal resistance, it is built for outdoor use in harsh environments.

Advantages

This camera offers exceptional image quality with 8MP resolution and advanced AI analytics, reducing false alarms. The 2.8mm lens provides a wide viewing angle, ideal for monitoring large areas. Smart IR technology ensures clear night vision without overexposure, while 120dB True WDR balances light and dark areas. The robust IP67 and IK10 ratings guarantee durability against weather and vandalism. Power over Ethernet (PoE) simplifies installation with a single cable for data and power.

Suitable for

• Perimeter surveillance for commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Outdoor areas requiring high-resolution monitoring
• Applications needing AI-based intrusion detection and face recognition

Key specifications

• Resolution: 8 MP (3840x2160)
• Sensor: 1/2.8" CMOS
• Lens: 2.8mm fixed, FOV 107°
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• DNR: 3D DNR
• Audio: Built-in mic, 1x audio in, 1x audio out
• Alarm: 1x alarm in, 1x alarm out
• Storage: MicroSD up to 256GB
• Network: 1x RJ45 10/100 Mbps
• AI: Perimeter protection, face detection, SMD Plus
• Power: DC 12V, PoE (802.3af), max 6.5W
• IP Rating: IP67
• IK Rating: IK10
• Housing: Metal
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is rated for continuous recording. The camera is compatible with BCS NVRs and third-party systems supporting ONVIF.
