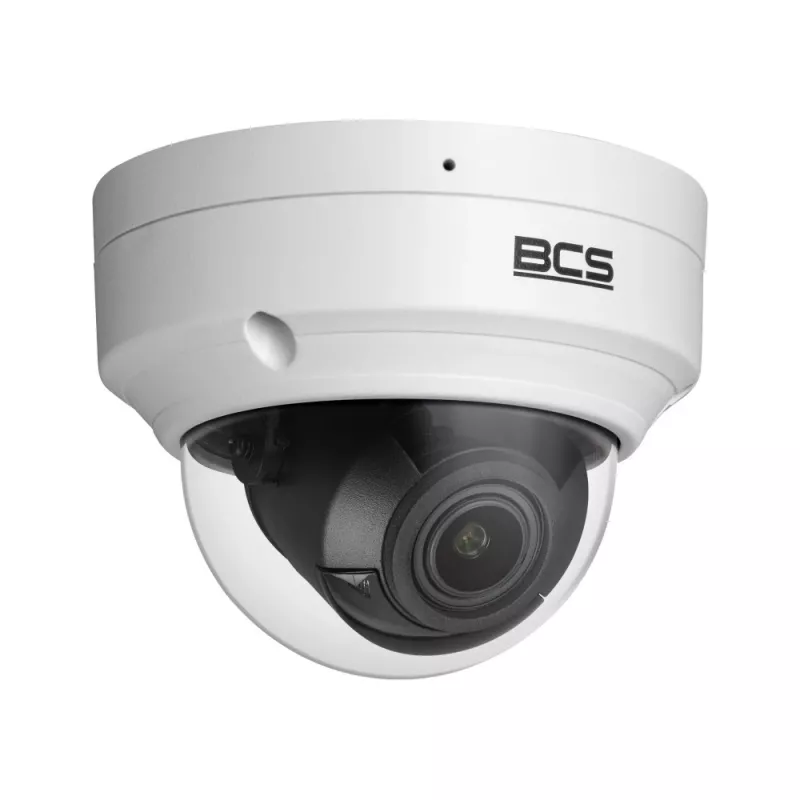

Câmara IP dome BCS 5MP IR BCS-P-DIP45VSR4-Ai

The BCS-P-DIP45VSR4-Ai is a high-performance 5MP IR IP dome camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 5MP resolution (2592x1944) at up to 30 fps. With a motorized varifocal lens (2.7-13.5mm) and 120dB True WDR, it excels in challenging lighting conditions. Built-in AI capabilities include perimeter protection (human/vehicle detection), SMD Plus, and face detection. The camera is IP67-rated for dust and water resistance and IK10-rated for vandal resistance, making it suitable for indoor and outdoor use.

Advantages

True 5MP resolution with H.265+ compression saves bandwidth and storage. Motorized varifocal lens allows remote adjustment of viewing angle. AI analytics reduce false alarms by distinguishing humans and vehicles. Robust IP67/IK10 housing ensures durability in harsh environments. Supports PoE for easy installation.

Suitable for

• Perimeter security for commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Outdoor surveillance requiring weatherproof and vandal-proof design
• AI-based intrusion detection and monitoring

Key specifications

• Resolution: 5 MP (2592x1944)
• Sensor: 1/2.7" Progressive Scan CMOS
• Lens: Motorized varifocal 2.7-13.5mm
• IR Range: Up to 40m
• WDR: 120dB True WDR
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Max Frame Rate: 25/30 fps @ 5MP
• Audio: Built-in mic, 1x audio in, 1x audio out
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V, PoE (802.3af), max 7.5W
• AI Features: Perimeter protection, SMD Plus, face detection
• Protection: IP67, IK10
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector. Ensure the microSD card is high endurance for continuous recording. The camera is compatible with BCS NVRs and third-party VMS supporting ONVIF.
