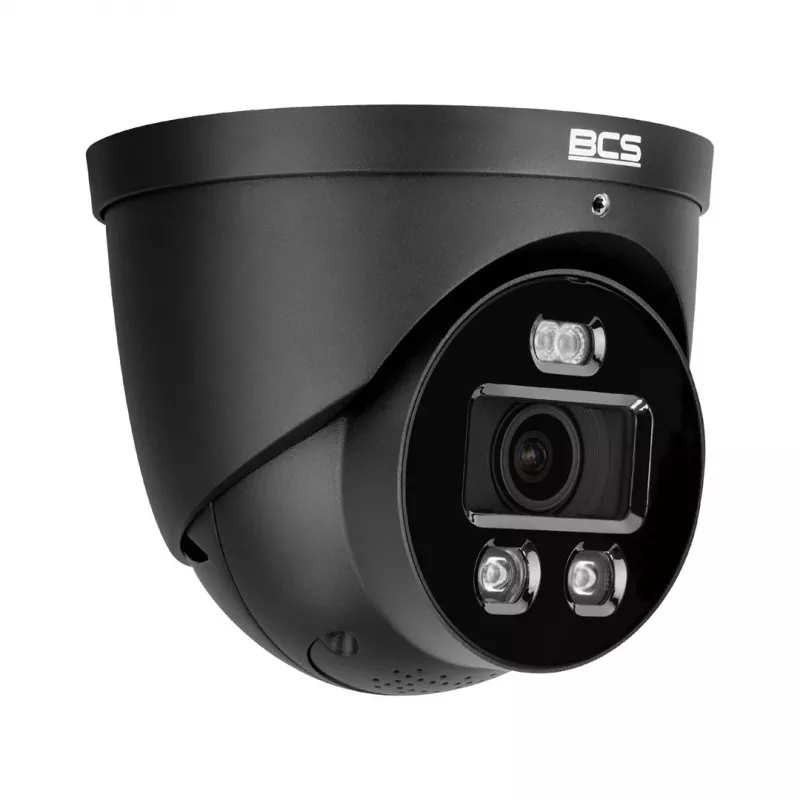

Câmara IP Dome BCS 6MP BCS-L-EIP66FCR3L3-Ai1-G, 2,8mm, IP66, IK10, IA

The BCS-L-EIP66FCR3L3-Ai1-G is a high-performance 6 Megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, this camera delivers crisp 3072x2048 resolution at up to 20fps. With a 2.8mm fixed lens providing a 106° horizontal field of view, it is ideal for monitoring wide areas. The camera supports H.265+ compression for efficient bandwidth and storage, and includes 120dB True WDR for clear imaging in challenging lighting conditions.

Advantages

Equipped with advanced AI features including Perimeter Protection (intrusion and tripwire detection) and SMD Plus, this camera reduces false alarms by distinguishing humans and vehicles. The IP66 and IK10 ratings ensure reliable operation outdoors and resistance to vandalism. Built-in microphone and microSD card slot (up to 256GB) add versatility.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Outdoor monitoring in parking lots, entrances, and warehouses
• Areas requiring high-resolution video with intelligent analytics

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 6MP (3072x2048)
• Lens: 2.8mm fixed, FOV 106° (H)
• IR Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 20fps@6MP, 25/30fps@4MP
• WDR: 120dB True WDR
• AI: Perimeter Protection, SMD Plus
• Power: DC 12V, PoE (802.3af)
• Protection: IP66, IK10
• Storage: microSD up to 256GB
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100Mbps
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is rated for continuous recording. This camera is ideal for integration with BCS NVRs and VMS platforms.
