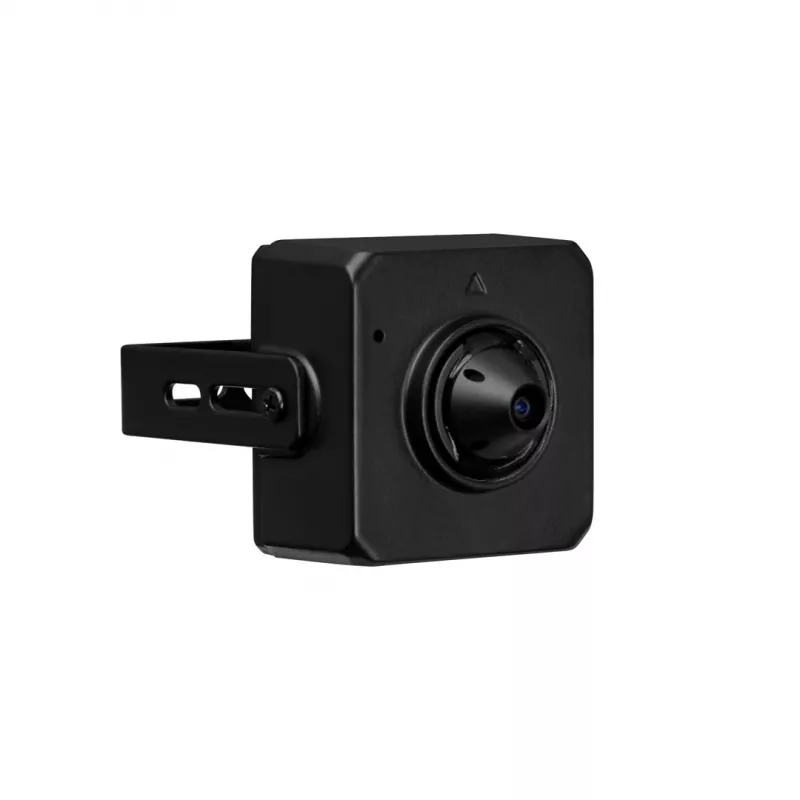

Câmara IP Pinhole BCS-L-PIP14FW

The BCS-L-PIP14FW is a high-quality IP pinhole camera designed for discreet surveillance applications. With its compact pinhole lens, this camera is ideal for covert monitoring in indoor environments, offering reliable video capture without drawing attention. The camera supports Power over Ethernet (PoE) for easy installation and features a 1/2.8" progressive scan CMOS sensor for clear image quality.

Advantages

Discreet pinhole design allows for covert placement in offices, retail spaces, or homes. PoE support simplifies cabling by combining power and data over a single Ethernet cable. The camera delivers crisp video with its high-resolution sensor, ensuring detailed footage for security purposes.

Suitable for

• Covert surveillance in indoor areas
• Retail stores, offices, and warehouses
• Home security monitoring
• Integration with existing IP camera systems

Key specifications

• Brand: BCS
• Model: BCS-L-PIP14FW
• Sensor: 1/2.8" Progressive Scan CMOS
• Minimum Illumination: 0.01 Lux @ F1.2
• Shutter Speed: 1/3 s to 1/100,000 s
• Lens: 2.8 mm pinhole
• Angle of View: 90°
• Video Compression: H.265+/H.265/H.264+/H.264
• Max Resolution: 1920 x 1080
• Frame Rate: 25 fps (1920 x 1080)
• Day/Night: ICR
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: DWDR
• Network Interface: 1 RJ45 10M/100M
• Protocols: TCP/IP, UDP, HTTP, DHCP, DNS, NTP, RTSP, SMTP, FTP
• Power Supply: PoE (802.3af)
• Power Consumption: ≤5W
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C
• Humidity: ≤95% non-condensing
• Dimensions: Ø25 x 30 mm
• Weight: 50 g

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is placed in a location with adequate lighting for best image quality. Regular firmware updates are recommended to maintain security and functionality.
