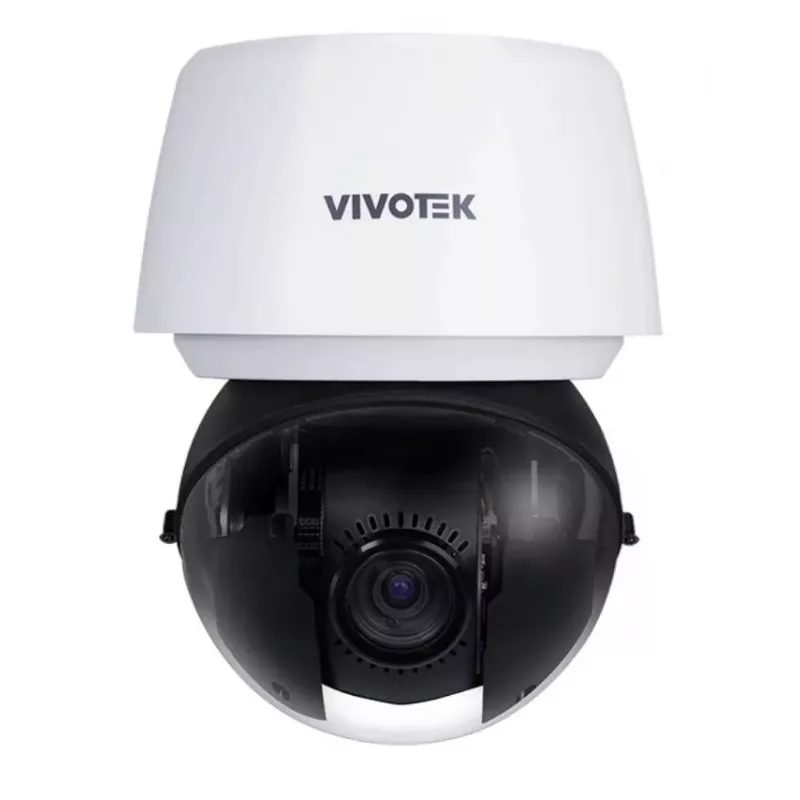

Câmara IP speed dome VIVOTEK SD9387-EHL S-Series 5MP IR

The VIVOTEK SD9387-EHL is a high-performance 5-megapixel speed dome IP camera from the S-Series, designed for demanding outdoor surveillance. Featuring a 1/2.8" progressive CMOS sensor, 30x optical zoom, and built-in IR illuminators effective up to 150 meters, this camera delivers exceptional image quality in any lighting condition. With IP66 and IK10 ratings, it withstands harsh weather and vandalism, making it ideal for perimeter security, city surveillance, and large-area monitoring.

Advantages

Outstanding image clarity with 5MP resolution at 30 fps, combined with WDR Pro technology for balanced exposure in high-contrast scenes. The 30x optical zoom allows detailed identification over long distances, while Smart Stream III optimizes bandwidth without sacrificing quality. Auto tracking and intelligent video analytics reduce false alarms and enhance security response.

Suitable for

• Perimeter and border security
• City and public space surveillance
• Industrial and commercial facilities
• Traffic monitoring and parking lots
• Critical infrastructure protection

Key specifications

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 2560x1920 (5MP)
• Frame Rate: 30 fps @ 2560x1920
• Lens: 30x Optical Zoom, f=4.3~129mm, F1.6~F4.7
• IR Distance: Up to 150m (492ft)
• Pan/Tilt: 360° continuous pan, -20°~90° tilt (auto flip)
• Video Compression: H.265, H.264, MJPEG
• WDR: WDR Pro
• Minimum Illumination: 0.005 Lux (Color), 0.0005 Lux (B/W), 0 Lux (IR on)
• Storage: MicroSD/SDHC/SDXC slot (max. 256GB)
• Network: 10/100 Mbps Ethernet (RJ-45)
• Power: AC 24V, DC 48V, PoE (802.3at)
• Power Consumption: Max. 60W (heater on)
• Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Weatherproof: IP66
• Vandal-proof: IK10
• Smart Features: Smart Stream III, Smart IR, Video Motion Detection, Tamper Detection, Auto Tracking

Recommendations

For optimal performance, use a PoE+ switch or dedicated power supply. Ensure the mounting surface can support the camera's weight and consider using a weatherproof junction box for cable management.
