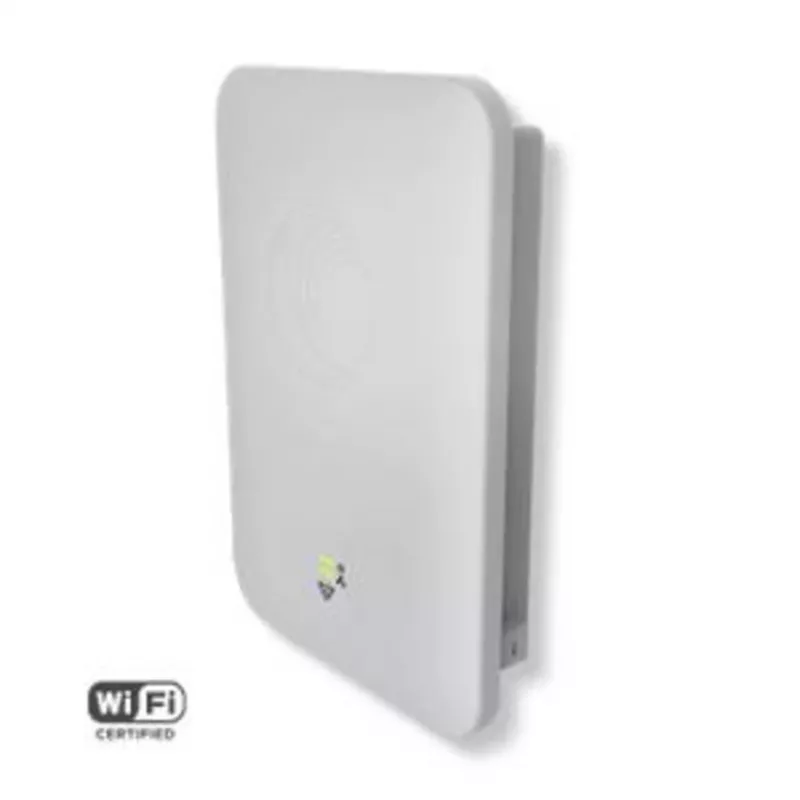

Cambium Networks cnPilot E502S Ponto de Acesso Exterior, AC1200, Dual-Band, 2x2 MIMO, Antena 10/11 dBi, Gigabit PoE+

The Cambium Networks cnPilot E502S is a high-performance outdoor access point designed for reliable wireless connectivity in demanding environments. With dual-band Wi-Fi 5 (802.11ac Wave 2) technology, it delivers combined data rates of up to 1.167 Gbps, making it ideal for public Wi-Fi, hospitality, and enterprise outdoor deployments. The IP67-rated rugged enclosure ensures operation in extreme temperatures and weather conditions.

Advantages

Robust outdoor design with IP67 rating for dust and water resistance. Integrated directional antennas with 10 dBi (2.4 GHz) and 11 dBi (5 GHz) gain provide focused coverage and extended range. Dual Gigabit Ethernet ports with 802.3af/at PoE+ support simplify installation. Managed via cnMaestro cloud or on-premise for centralized control.

Suitable for

• Outdoor Wi-Fi coverage for campuses, parks, and stadiums
• Public hotspots and guest networks
• Enterprise wireless backhaul and point-to-multipoint links
• Industrial and smart city applications

Key specifications

• Wi-Fi Standard: 802.11a/b/g/n/ac Wave 2 (Wi-Fi 5)
• Frequency Bands: Dual-band (2.4 GHz & 5 GHz)
• Max Data Rate: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) = 1.167 Gbps (AC1200)
• MIMO: 2x2 in both bands
• Antenna: Integrated directional, 10 dBi (2.4 GHz), 11 dBi (5 GHz)
• Ethernet Ports: 2 x Gigabit Ethernet (10/100/1000)
• Power: 802.3af/at PoE+
• IP Rating: IP67
• Operating Temperature: -30°C to 65°C
• Concurrent Clients: Up to 256
• Management: cnMaestro, SNMP, Web UI

Recommendations

For optimal performance, pair with a Cambium Networks PoE+ injector or switch. Use cnMaestro for simplified deployment and monitoring. Ensure proper grounding and surge protection for outdoor installations.
