Campo de contagem completo Hager universZ ZK3EL22T 1050mm 2 lugares de contador eHZ 2 campos

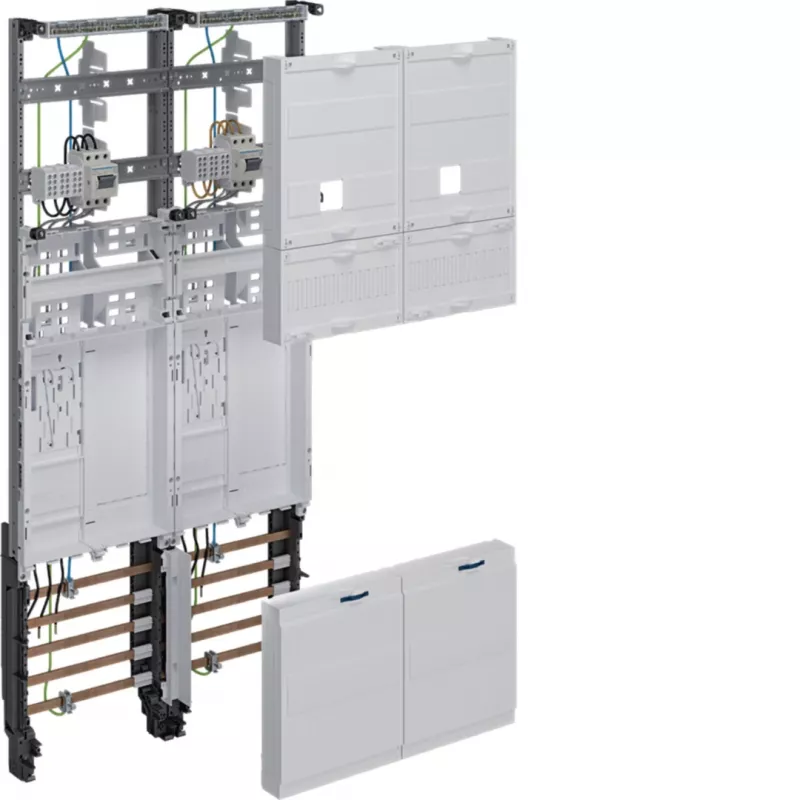

The Hager universZ Complete Metering Field ZK3EL22T is a pre-assembled, ready-to-install solution for residential and commercial metering installations. Designed for two electronic household meters (eHZ), this 2-field unit offers a compact and efficient layout with a height of 1050 mm, width of 500 mm, and depth of 160 mm. It features a 5-pole, 250 A busbar system and includes a main line branch terminal (HLA) for secure connections. The unit provides 36 TE distribution space (3 rows x 12 TE) and a mounting plate for a BKE-I communication module. Constructed from galvanized sheet steel, it ensures durability and protection class IP2XC when installed in a suitable cabinet.

Advantages

Pre-configured and tested for quick installation. Space-saving design with integrated busbar and terminal. Compatible with eHZ meters and communication modules. Robust galvanized steel construction for long-term reliability.

Suitable for

• Residential metering setups
• Commercial metering installations
• eHZ meter integration
• Distribution boards requiring 2 meter places

Key specifications

• Product Type: Complete Metering Field
• System Series: Hager universZ
• Number of Meter Places: 2
• Meter Type Compatibility: eHZ
• Number of Fields: 2
• Overall Height: 1050 mm
• Overall Width: 500 mm
• Overall Depth: 160 mm
• Busbar System: 5-pole, 250 A
• Main Line Branch Terminal (HLA): Included, 5-pole, max. 25 mm²
• Distribution Units (TE): 36 TE (3 rows x 12 TE)
• Connection Space: Top and Bottom
• Mounting Plate: For BKE-I (communication module)
• Protection Class: IP2XC (when installed in suitable cabinet)
• Rated Voltage: 230/400 V AC
• Rated Frequency: 50 Hz
• Material: Sheet steel, galvanized

Recommendations

Ensure the cabinet is suitable for IP2XC protection. For optimal performance, use with Hager universZ compatible components. Professional installation recommended.
