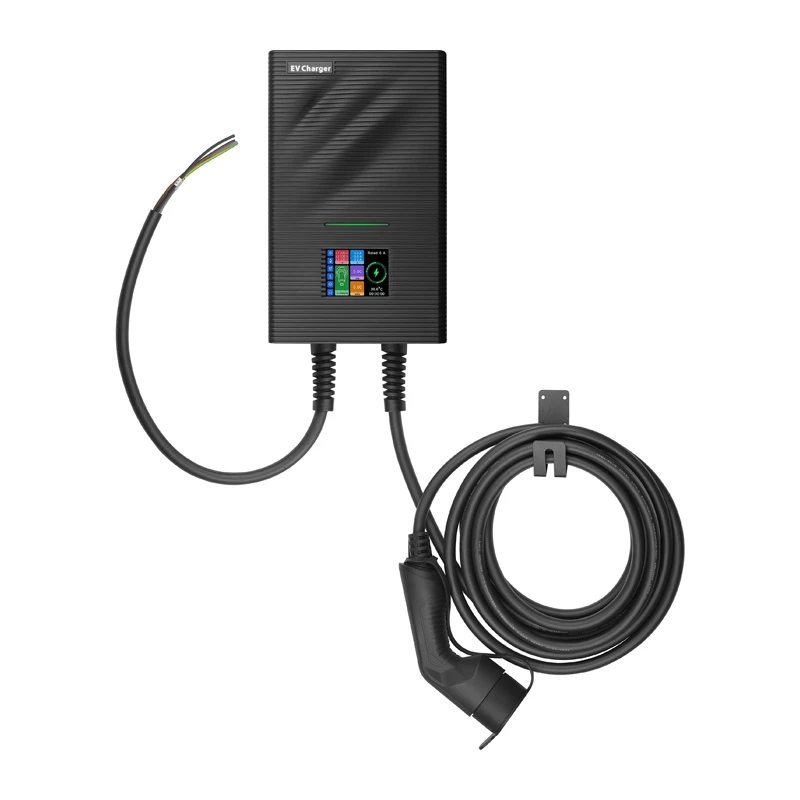

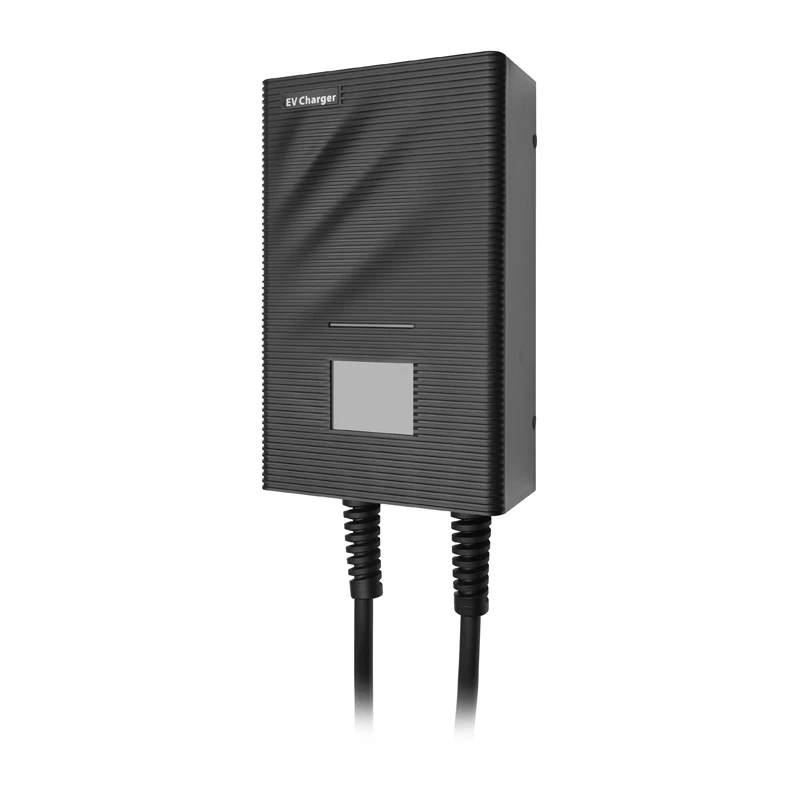

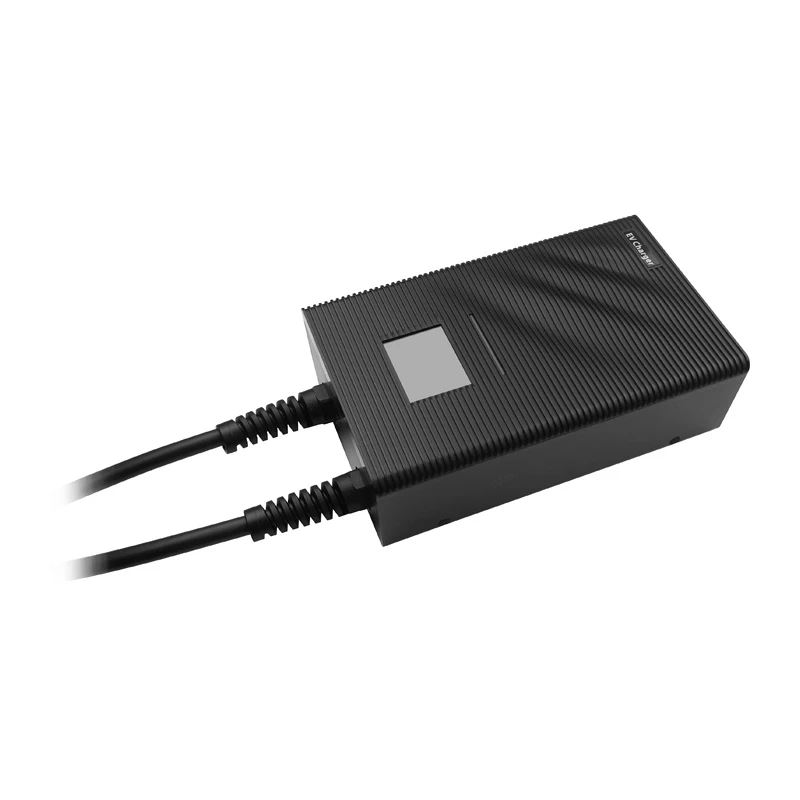

Carregador EV BESEN SQW45-BC-22KW-APP 22kW Type 2 wallbox com controlo por app

The BESEN SQW45-BC-22KW-APP is a high-performance electric vehicle charger designed for residential and commercial use. With 22 kW charging power and Type 2 connector, it offers fast and reliable charging for all electric vehicles. The integrated Wi-Fi and Bluetooth connectivity allows control via the BESEN mobile app, RFID card, or Plug & Charge functionality. Built with a robust IP65-rated enclosure and IK10 impact protection, it is suitable for both indoor and outdoor installations.

Advantages

This EV charger provides a future-proof solution with OCPP 1.6J compliance, enabling integration with various backend systems. The built-in energy metering helps monitor consumption, while comprehensive safety features protect against over-voltage, under-voltage, over-current, short-circuit, ground faults, and over-temperature. The 5-meter integrated cable offers flexibility in installation.

Suitable for

• Home garages and driveways
• Commercial parking lots and workplaces
• Fleet charging stations
• Public charging points

Key specifications

• Charging Power: 22 kW
• Charging Current: 32 A
• Input Voltage: 400V AC (Three-Phase)
• Frequency: 50/60 Hz
• Connector: Type 2 (IEC 62196-2) with 5m cable
• Connectivity: Wi-Fi, Bluetooth
• Control: Mobile App, RFID, Plug & Charge
• Enclosure Rating: IP65
• Impact Protection: IK10
• RCD Protection: Type A + 6mA DC
• Communication Protocol: OCPP 1.6J
• Mounting: Wall-mounted
• Operating Temperature: -30°C to +55°C
• Display: LED Indicators
• Housing Material: PC V0 Flame Retardant
• Energy Metering: Yes
• Safety: Over-voltage, Under-voltage, Over-current, Short-circuit, Ground, Over-temperature

Recommendations

For optimal performance, ensure a three-phase power supply is available. The charger is compatible with all Type 2 equipped electric vehicles. Use the BESEN app for scheduling and monitoring.
