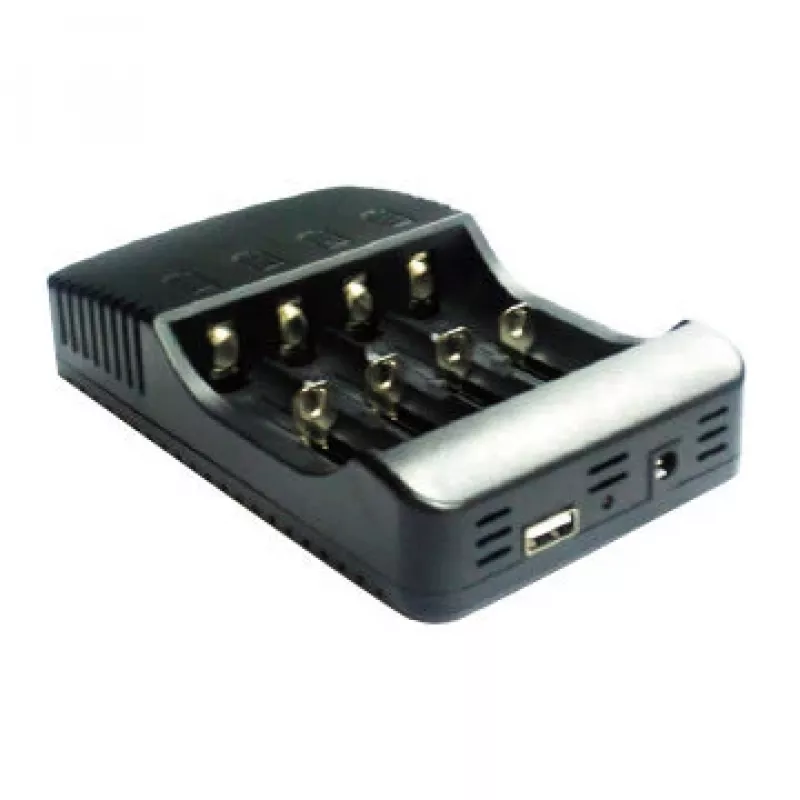

Carregador extra digital DV00DV2817 — carregador multifuncional de 4 canais com visor digital

Multifunctional 4-channel charger extra digital DV00DV2817 is designed to charge and monitor multiple rechargeable batteries simultaneously. The charger supports Ni‑MH, Ni‑Cd and Li‑Ion battery types and can charge cells of different chemistries and capacities at the same time. An integrated digital display shows charging status and capacity indicators; the unit automatically detects defective or reverse‑inserted batteries and signals this by flashing all four capacity indicators.

Advantages

The unit offers completely independent control of every channel, allowing each slot to charge and report status separately. A power‑bank function enables the charger to supply 5 V/1000 mA from installed Li‑Ion cells for charging smartphones or tablets. The device includes reverse‑charging protection and supports worldwide AC input voltage for flexible use.

Suitable for

• Charging multiple AA/AAA Ni‑MH or Ni‑Cd cells simultaneously
• Charging Li‑Ion cells and using them as a 5 V power bank
• Workshops, hobbyists and home use where independent multi‑channel charging is needed

Key specifications

• Input: AC 100–240 V, 50/60 Hz; DC 12 V / 1.5 A
• Outputs: 4.2 V 500 mA ×4; 1000 mA ×2 (selectable channels as per device); 1.48 V 500 mA ×4
• USB output (power bank): 5 V, 1000 mA
• Dimensions: 157 × 93 × 35 mm
• Weight: 184 g
• Includes: Intelligent charger, power supply cable
• Warranty: 12 months
• Brand/Model: extra digital DV00DV2817

How to use

Connect the charger to mains using the supplied power cable or a 12 V DC source. Insert rechargeable batteries into the appropriate slots observing polarity. The charger will automatically detect battery type and start charging; monitor the digital display for individual channel status and capacity indicators. To use the power‑bank function, install charged Li‑Ion cells and connect the device to a smartphone or tablet via the USB port.

Recommendations

Use only compatible rechargeable batteries (Ni‑MH, Ni‑Cd, Li‑Ion) and observe polarity when inserting cells. Do not leave batteries unattended for extended periods; refer to the charger display for fault indications such as reversed or defective batteries. Use the device indoors and within the stated input voltage range.
