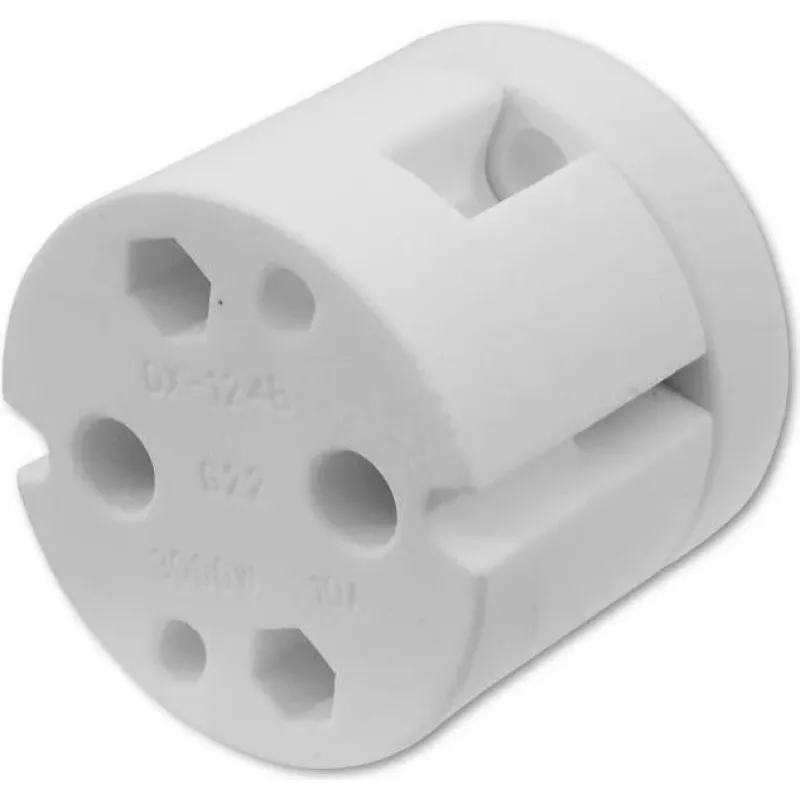

Casquilho de lâmpada OMNILUX DX-124B GY22 9450046C

When a GY22 bi-post lamp base needs a reliable, high-temperature connection in professional stage or studio lighting, the OMNILUX DX-124B socket provides a secure ceramic mount with screw terminals.

Who is it for

Lighting technicians and fixture builders working with HMI, MSR, and other discharge lamps that use a GY22 base. It suits replacement in existing fixtures or new assembly in professional lighting environments.

Main features

• Ceramic body withstands high temperatures from high-wattage discharge lamps.
• Two-pole screw terminal connection for secure wiring.
• Rated up to 250 V AC and 25 A, handling up to 5000 W.
• Screw mount for stable installation in lighting fixtures.

Specifications

• Lamp base compatibility: GY22 (bi-post)
• Material: ceramic
• Connection type: screw terminals
• Rated voltage: 250 V AC
• Rated current: 25 A
• Max power: 5000 W
• Number of poles: 2
• Mounting method: screw mount
• Temperature resistance: high
• Colour: white
• Compatibility: HMI, MSR, and other discharge lamps with GY22 base

Tips

Ensure the fixture is disconnected from power before replacing the socket. Check that the lamp pins align correctly with the socket contacts to avoid damage.
