CELEXON DK500 Câmara de documentos 1920 x 1080 60 páginas/min VGA HDMI scanner

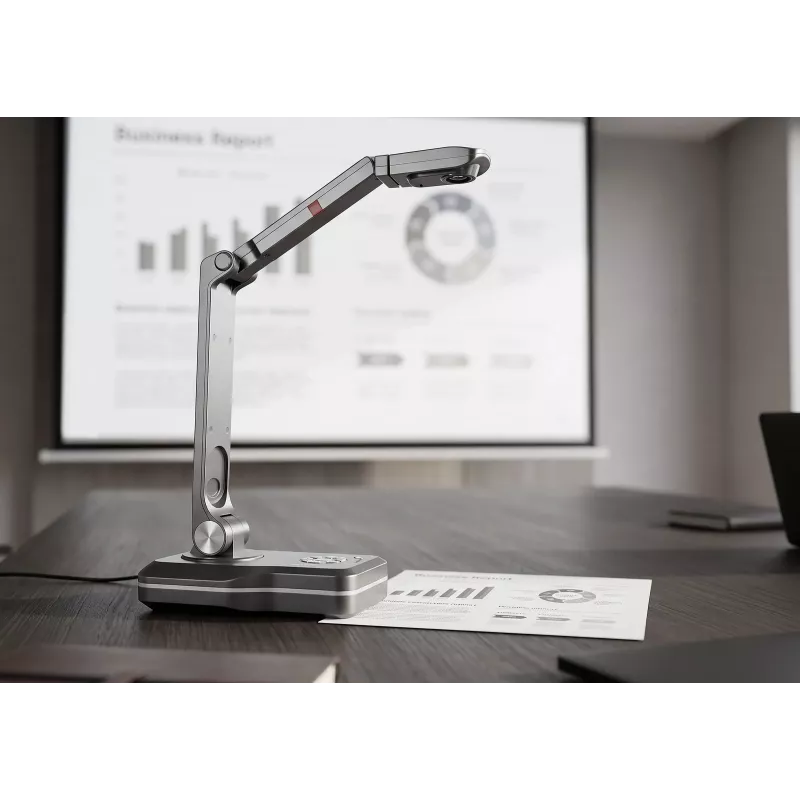

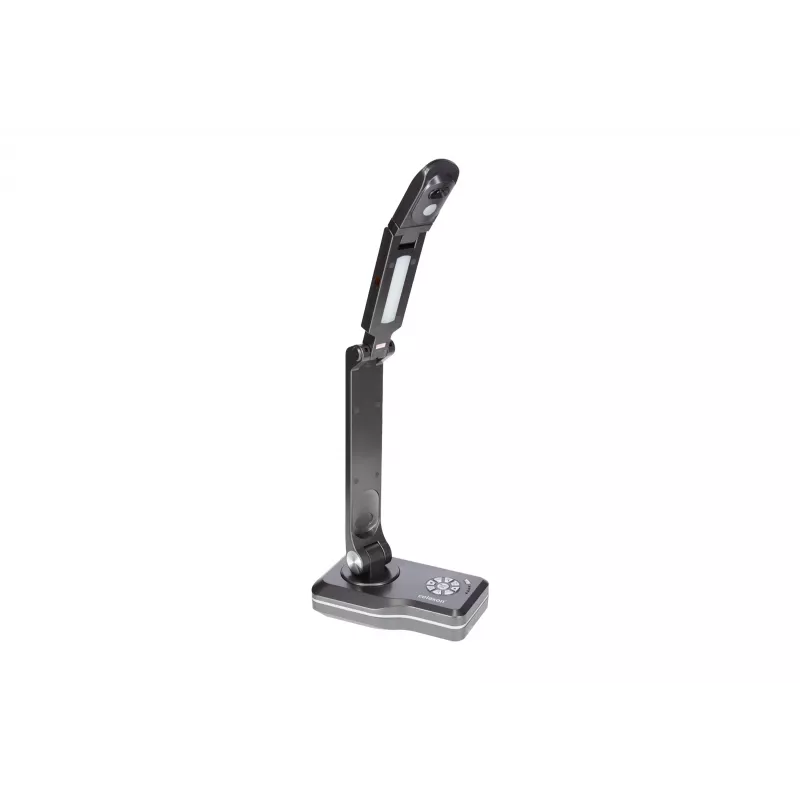

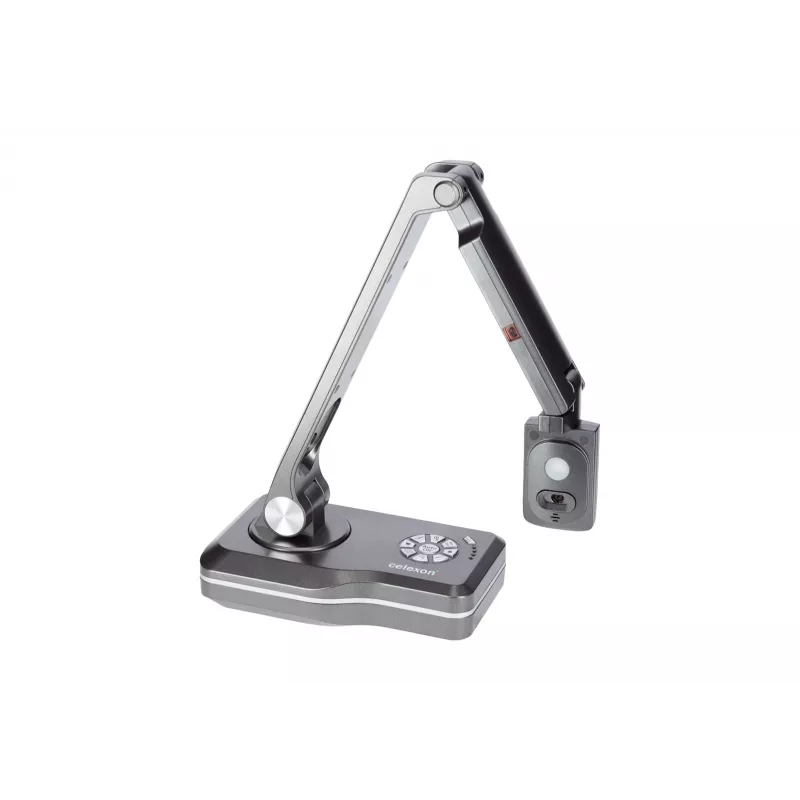

The CELEXON DK500 is a high-performance document camera designed for professional presentations, remote teaching, and video conferencing. It captures documents, objects, and 3D items in Full HD 1080p resolution at up to 30 frames per second, ensuring crisp and smooth image quality. With a 5-megapixel CMOS sensor, 8x digital zoom, and auto-focus, the DK500 delivers detailed visuals for any application. The integrated LED lamp provides consistent lighting, while the foldable arm and swivel head allow flexible positioning. Connect via HDMI or VGA to a projector or monitor, or use USB 2.0 to stream to a computer. The built-in microphone and OCR software enhance functionality, making it an all-in-one solution for education and business.

Advantages

Full HD 1080p output for clear presentations; 8x digital zoom for close-up details; auto-focus ensures sharp images; integrated LED lamp for consistent lighting; foldable and swivel design for easy storage and versatile angles; built-in microphone for audio capture; OCR software for text recognition; supports multiple output formats including JPEG, BMP, PNG, TIFF, and PDF.

Suitable for

• Classrooms and lecture halls
• Corporate meeting rooms
• Remote teaching and video conferencing
• Document archiving and digitization
• Museums and exhibitions

Key specifications

• Product Type: Document Camera / Visualizer
• Sensor: 5 MP CMOS
• Max. Output Resolution: 1920 x 1080 (Full HD)
• Frame Rate: 30 fps (at 1080p)
• Max. Document Size: A4 (297 x 210 mm)
• Zoom: 8x Digital
• Focus: Auto
• Light Source: Integrated LED
• Video Output: HDMI, VGA
• Data Interface: USB 2.0 Type B (PC), USB Type A (USB stick)
• Built-in Microphone: Yes
• Image Features: Rotation, Mirror, Split Screen, Freeze, Picture-in-Picture
• OCR: Yes (via software)
• Supported Formats: JPEG, BMP, PNG, TIFF, PDF
• Power Supply: DC 5V / 2A
• Compatible OS: Windows, macOS

Recommendations

For optimal performance, use the included USB cable to connect to a computer for live streaming and OCR functionality. The HDMI output is ideal for direct connection to a projector or monitor without a PC. Ensure adequate lighting for best image quality, although the integrated LED lamp helps in low-light conditions.
