Chapa de slot DeLOCK 90418 com 1 x SATA conector fêmea de 22 pinos externo

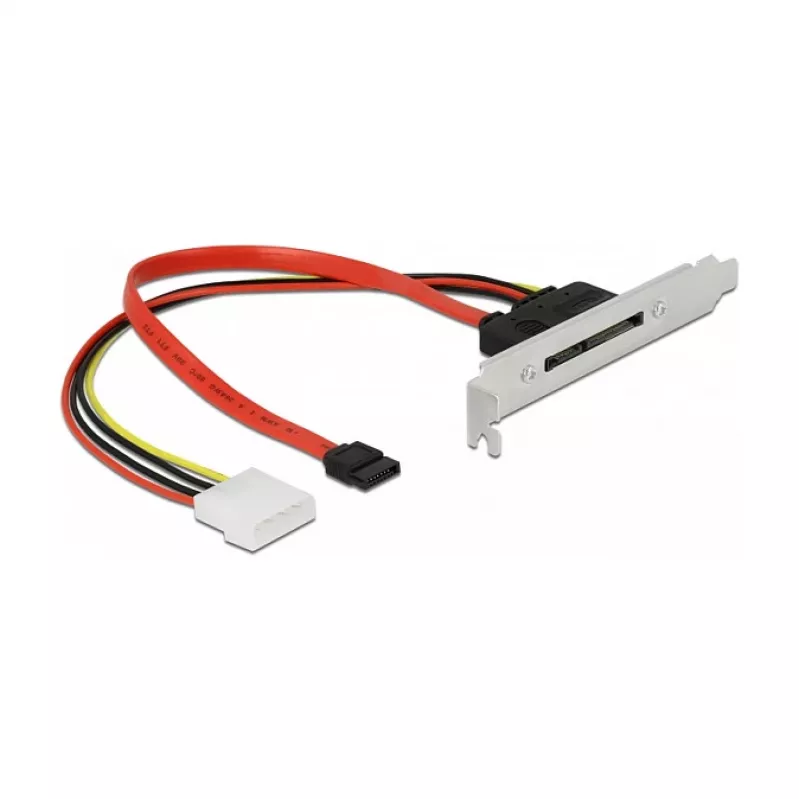

The DeLOCK slot bracket 90418 provides an external SATA 22‑pin plug, allowing an internal SATA connector to be routed to the outside of a PC. It is intended for use with external SATA devices via a cable and enables internal drives or card readers to be operated externally for service or temporary use. The bracket connects internally to the motherboard and the power supply so both the SATA data and power lines are available at the external 22‑pin connector.

Advantages

The bracket exposes an internal SATA 22‑pin connection externally without modifying the motherboard, supports SATA host interface and SATA output interface, and can be used with standard SATA cables and devices. It offers passive operation with no additional power consumption and is available in several colours to match PC interiors.

Suitable for

Key specifications

How to use

Install the slot bracket into an available expansion slot of the PC chassis. Connect the internal SATA data cable to an available SATA header on the motherboard and connect the SATA power cable to the power supply unit. Outside the case, plug an appropriate SATA cable (with compatible 22‑pin connector) between the bracket and the external SATA device. Ensure the PC is powered off when connecting internal cables and power on the system after all connections are secure.

Recommendations

Use a compatible SATA cable (for example item 84406) and confirm device compatibility before connecting. For service tasks, handle drives and card readers with care and back up important data prior to external operation.
