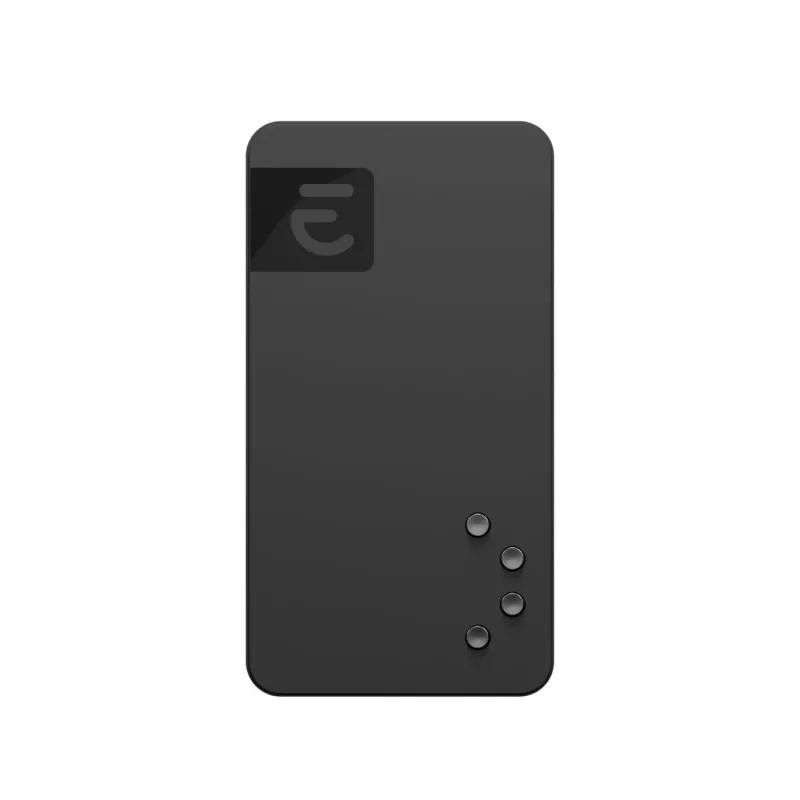

Charge Amps Perific MAX RJ12 RJ45 P-5030 — adaptador de comunicação com conectores RJ12 e RJ45

Charge Amps Perific MAX RJ12 RJ45 P-5030 — communication adapter with RJ12 and RJ45 ports provides wired interfaces for devices that require both serial-style and Ethernet connectivity. The adapter enables physical connection between controllers, charging stations and network equipment, supporting standard RJ12 and RJ45 cabling to carry data and control signals. It is intended for installations where dependable, hard-wired communications are needed for device integration and management.

Advantages

The adapter combines RJ12 and RJ45 ports in a compact unit, offering straightforward wired interfacing without the need for custom cabling or protocol converters. Its design focuses on compatibility with common cable types used in charging infrastructure and networked control systems, simplifying physical installation and reducing potential points of failure. As a passive communication interface, it provides predictable signal routing for serial and Ethernet connections.

Suitable for

• Connecting charging stations to external controllers or management systems
• Linking serial devices using RJ12 with network equipment via RJ45
• Integrating hardware in service cabinets and technical rooms where wired communication is required
• Replacement or extension of existing RJ12/RJ45 wired links in infrastructure

Key specifications

• Ports: RJ12 and RJ45 physical connectors
• Role: passive communication adapter for data and control signals
• Cabling: supports standard RJ12 and RJ45 cable types
• Intended use environment: equipment racks, charging infrastructure, controller installations

How to use

Install the adapter by connecting the appropriate RJ12 cable from the device requiring a serial-style interface and an RJ45 cable to the network or controller endpoint. Ensure cables are fully seated in their respective connectors and route cabling to avoid strain or interference. Verify device communication through system diagnostics or status indicators on connected equipment after physical installation. No software installation is typically required for the passive adapter itself, but ensure connected devices are configured for the expected communication settings.

Recommendations

Use shielded cabling where environmental noise or electromagnetic interference is a concern, and follow manufacturer guidance for cable length limits and installation practices. Confirm pinouts and signal assignments before connecting equipment to avoid mismatched wiring. For integration in critical systems, perform post-installation communication tests and document connections for maintenance.
