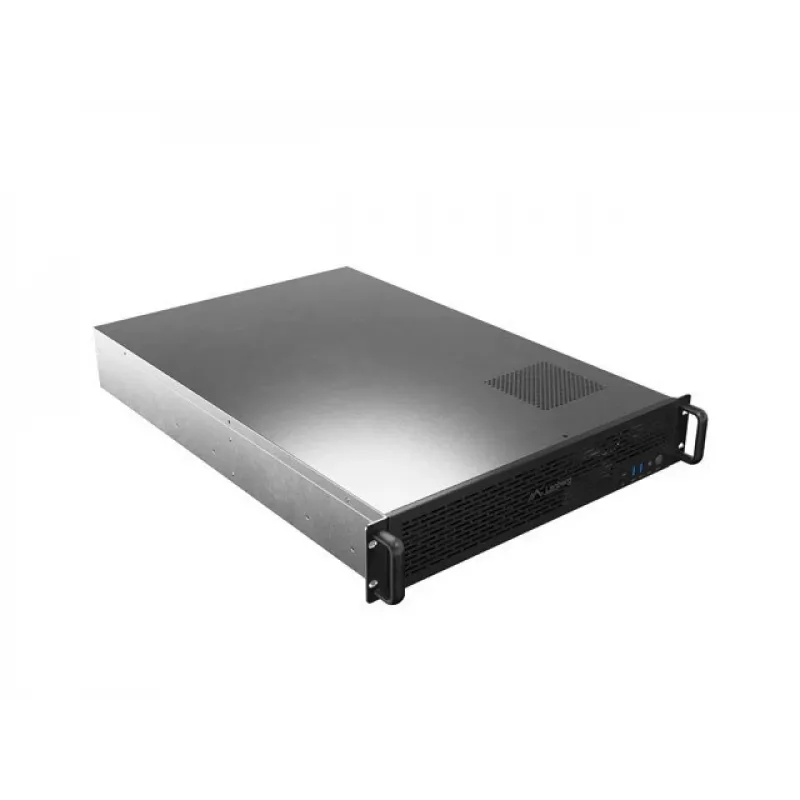

Chassis rack Lanberg SC01-6502-12B 2U preto 7 ventoinhas

Building a reliable server or high-performance workstation often means struggling with cramped interiors, poor airflow, and limited upgrade options. The Lanberg SC01-6502-12B solves these challenges with a spacious 2U rackmount design that accommodates a wide range of motherboards and components while keeping everything cool and secure. Its 650 mm depth provides ample room for full-size expansion cards and multiple storage drives, making it an excellent foundation for data centers, enterprise deployments, or advanced home labs.

Who is it for

This chassis is ideal for IT professionals, system integrators, and enthusiasts who need a dependable enclosure for server-class hardware. It supports E-ATX, ATX, Micro-ATX, Mini-ITX, and SSI CEB motherboards, so it can host everything from compact NAS builds to dual-socket Xeon or EPYC workstations. Whether you're managing a rack in a corporate server room or building a custom storage server, the SC01-6502-12B delivers the flexibility and cooling performance required for 24/7 operation.

Main features

• 2U rackmount form factor fits standard 19-inch racks, saving valuable floor space.
• Supports E-ATX, ATX, Micro-ATX, Mini-ITX, and SSI CEB motherboards for versatile builds.
• Up to seven 80 mm PWM fans (900–2600 RPM) ensure efficient airflow with low noise (26.1 dB).

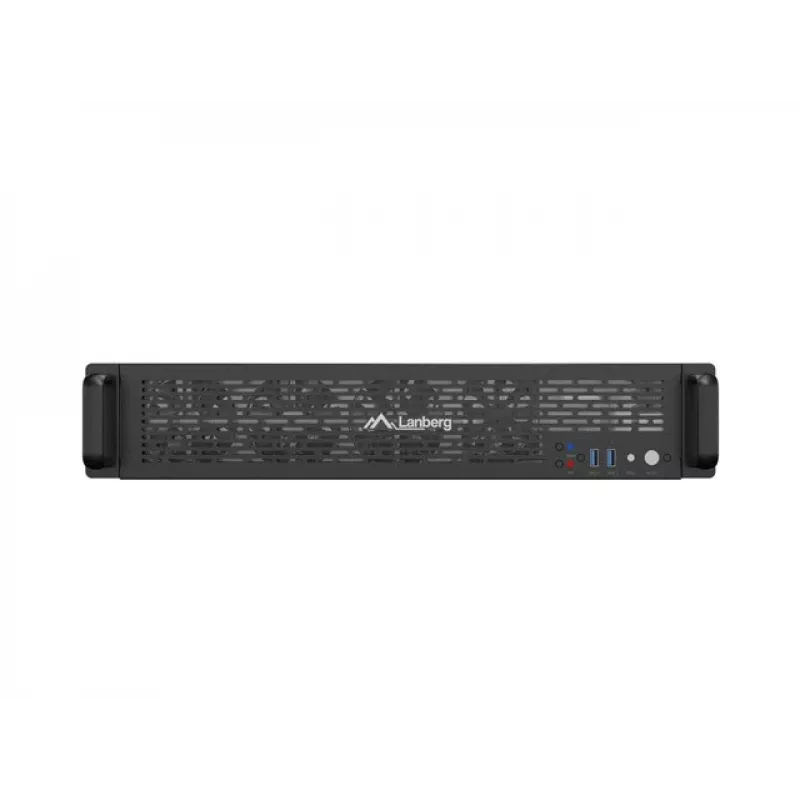

• Perforated front panel with replaceable dust filter keeps internal components clean.
• Front I/O includes two USB 3.0 Type-A ports, power button, and reset button for easy access.
• Accommodates multiple storage drives: two external 5.25" bays and six internal 3.5" bays.

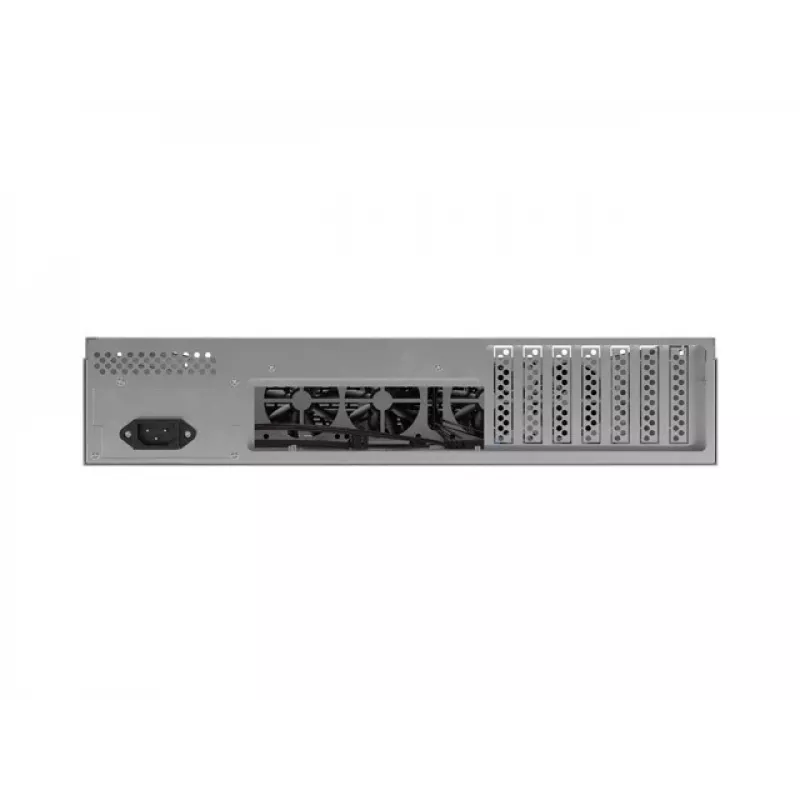

• Seven full-height expansion slots support high-performance PCI/PCIe cards.
• Durable 1.2 mm galvanized steel construction with lockable front door for security.

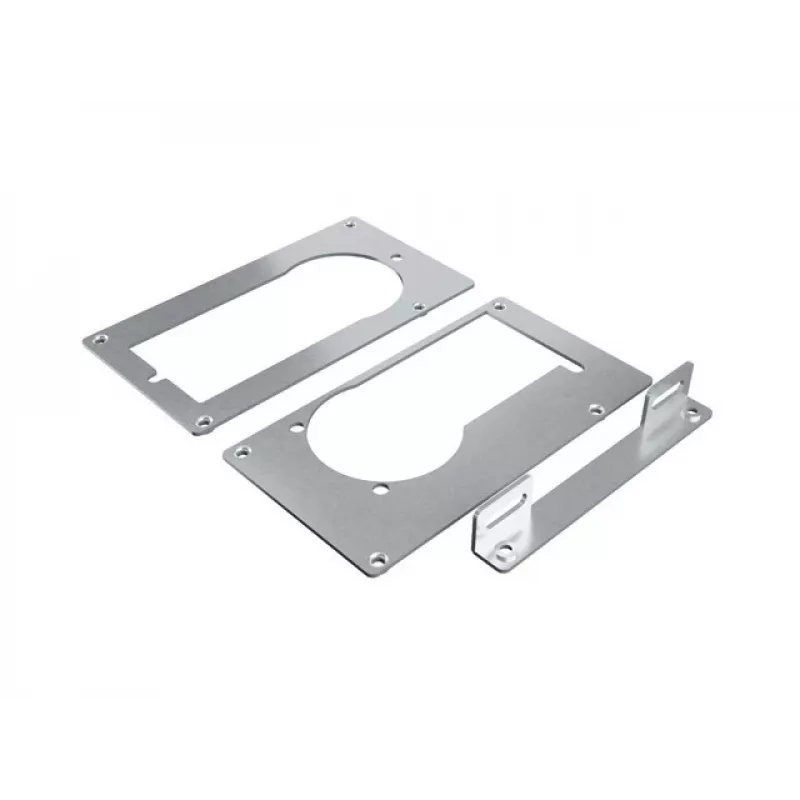

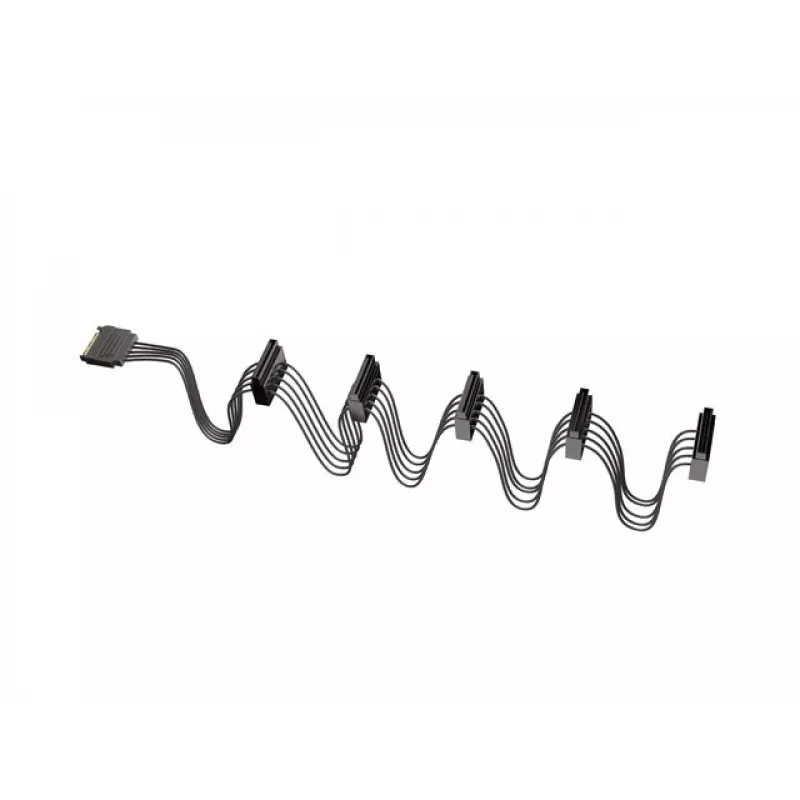

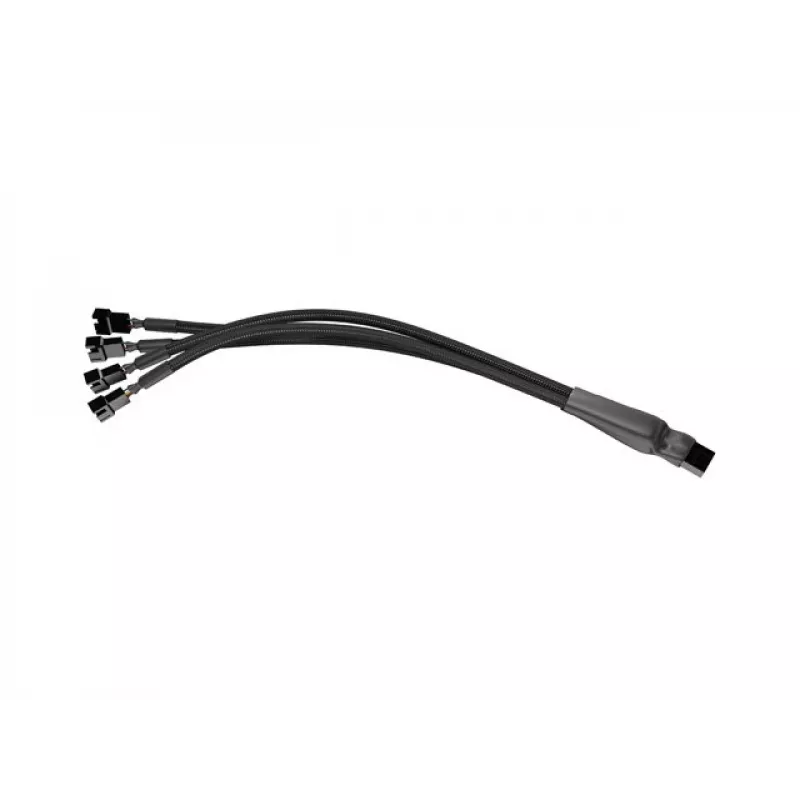

• Includes interchangeable adapters for Flex ATX, ATX, and SFX power supplies, plus PWM splitters.

Specifications

• Model: Lanberg SC01-6502-12B
• Form factor: 2U rackmount
• Dimensions (W x D x H): 430 x 650 x 89 mm
• Supported motherboards: E-ATX, ATX, Micro-ATX, Mini-ITX, SSI CEB
• Cooling: up to 7 x 80 mm PWM fans (900–2600 RPM, 50,000 hours life, 26.1 dB)
• Drive bays: 2 x 5.25" external, 6 x 3.5" internal
• Expansion slots: 7 full-height
• Front I/O: 2 x USB 3.0 Type-A, power button, reset button
• Power supply: not included (supports standard ATX PSU, adapters for Flex ATX and SFX)
• Material: 1.2 mm galvanized steel (SGCC)
• Rack compatibility: 19-inch standard rack
• Security: lockable front door, key lock for rack mounting

Tips

Pair this chassis with a high-efficiency ATX power supply (80 PLUS Gold or better) to reduce energy costs and heat output. For maximum cooling, populate all seven fan positions and use PWM splitters to manage fan curves based on system load. If you plan to use hot-swap drives, consider adding a backplane or hot-swap cage in the 5.25" bays. Always install the chassis in a well-ventilated rack and keep the front dust filter clean to maintain optimal airflow.
